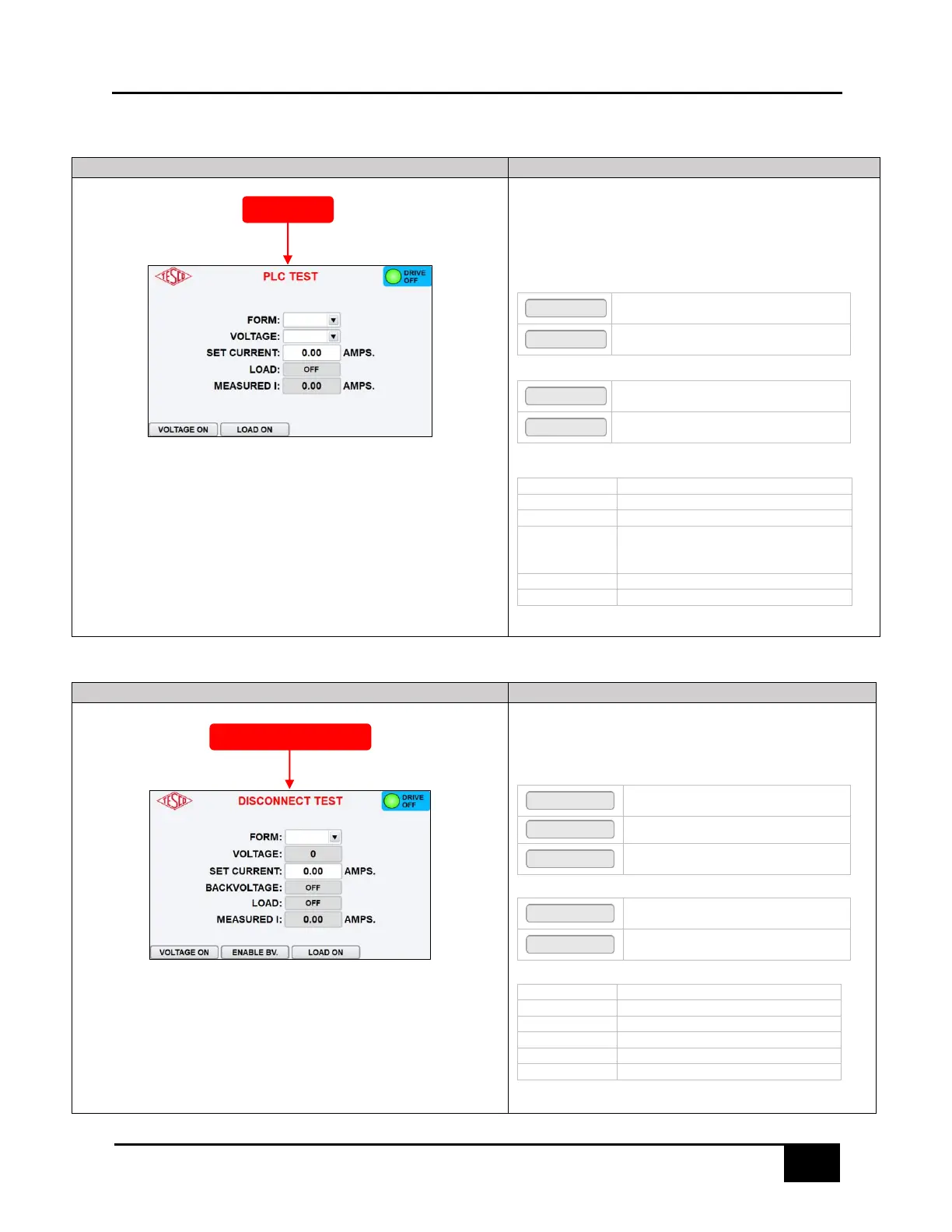

3.3.7 PLC TEST
SCREEN
DESCRIPTION
3.3.7.1 PLC TEST
PLC or Power Line Carrier test is for testing wired communication
systems such as TWACS, etc. It bypasses the internal voltage and
generation circuits.
KEYPAD & FUNCTION KEYS
Press to enable service voltage only to
socket
Press to enable service voltage and load
current to socket
When power is enabled, the control buttons adjust accordingly
Press to disable voltage and current to
socket
Press to disable current only to socket
Service voltage will remain enabled
DATA
FORM
Form number of the meter
VOLTAGE
Select voltage value
SET CURRENT
Current set by the user
LOAD
Displays either of the following status:
 OFF – no current is flowing
 ON – current is flowing
MEASURED V
Measured voltage
MEASURED I
Measured current
3.3.8 DISCONNECT TEST
SCREEN
DESCRIPTION
3.3.8.1 DISCONNECT TEST
Disconnect testing is used for testing meters with built-in disconnect
contacts. This test can only be performed on 1S, 2S, or 12S meters.
KEYPAD & FUNCTION KEYS
Enables voltage, back voltage, and
current
Enables back voltage
Applies back voltage and current to the
socket
When the buttons are turned on, the user can also switch them off:
Disables voltage, back voltage, and
current
Disables current only. Voltage remains
enabled.
DATA
FORM
Form number of the meter
VOLTAGE
Voltage applied to meter
SET CURRENT
Current set by the user
BACKVOLTAGE
Back voltage status: ON or OFF
LOAD
Load status: ON or OFF
MEASURED I
Measured current
VOLTAGE ON
LOAD ON
VOLTAGE OFF
LOAD OFF
VOLTAGE ON
ENABLE BV.
LOAD ON
VOLTAGE OFF
LOAD OFF
PLC TEST
DISCONNECT TEST
