TESTO 868 - Instrument Operating Elements

3 Description of the instrument
9
3.1 Instrument / operating elements
overview

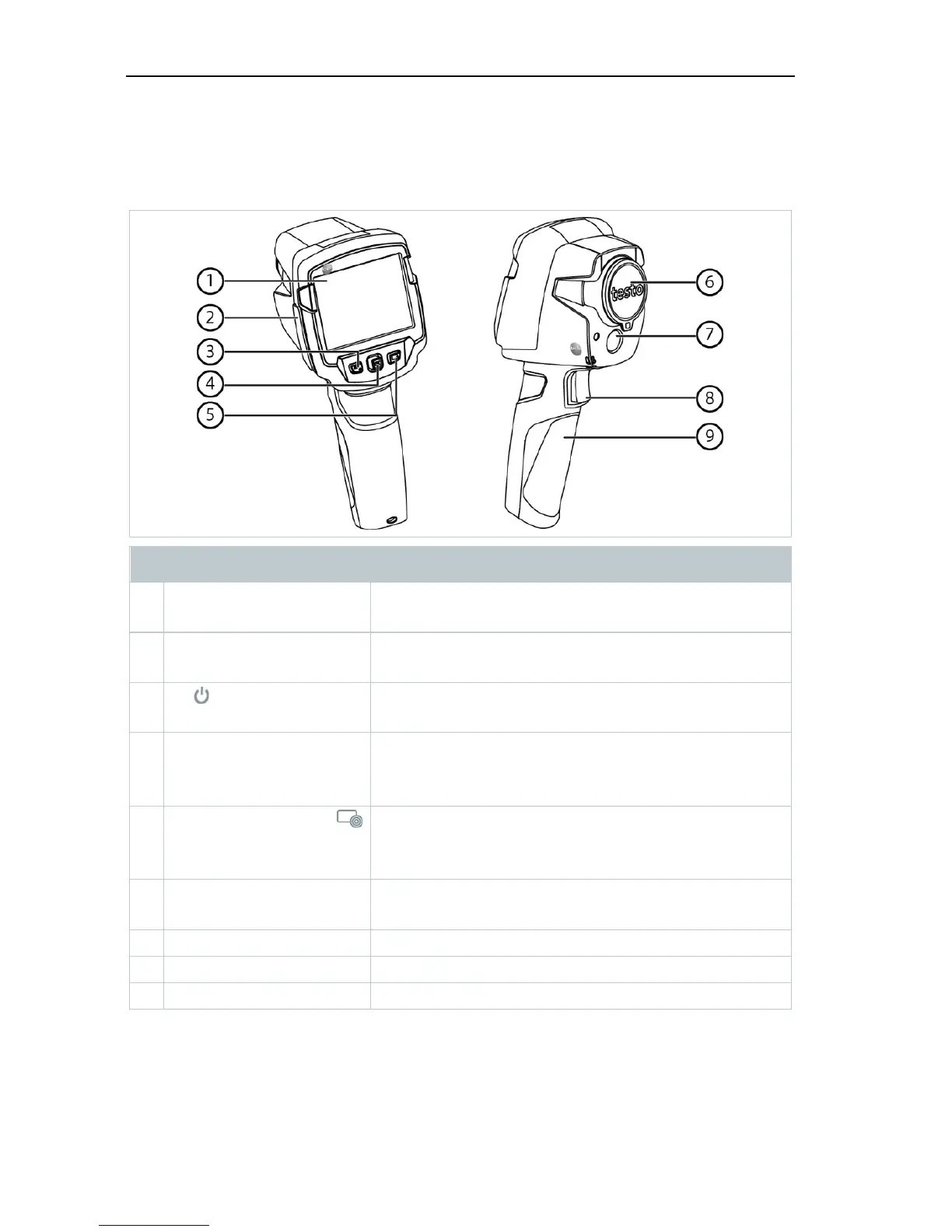

Element Function
1 Display Displays infrared and real images, menus and
functions
2 Interface terminal Contains micro USB interface for power supply
and connection to the computer
3 - key
- Esc key
- Switch camera on and off
- Cancel action
4 - OK key
- Joystick
- Open menu, select function, confirm setting
- Navigate within the menu, highlight function,
select colour palette
5 Quick select button Opens the function assigned to the quick select
button; the icon for the selected function is
displayed bottom right
6 Infrared camera lens;
protective cap
Takes infrared images; protects the lens
7 Digital camera Takes real images
8 Trigger Saves the displayed image
9 Battery compartment Contains the rechargeable battery
