CBLé System Guidebook 85
Connecting an Optional AC adapter
1. Press L
[
OFF
]
to turn the CBL off.
2. Connect one end of the approved adapter to the external power input
connection located on the right bottom edge of the CBL.
3. Plug the other end of the adapter into an electrical wall outlet.
4. Press P to turn the CBL on.
Approved AC Power Adapter
The CBL is designed to accept voltage input from an external AC-to-DC
power adapter that provides a regulated 6 Volts DC output when plugged
into an electrical wall outlet.
The Texas Instruments model AC-9201 power supply is the only AC-to-
DC power adapter approved for use with the CBL. The use of other
power adapters is strongly discouraged.

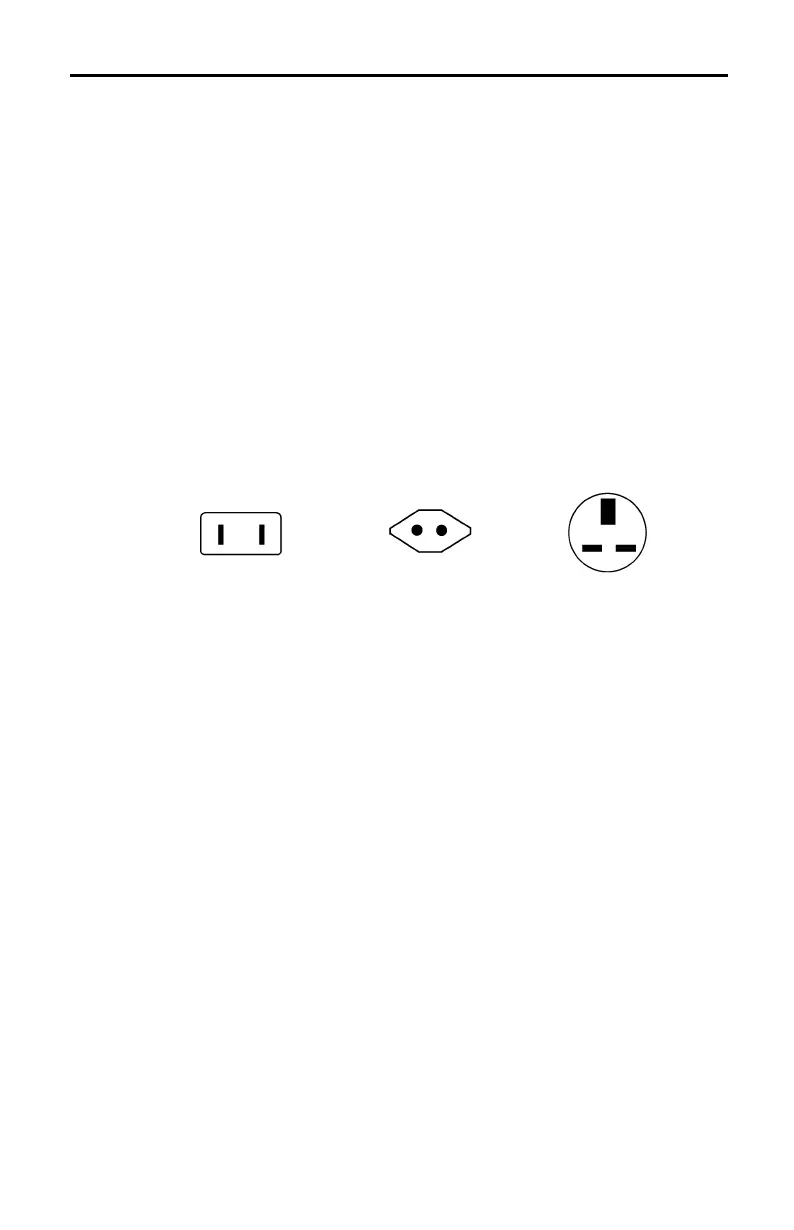

AC9201 AC9201E AC9201/UK
To order the adapter, call Customer Support at:
1-800-TI-CARES (1-800-842-2737)
Building an External Battery Adapter Cable
To build an external battery adapter cable, you will need a connector, 16-
gauge wire (about 6 feet), and two alligator clips.
Note: At the time of this printing, the Radio Shack Coaxial DC Power
Plug #274-1569 (5.5mm O.D., 2.1mm I.D.) or equivalent is an acceptable
connector.
1. Identify one 3-foot length of the wire as black (ground) and solder it
to the insulated pin of the connector.
2. Identify the other 3-foot length of wire as red and solder it to the
outside of the connector.
3. Connect an alligator clip to the open end of each wire.
Connecting an External 6-Volt Battery
1. Press L
[
OFF
]
to turn the CBL off.
2. Connect one end of the external battery adapter to the external
power input connection located on the right bottom edge of the CBL.
3. Connect the red lead to the positive (+) terminal of the battery.
Connect the black lead to the negative (-) terminal of the battery.
4. Press P to turn the CBL on.
