SWRU270
Page 22 of 28

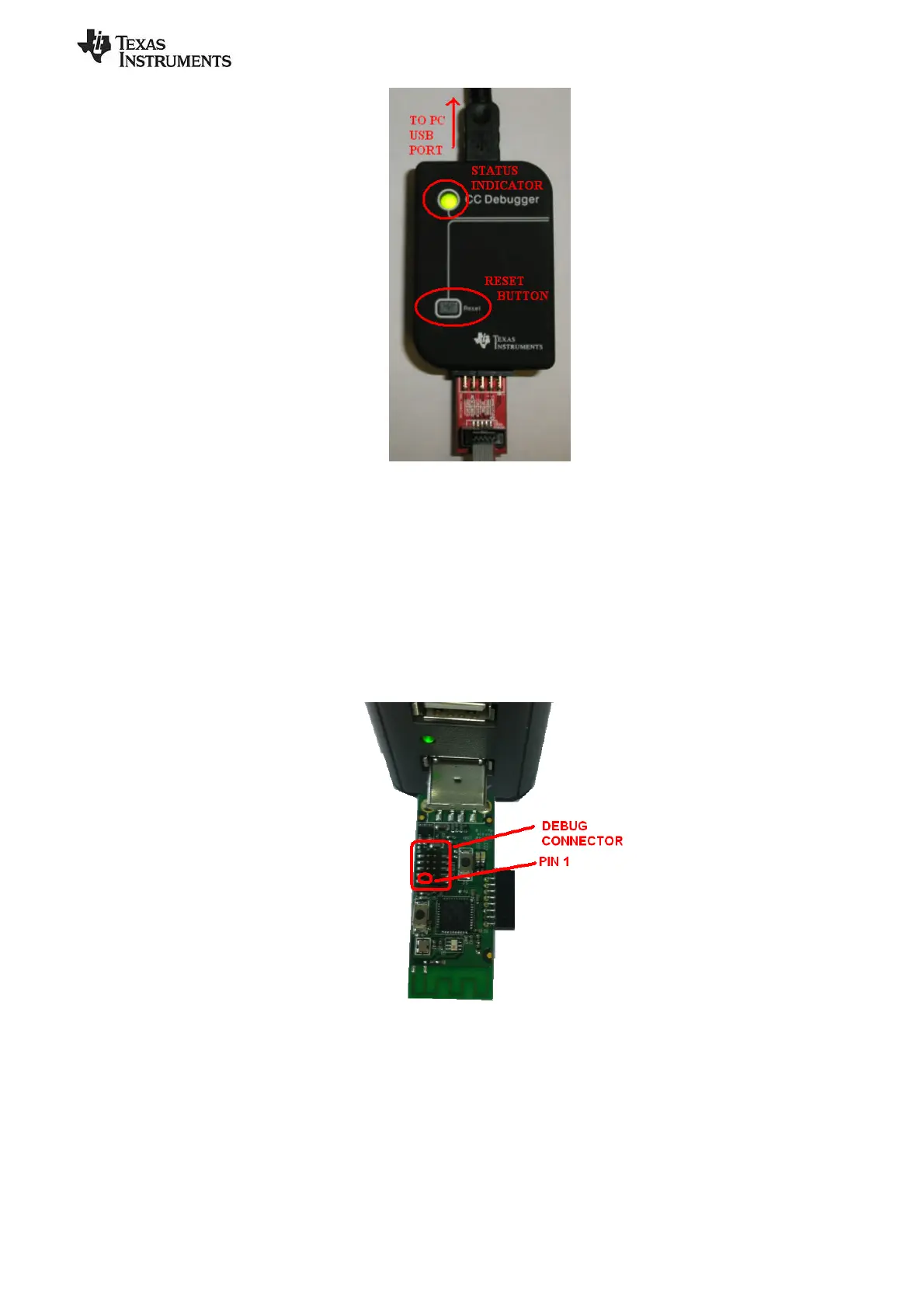

Figure 31
Once the CC Debugger is set up with the status indicator LED showing green, you are ready to either read
or write a hex file from the board, or to begin debugging a project using IAR.
5.2 Hardware Setup for USB Dongle
The setup process for flashing the USB Dongle is very similar to the process when flashing the keyfob.
First, plug the USB Dongle into a PC USB port (or a USB hub):
Figure 32
Connect the CC Debugger to the USB Dongle as shown below. Be sure that the ribbon cable is oriented
properly, with the red stripe connected to pin 1:
