Hardware Setup for USB Dongle

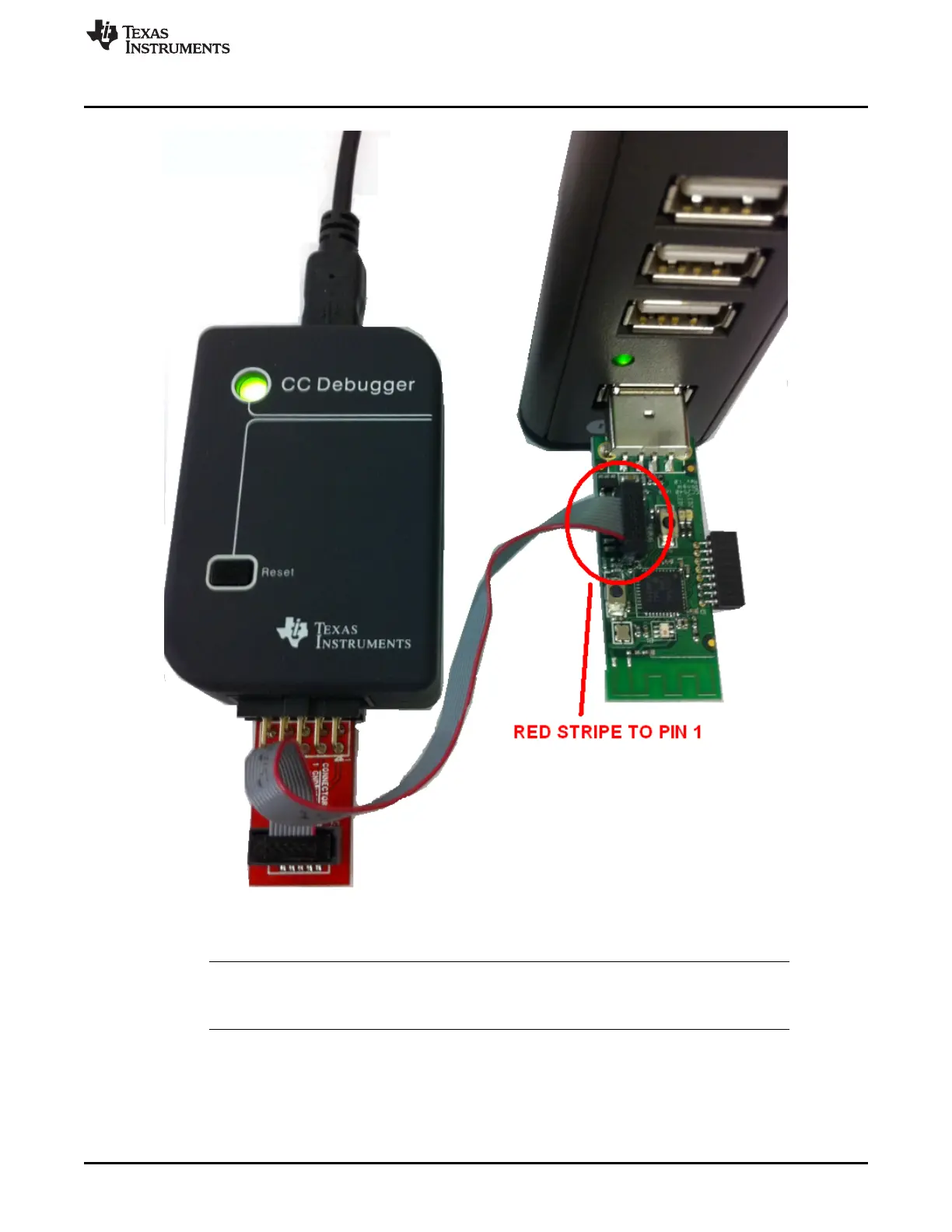

Figure 6-2. CC2540 USB Dongle Connected to CC Debugger
NOTE: The ribbon cable must be oriented properly, with the red stripe connected to pin 1 as shown
in Figure 6-2. The USB dongle also must be powered to program, and should be placed in a
USB port before programming with CC debugger.
2. Connect the CC debugger to the PC USB port.
