MSP Debuggers
(4)
Enable new device support by in field firmware updates
5.6 MSP-FET Stand-Alone Debug Probe
The MSP-FET (see Figure 10 and Figure 11) is a powerful debug probe for application development
supporting all MSP430 microcontrollers.
The MSP-FET provides a USB interface to program and debug the MSP430 devices in-system through
the JTAG interface or the pin-saving Spy-Bi-Wire (2-wire JTAG) protocol. Furthermore, the USB interface
can be used for Backchannel UART and MSP target BSL communication. UART BSL and I
2
C BSL
communication modes are supported.
The MSP-FET development tool supports development with all MSP430 devices and is designed for use
with PCBs that contain MSP430 devices; for example, the MSP430 target socket boards.

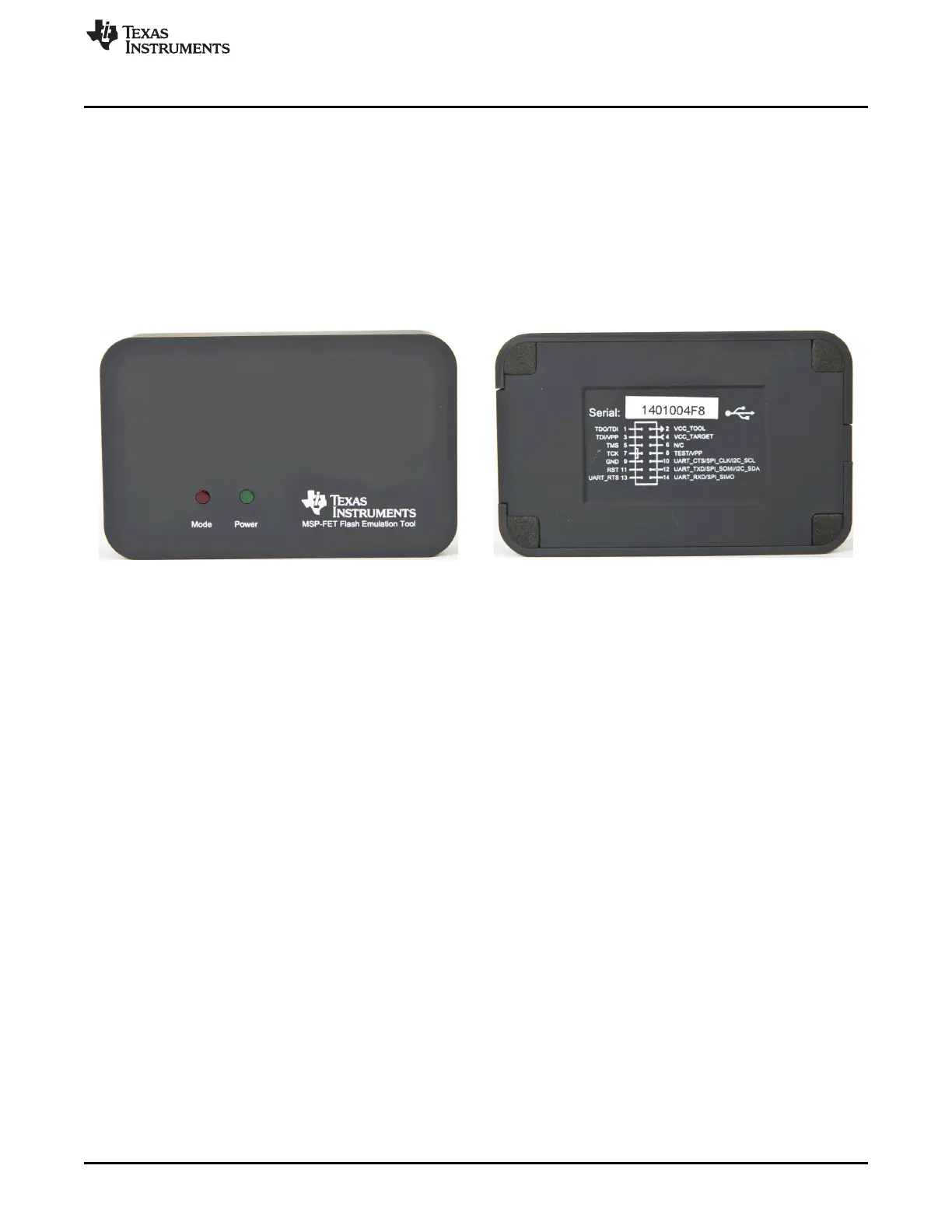

Figure 10. MSP-FET Top View Figure 11. MSP-FET Bottom View
5.6.1 General Features
The MSP-FET debug probe includes the following features:
• MSP-FET is supported since:
– CCS v6.0.0
– IAR EW430 v5.60.7 and v6.10.1
• Operating systems: OS X, Linux, Windows
• Software configurable supply voltage between 1.8 V and 3.6 V at 100 mA
• External voltage detection
• Supports JTAG security fuse blow to disable debugging
• Supports all MSP430 boards with JTAG header
• Supports both JTAG and Spy-Bi-Wire (2-wire JTAG) debug protocols
• EnergyTrace (MSP430 and MSP432), EnergyTrace+ (MSP432 only), and EnergyTrace++ (MSP430
only) support
• Software breakpoints in Flash, FRAM, and RAM
• MSPDS application backchannel UART included
• Target BSL communication mode available
• Flash and FRAM programming support
• Debug probe firmware field update is supported
(4)
• Supports all MSP432P401x boards with ARM 20-pin and ARM 10-pin connector using the MSP432
Adapter for MSP-FET
• Supports JTAG and SWD MSP432 debug protocols
