MSP Debuggers
(1)
Spy-Bi-Wire (2-wire JTAG) is supported
5.10 MSP-FET430PIF
The MSP-FET430PIF is a parallel port interface that is used to program and debug MSP430 boards
through the JTAG interface. This interface uses a parallel PC port to communicate with the IDE (CCS,
EW430, or the MSP Flasher) running on the PC. The interface uses the standard 14-pin JTAG header to
communicate with the MSP430 device using the standard JTAG protocol.
The flash memory can be erased and programmed in seconds with only a few keystrokes, and because
the MSP430 flash is extremely low power, no external power supply is required. The tool has an
integrated software environment and connects directly to the PC which greatly simplifies the setup and
use of the tool.

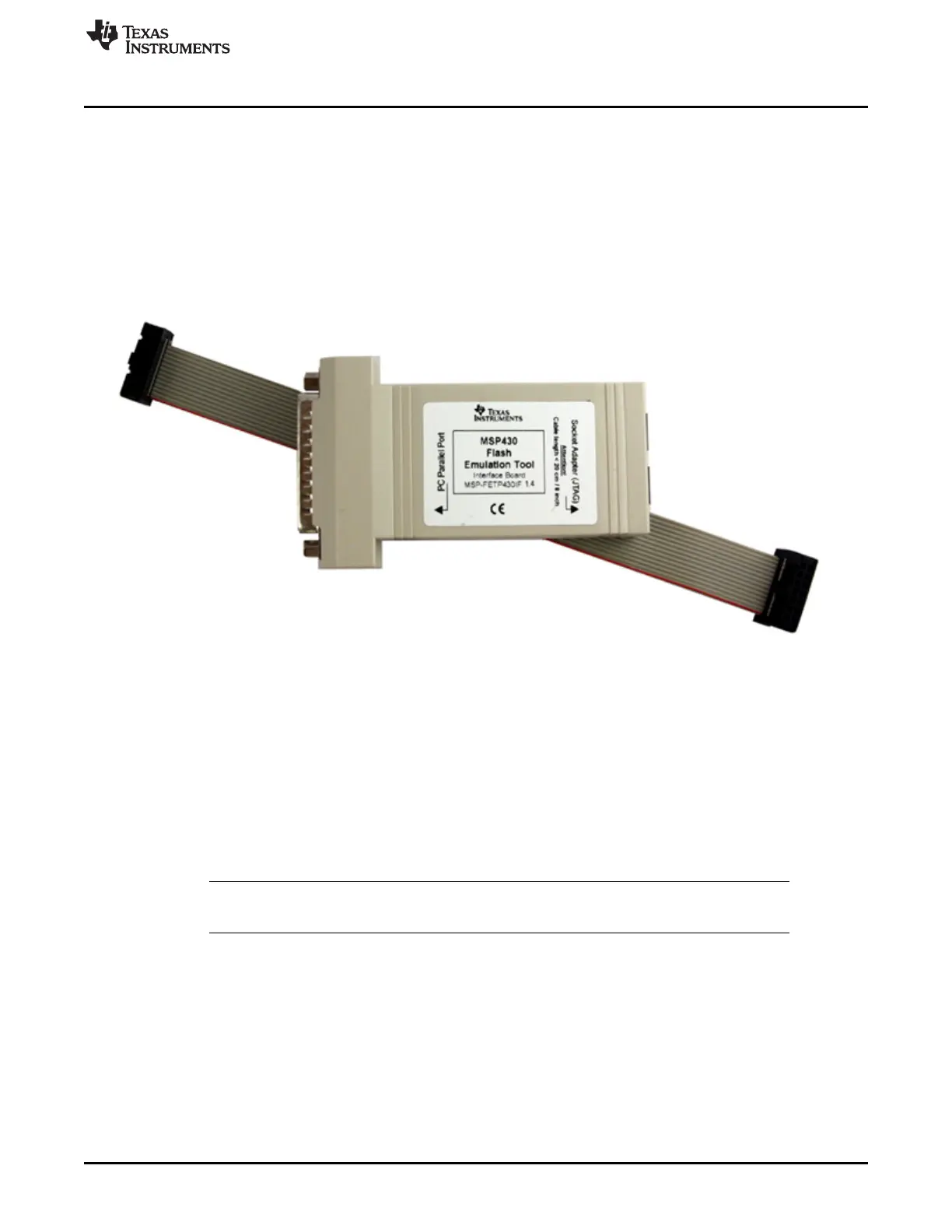

Figure 43. MSP-FET430PIF
5.10.1 General Features
• Operating systems: Windows XP
• Fixed supply voltage between 3.3 V at 25 mA
• Software Breakpoint in Flash, FRAM, and RAM support
• Flash and FRAM programming support
• Supports JTAG protocol only
(1)
NOTE: The MSP-FET430PIF is for legacy device support only. This emulation tool does not support
any devices released after 2011.
