5.3.3.11 Configuration ID 10: Thunderbolt Bus-Powered Device

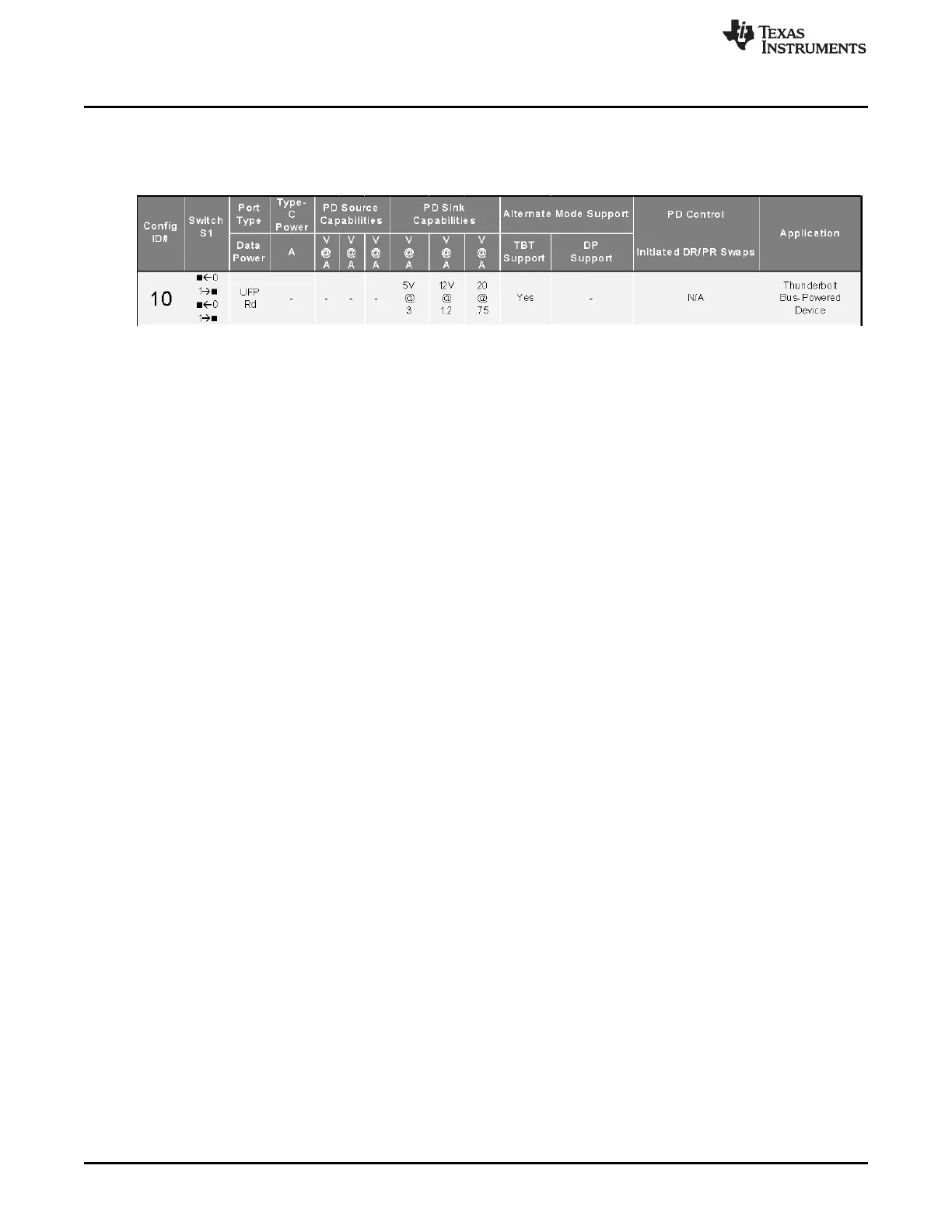

Table 13. Configuration ID 10
5.3.3.11.1 Overview
The TPS65982-EVM will boot up and initialize into configuration ID 10 when the DIP switches [B1] and
[B3] on switch bank S1 are pushed to the right-hand side and [B0] and [B2] on switch bank S1 is pushed
to the left-hand side. Configuration ID 10 is designed to model Thunderbolt Bus Powered Device.
A TPS65982-EVM configured as a Thunderbolt device is able to enter the Thunderbolt alternate mode.
5.3.3.11.2 Source Capabilities
This configuration is not capable of providing power.
5.3.3.11.3 Sink Capabilities
This configuration is capable of negotiating a PD contract to sink 5 V at 3 A, 12 V at 1.2 A, and 20 V at
0.75 A.
5.3.3.11.4 Video Capabilities
This configuration is capable of negotiating a USB PD Thunderbolt Alternate Mode contract for
video+data.
5.3.3.11.5 Ideal Connections
This configuration pairs ideally with a TPS65982-EVM using configuration ID 2 and 8 to enter the
Thunderbolt alternate mode.
24
TPS65982 Evaluation Module SLVUAF8C–June 2015–Revised November 2015
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
