Firmware Installation
www.ti.com
9 Firmware Installation
The following procedure is intended to describe how to flash the WQ2580 IC of the TPS65982-EVM with
firmware (1024kB .bin file) using an Aardvark SPI programmer by connecting to the SPI pins of header J2.
The following material needed to flash the TPS65982-EVM:
• TPS65982-EVM
• Aardvark SPI Programmer with accompanying USB cable
• Dell power adapter
• 1024kB .bin FW file, example “TPS65982-EVM_Flash-Image_RTM.bin”
9.1 Writing a Flash Image Using an Aardvark SPI Programmer
In the following seven steps there are images indicating additional information. Please use the legend in
Figure 13 to understand what image corresponds to what action.

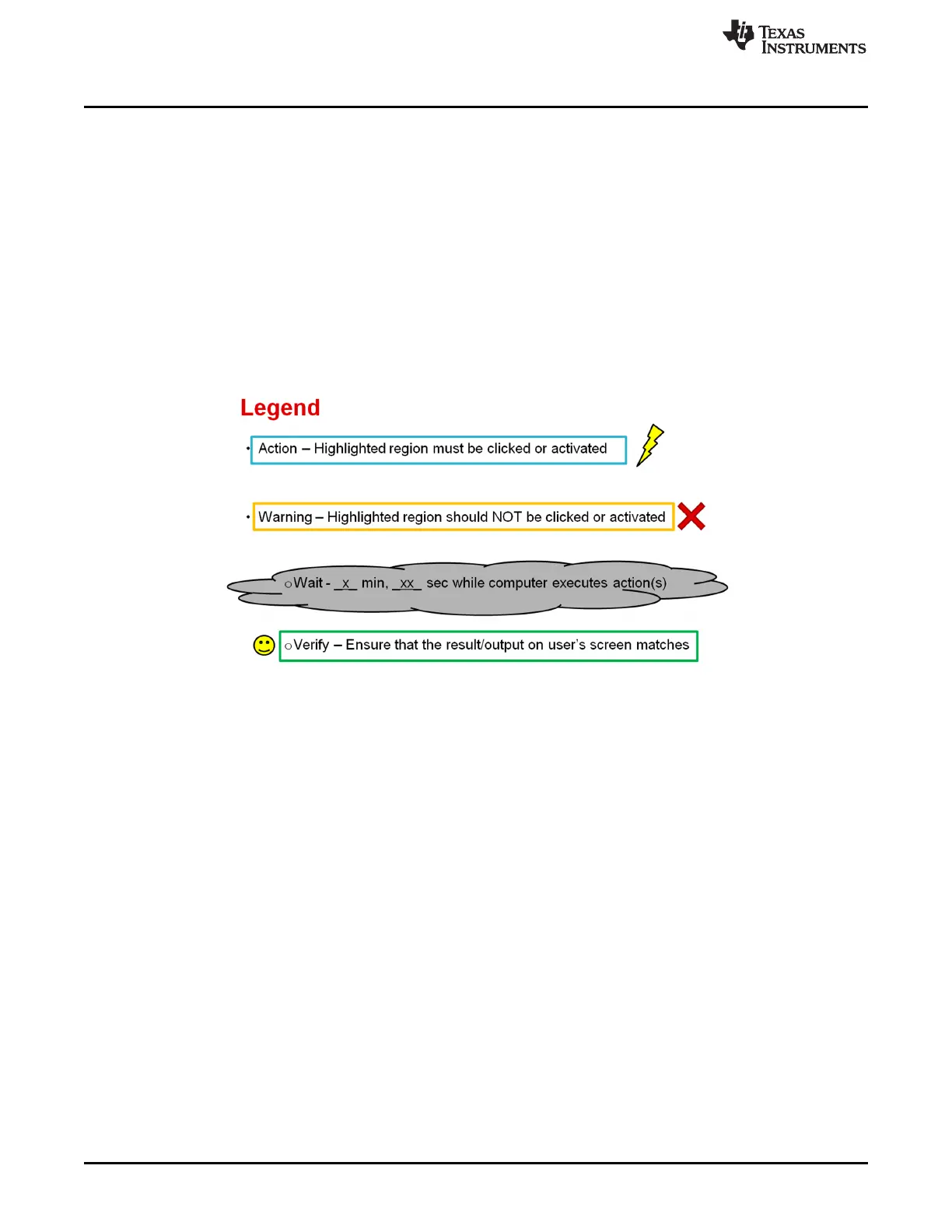

Figure 13. Legend
38
TPS65982 Evaluation Module SLVUAF8C–June 2015–Revised November 2015
Submit Documentation Feedback
Copyright © 2015, Texas Instruments Incorporated
