5.3.3.13 Configuration ID 12: Mid-Power Charger Adapter

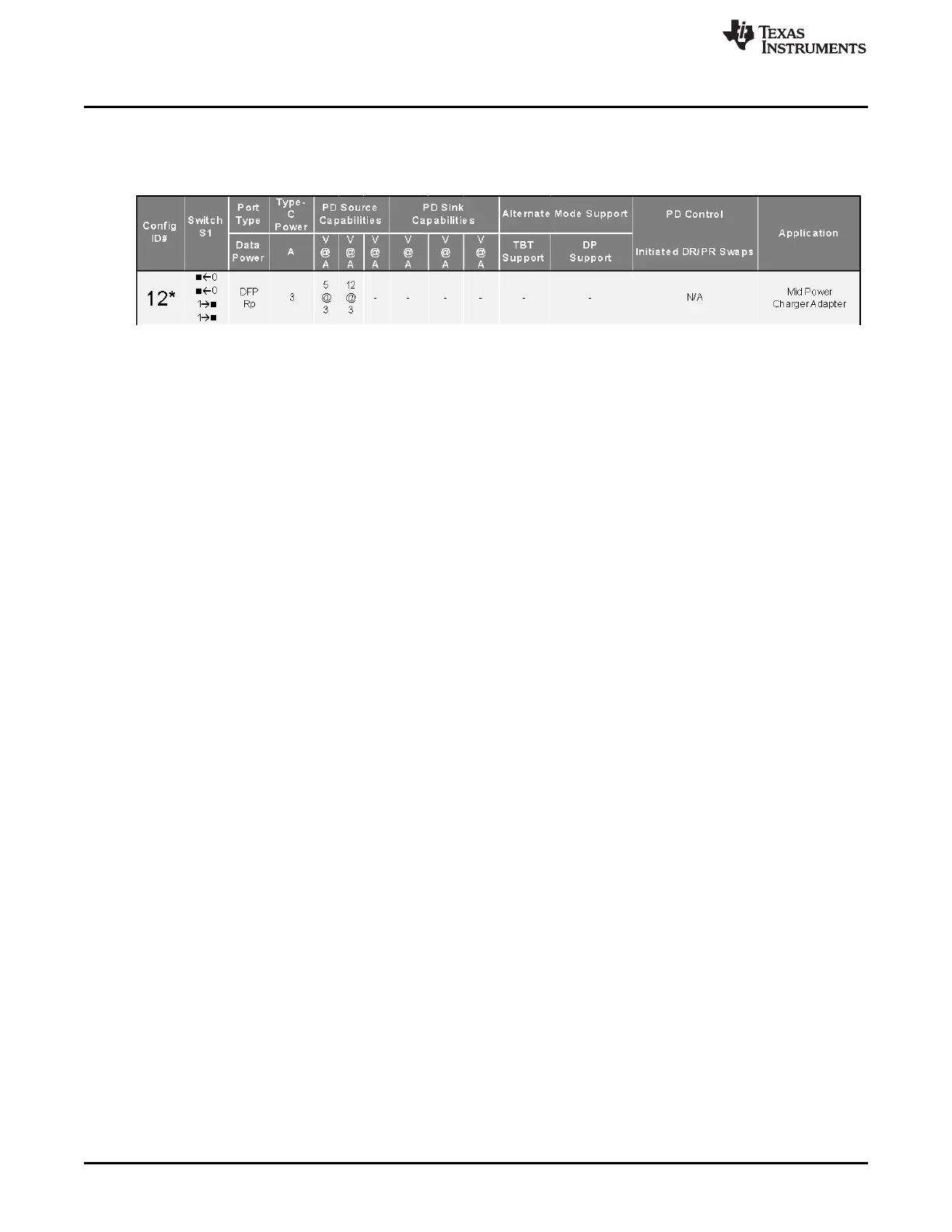

Table 15. Configuration ID 12
5.3.3.13.1 Overview
The TPS65982-EVM will boot up and initialize into configuration ID 12 when [B0] and [B1] on switch bank
S1 is pushed to the left-hand side and [B2] and [B3] on switch bank S1 is pushed to the right-hand side.
Configuration ID 12 is designed to model a charger-adapter application.
A TPS65982-EVM configured as a charger is capable of providing (sourcing) power only. A fully-featured
Type-C port on a charger can be capable of USB 2.0 and USB3.1 data, which is also emulated by this
EVM configuration.
5.3.3.13.2 Source Capabilities
This configuration is capable of negotiating PD contracts to source 5 V at 3 A through the PP_5V0 internal
FET path, 12 V at 3 A through the PP_HV internal FET path
5.3.3.13.3 Sink Capabilities
This configuration is designed to be a provider (source) of power only, and therefore does not have any
sink capabilities.
5.3.3.13.4 Video Capabilities
This configuration is capable of USB 2.0 and USB 3.1 data only, and therefore does not have any video
capabilities.
5.3.3.13.5 Ideal Connections
This configuration pairs ideally with a TPS65982-EVM using configuration ID 7 for providing power and
enters USB2.0 and 3.1 mode for data by default. This configuration can be used with any of the other
configurations which are capable of sinking power.
26
