www.ti.com Setup
5.3.3.14 Configuration ID 13: Type-C UFP Only

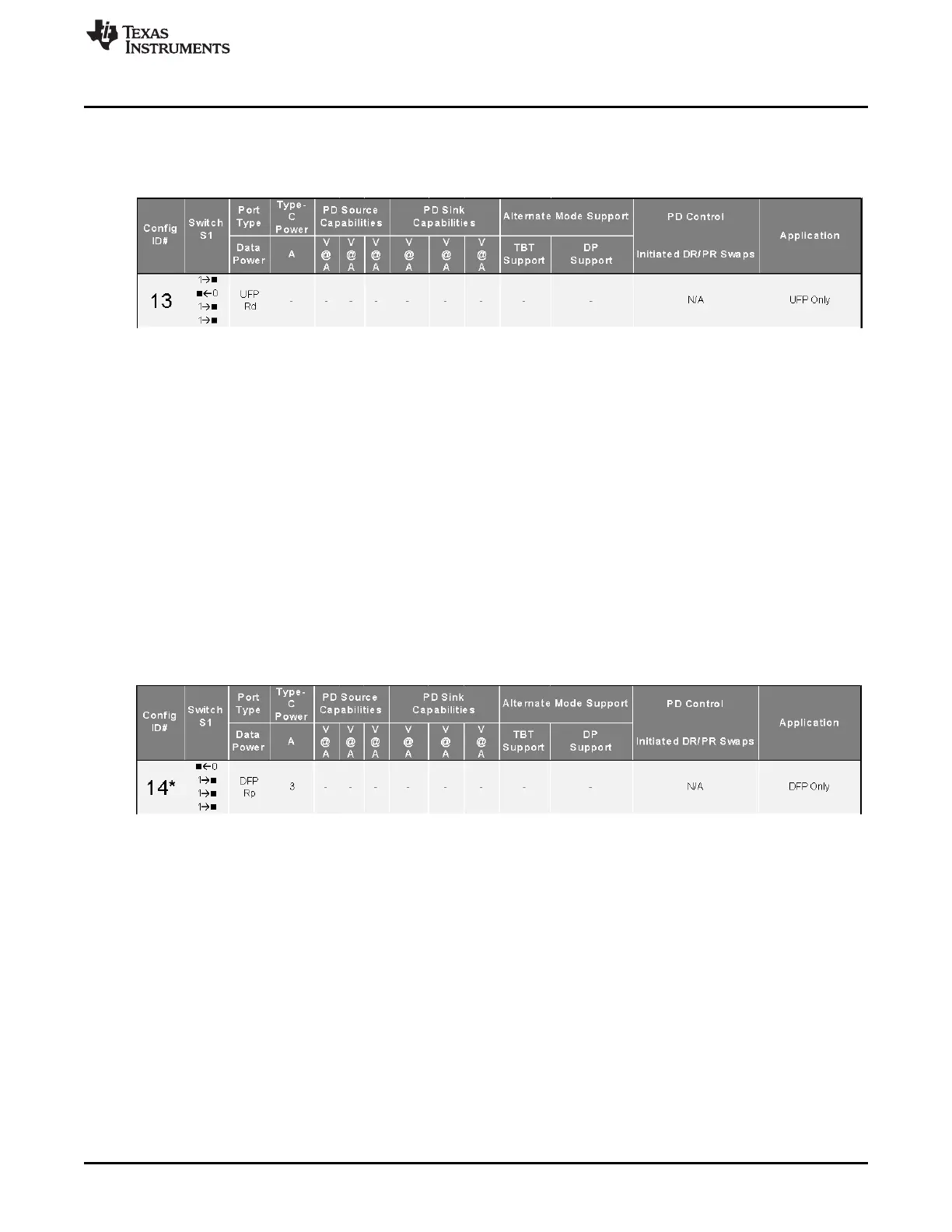

Table 16. Configuration ID 13
5.3.3.14.1 Overview
The TPS65982-EVM will boot up and initialize into configuration ID 13 when [B1] on switch bank S1 is
pushed to the left-hand side and [B0], [B2], and [B3] on switch bank S1 is pushed to the right-hand side.
Configuration ID 13 is designed to model Type-C UFP only device.
5.3.3.14.2 Source Capabilities
This configuration is capable not capable of providing power.
5.3.3.14.3 Sink Capabilities
This configuration is designed to only sink Type-C power (5 V).
5.3.3.15 Configuration ID 14: Type-C DFP Only
Table 17. Configuration ID 14
5.3.3.15.1 Overview
The TPS65982-EVM will boot up and initialize into configuration ID 14 when [B0] on switch bank S1 is
pushed to the left-hand side and [B1], [B2], and [B3] on switch bank S1 is pushed to the right-hand side.
Configuration ID 14 is designed to model Type-C DFP only device.
5.3.3.15.2 Source Capabilities
This configuration is capable of providing Type-C power (5 V at 3 A).
5.3.3.15.3 Sink Capabilities
This configuration is not capable of sinking power
