Installation and Maintenance
Service Manual
Step Procedure

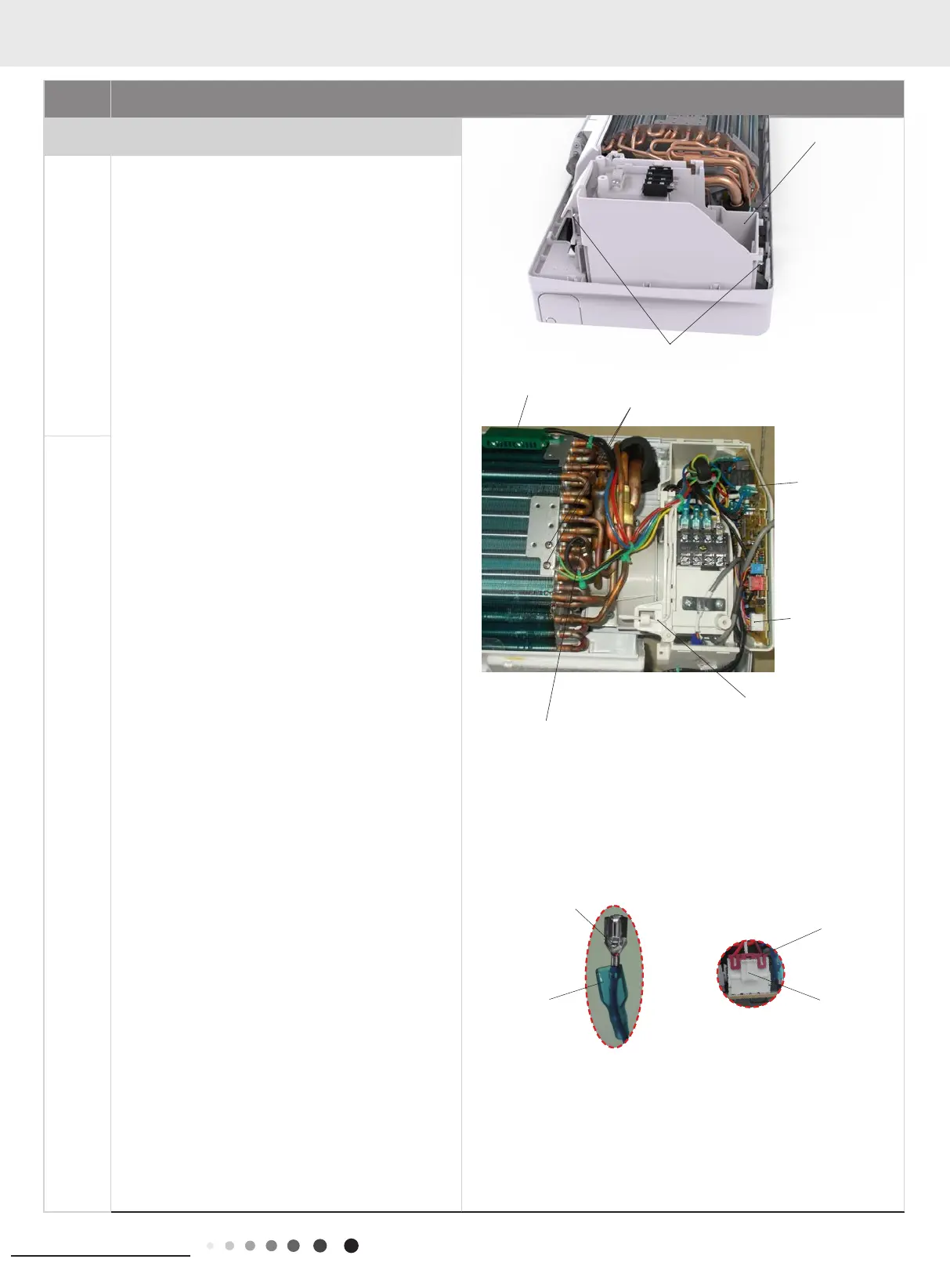

6.Remove electric box assy
a
Remove the screw xing electric box assy.
①
Cut off the wire binder and pull out the
indoor tube temperature sensor.
②
Screw off one grounding screw.
③
Remove the wiring terminals of motor, cold plasma
generator and stepping motor.
④
Remove the electric box assy.
⑤
Screw off the screws that are locking each.
Instruction:Some wiring terminal of this products is with
lock catch and other devices.The pulling method is as
below:
1.Remove the soft sheath for some terminals at first,
hold the circlip and then pull out the terminals,
2.Pull out the holder for some terminals at rst(holder
is not available for some wiring terminal).hold the
connector and then pull the terminal.
b
Grounding screws
Indoor tube
temperature sensor
Indoor room
temperature sensor
Electric box assy
Main board
Wiring terminal
of stepping motor
Screws
Circlip
Holder
Connector
Soft sheath
Cold Plasma Generator
