Thecus N4200 User Manual

11
 Solid blue: Device is powered on
LCD Display  Displays current system status and messages (Update time: 60
seconds).
Down Button ▼  Push to scroll DOWN when using the LCD display
Up Button ▲  Push to scroll UP when using the LCD display
Enter Button   Push to confirm information entered into the LCD display
Escape Button ESC
 Push to leave the current LCD menu
N4200 series:

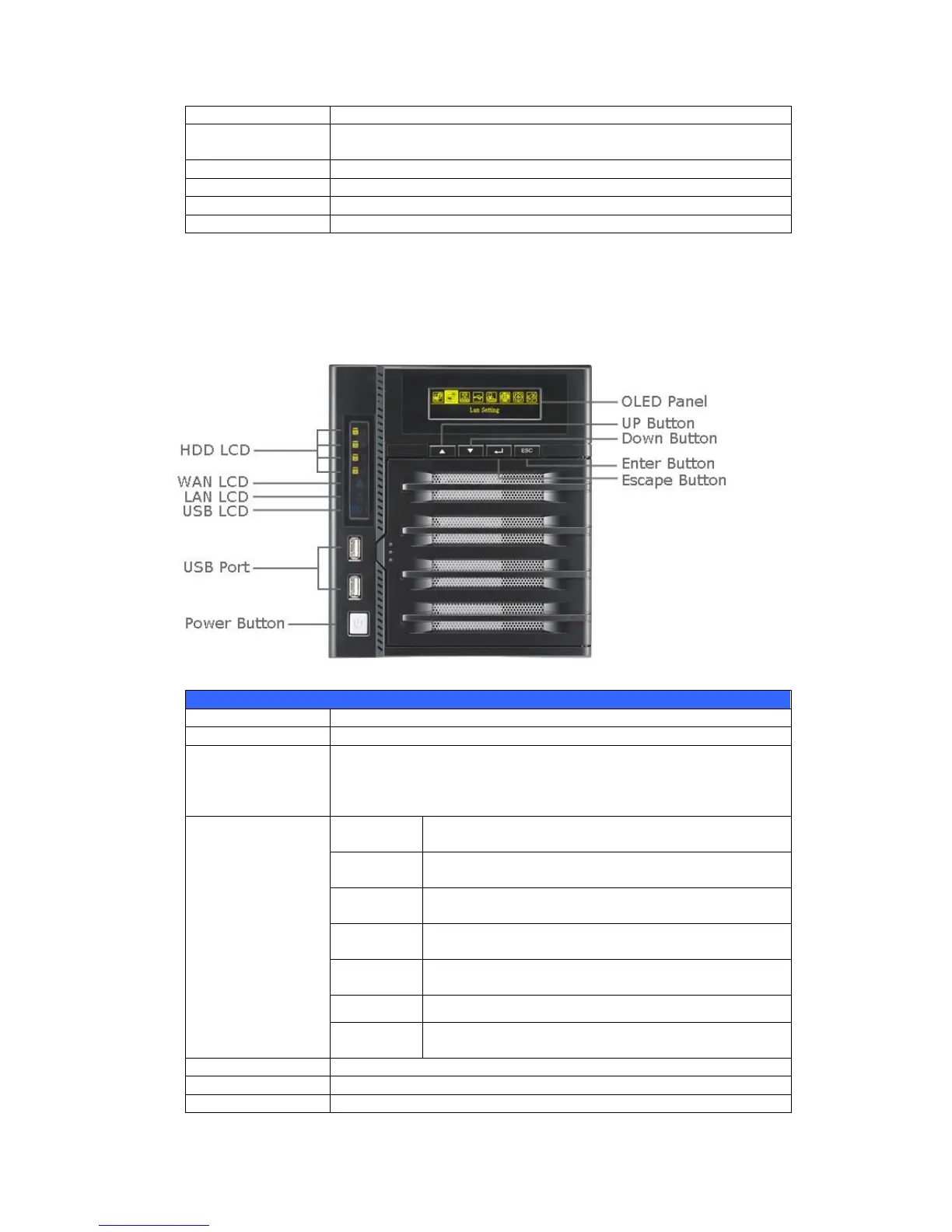

The Thecus N4200series front panel has the device’s controls, indicators, and hard
disk trays:
Front Panel
Item Description
Power Button  Power on/off N4200series
OLED  Displays current system status and messages
 OLED screen saver will be enabled after screen is left idle for more
than 3 mins
 OLED screen will be diabled after it is left idle for more than 6 mins
HDD 1 LED
 Yellow: HDD activity
 Red: HDD failure
HDD 2 LED
 Yellow: HDD activity
 Red: HDD failure
HDD 3 LED
 Yellow: HDD activity
 Red: HDD failure
HDD 4 LED
 Yellow: HDD activity
 Red: HDD failure
WAN/LAN1
LED
 Blinking green: network activity
LAN2 LED  Blinking green: network activity
OLED
USB Copy ● Blue: USB Copy activity
● Red: USB Copy failure
HDD Tray  Four HDD trays support 4x 3.5" or 4 x 2.5” HDDs
USB Copy Button  Copy USB storage contents to N4200series
USB Port  USB 2.0 port for compatible USB devices, such as USB disks.

Thecus N4200 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive capacity	- GB
Supported file systems	Ext3, XFS, ZFS
Storage drive interface	Serial ATA
Total installed storage capacity	8 TB
Number of storage drives installed	-
Number of storage drives supported	4
Internal memory	1 GB
Internal memory type	DDR2
Bus type	DMI
Stepping	B0
Tjunction	100 °C
Processor code	SLBLA
Processor cache	1 MB
Processor cores	2
Processor model	D510
System bus rate	- GT/s
Processor family	Intel Atom®
Processor socket	BGA 559
Processor codename	Pineview
Processing Die size	87 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor package size	22 x 22 mm
Conflict-Free processor	No
Processor operating modes	64-bit
Thermal Design Power (TDP)	13 W
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Memory bandwidth supported by processor (max)	6.4 GB/s
Maximum internal memory supported by processor	4 GB
Link/Act LED	Yes
Expansion slots	PCI-e x1
Processor ARK ID	43098
Networking features	Gigabit Ethernet
Compatible operating systems	- Windows 2000/7/XP/2003/Vista; - UNIX/Linux; - Mac OS 9 / X
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP, Appletalk, SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Security algorithms	256-bit AES
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Display type	OLED
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Number of Processing Die Transistors	176 M
Memory channels supported by processor	Single
