Thecus N4200 User Manual

17
N0503:
The N0503 supports both 2.5” and 3.5” Serial ATA (SATA) hard disks. To install a
hard disk into the N0503, follow the steps below:
1. Open front door of the N0503.
2. For 3.5” HDD
a. Get the hard drive rails and install them to your SATA hard disk(s).
b. Slide hard disks into the N0503 until they snap into place.
c. Replace the thumbscrews.
3. For 2.5” HDD
a. It has come with 2.5” HDD cage
b. Remove the 2.5” HDD tray
c. Install HDD into
d. Slide 2.5” HDD cage back in till it snap into place.
4. Replace the N0503 front cover.

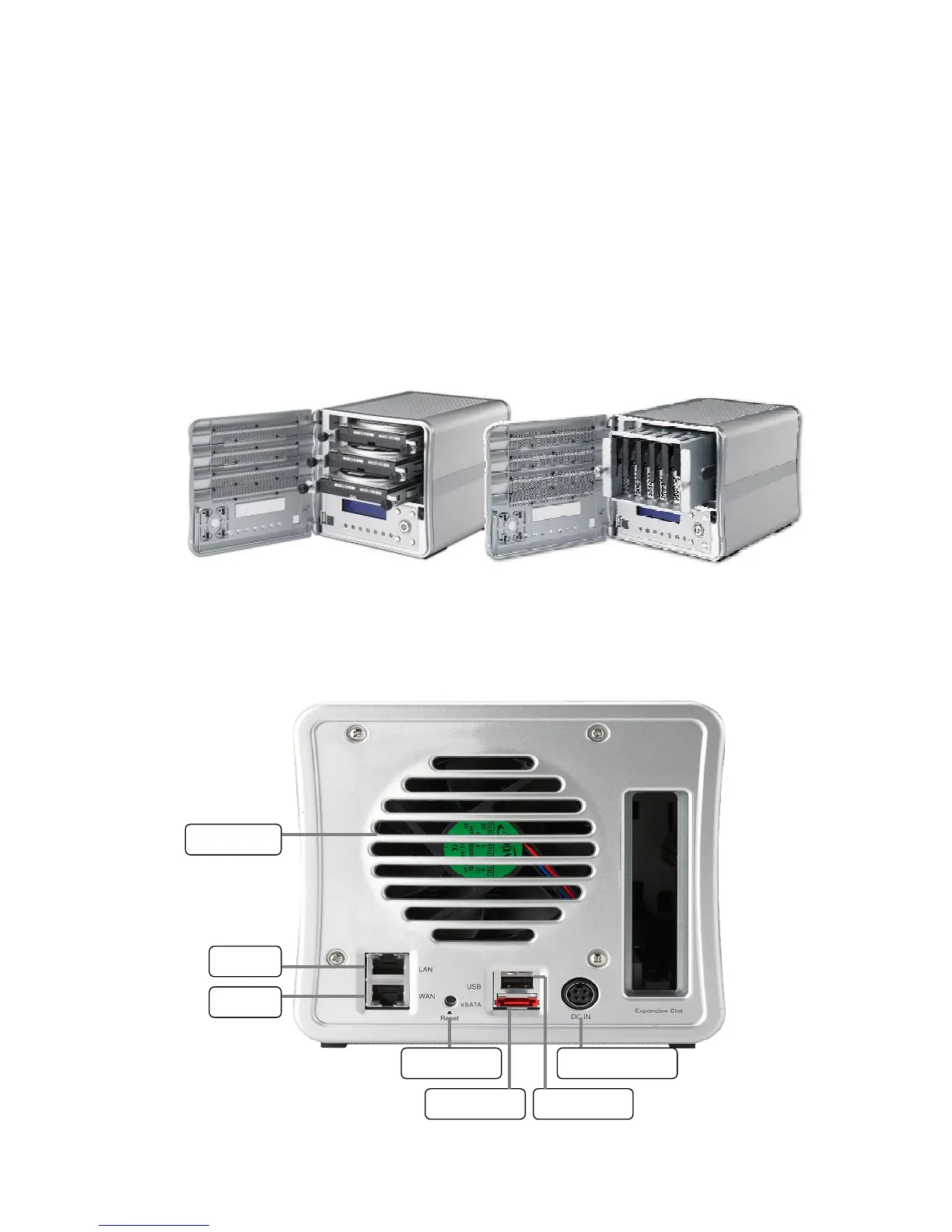

Rear Panel
N0503:
The N0503 rear panel features ports and connectors.
System Fan
LAN2 Port
WAN/LAN
Reset Button
eSATA Port
USB Port
Power Connector

Thecus N4200 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive capacity	- GB
Supported file systems	Ext3, XFS, ZFS
Storage drive interface	Serial ATA
Total installed storage capacity	8 TB
Number of storage drives installed	-
Number of storage drives supported	4
Internal memory	1 GB
Internal memory type	DDR2
Bus type	DMI
Stepping	B0
Tjunction	100 °C
Processor code	SLBLA
Processor cache	1 MB
Processor cores	2
Processor model	D510
System bus rate	- GT/s
Processor family	Intel Atom®
Processor socket	BGA 559
Processor codename	Pineview
Processing Die size	87 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor package size	22 x 22 mm
Conflict-Free processor	No
Processor operating modes	64-bit
Thermal Design Power (TDP)	13 W
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Memory bandwidth supported by processor (max)	6.4 GB/s
Maximum internal memory supported by processor	4 GB
Link/Act LED	Yes
Expansion slots	PCI-e x1
Processor ARK ID	43098
Networking features	Gigabit Ethernet
Compatible operating systems	- Windows 2000/7/XP/2003/Vista; - UNIX/Linux; - Mac OS 9 / X
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP, Appletalk, SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Security algorithms	256-bit AES
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Display type	OLED
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Number of Processing Die Transistors	176 M
Memory channels supported by processor	Single
