Thecus N4200 User Manual

29
Chapter 3: First Time Setup
Overview
Once the hardware is installed, physically connected to your network, and powered
on, you can configure the Thecus IP storage so that it is accessible to your network
users. There are two ways to set up your Thecus IP storage: using the Thecus
Setup Wizard or the LCD display. Follow the steps below for initial software setup.

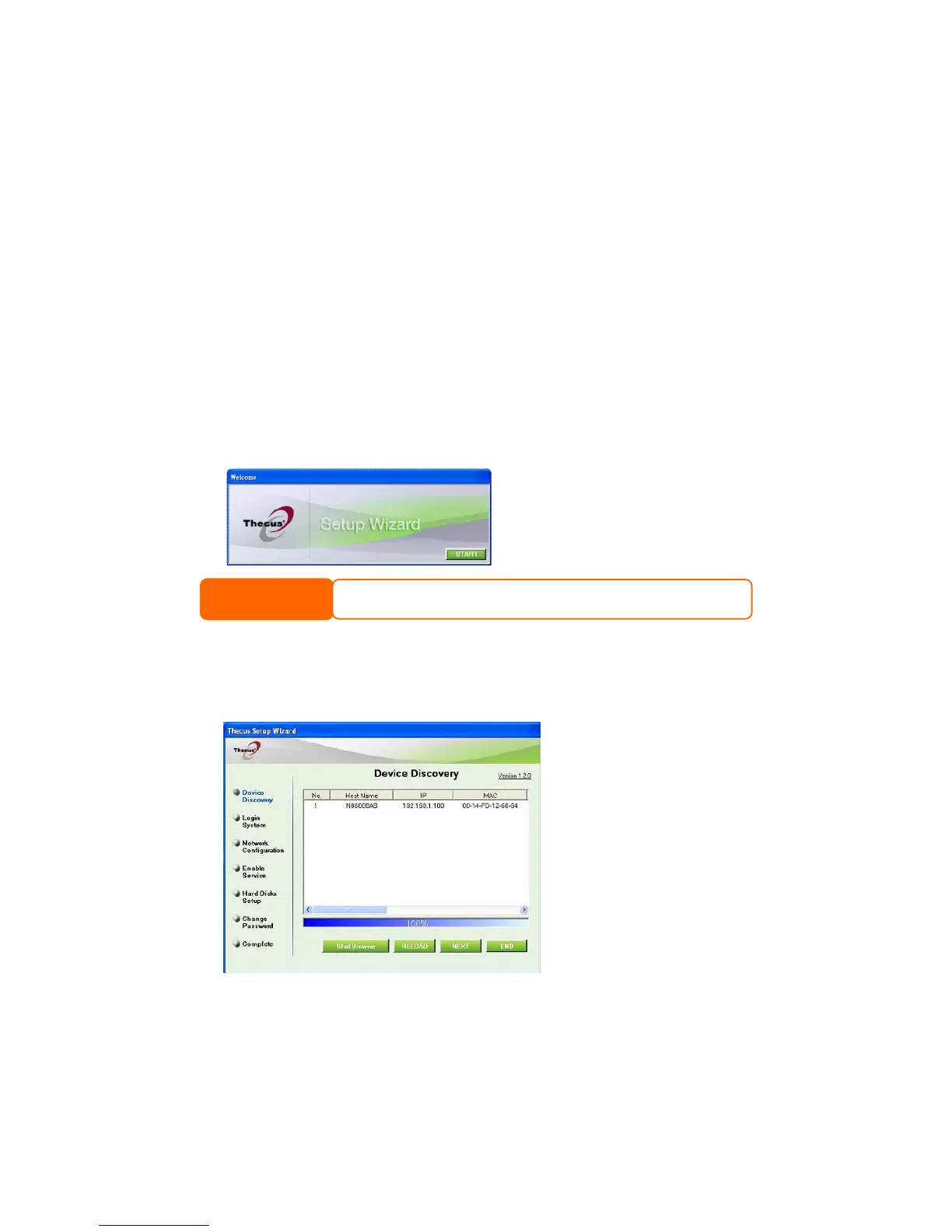

Thecus Setup Wizard
The handy Thecus Setup Wizard makes configuring Thecus IP storage a snap. To
configure the Thecus IP storage using the Setup Wizard, perform the following
steps:
1. Insert the installation CD into your CD-ROM drive (the host PC must be
connected to the network).
2. The Setup Wizard should launch automatically. If not, please browse your
CD-ROM drive and double click on Setup.exe.
3. The Setup Wizard will start and automatically detect all Thecus storage
devices on your network. If none are found, please check your connection
and refer to Chapter 7: Troubleshooting for assistance.
4. Select the Thecus IP storage that you like to configure.
5. Login with the administrator account and password. The default account and
password are both “admin”.
NOTE
For MAC OS X users, double click on Thecus Setup Wizard .dmg file.

Thecus N4200 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive capacity	- GB
Supported file systems	Ext3, XFS, ZFS
Storage drive interface	Serial ATA
Total installed storage capacity	8 TB
Number of storage drives installed	-
Number of storage drives supported	4
Internal memory	1 GB
Internal memory type	DDR2
Bus type	DMI
Stepping	B0
Tjunction	100 °C
Processor code	SLBLA
Processor cache	1 MB
Processor cores	2
Processor model	D510
System bus rate	- GT/s
Processor family	Intel Atom®
Processor socket	BGA 559
Processor codename	Pineview
Processing Die size	87 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor package size	22 x 22 mm
Conflict-Free processor	No
Processor operating modes	64-bit
Thermal Design Power (TDP)	13 W
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Memory bandwidth supported by processor (max)	6.4 GB/s
Maximum internal memory supported by processor	4 GB
Link/Act LED	Yes
Expansion slots	PCI-e x1
Processor ARK ID	43098
Networking features	Gigabit Ethernet
Compatible operating systems	- Windows 2000/7/XP/2003/Vista; - UNIX/Linux; - Mac OS 9 / X
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP, Appletalk, SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Security algorithms	256-bit AES
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Display type	OLED
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Number of Processing Die Transistors	176 M
Memory channels supported by processor	Single
