Front Panel
N0503:

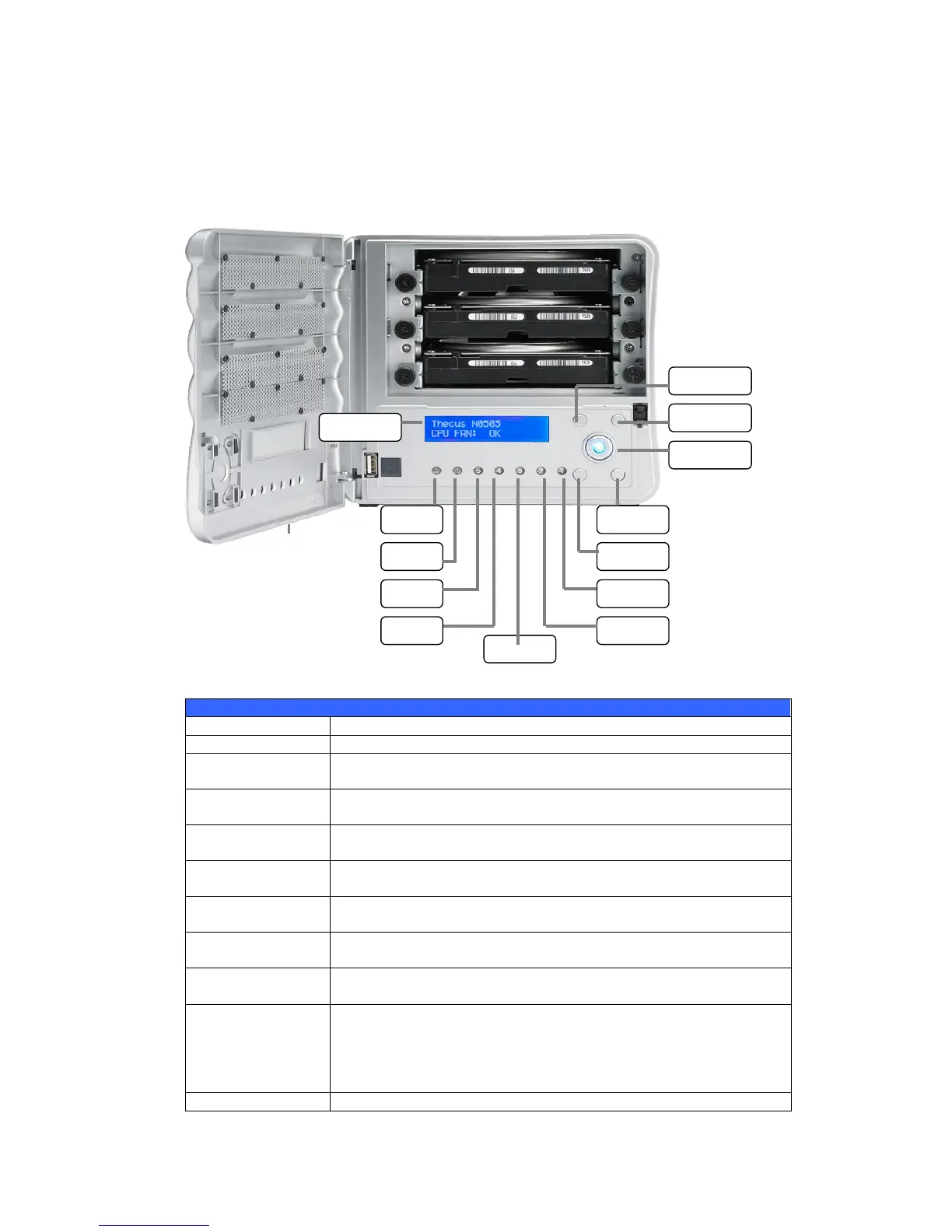

The Thecus N0503’s front panel has the device’s controls, indicators, and hard disk
trays:
Front Panel
Item Description
Power LED  Solid blue: system is powered on
WAN/LAN1 LED  Solid green: network link
 Blinking orange: network activity
LAN2 LED  Solid green: network link
 Blinking orange: network activity
HDD 1 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 2 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 3 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 4 LED  Solid red: HDD failed
 Blinking orange: HDD activity
HDD 5 LED  Solid red: HDD failed
 Blinking orange: HDD activity
USB Port  USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, USB printers, and USB wireless dongles*
Note: For supported USB wireless dongles, please contact
support@thecus.com
Power Button  Power on/off N0503
Escape
Enter
Power
LCD Display
LAN2
WAN/LA
HDD 5
HDD 3
HDD 2
Up Button
Down
HDD 1
HDD 4

Thecus N4200 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive capacity	- GB
Supported file systems	Ext3, XFS, ZFS
Storage drive interface	Serial ATA
Total installed storage capacity	8 TB
Number of storage drives installed	-
Number of storage drives supported	4
Internal memory	1 GB
Internal memory type	DDR2
Bus type	DMI
Stepping	B0
Tjunction	100 °C
Processor code	SLBLA
Processor cache	1 MB
Processor cores	2
Processor model	D510
System bus rate	- GT/s
Processor family	Intel Atom®
Processor socket	BGA 559
Processor codename	Pineview
Processing Die size	87 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor package size	22 x 22 mm
Conflict-Free processor	No
Processor operating modes	64-bit
Thermal Design Power (TDP)	13 W
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Memory bandwidth supported by processor (max)	6.4 GB/s
Maximum internal memory supported by processor	4 GB
Link/Act LED	Yes
Expansion slots	PCI-e x1
Processor ARK ID	43098
Networking features	Gigabit Ethernet
Compatible operating systems	- Windows 2000/7/XP/2003/Vista; - UNIX/Linux; - Mac OS 9 / X
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP, Appletalk, SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Security algorithms	256-bit AES
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Display type	OLED
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Number of Processing Die Transistors	176 M
Memory channels supported by processor	Single
