Thecus N4200 User Manual

113

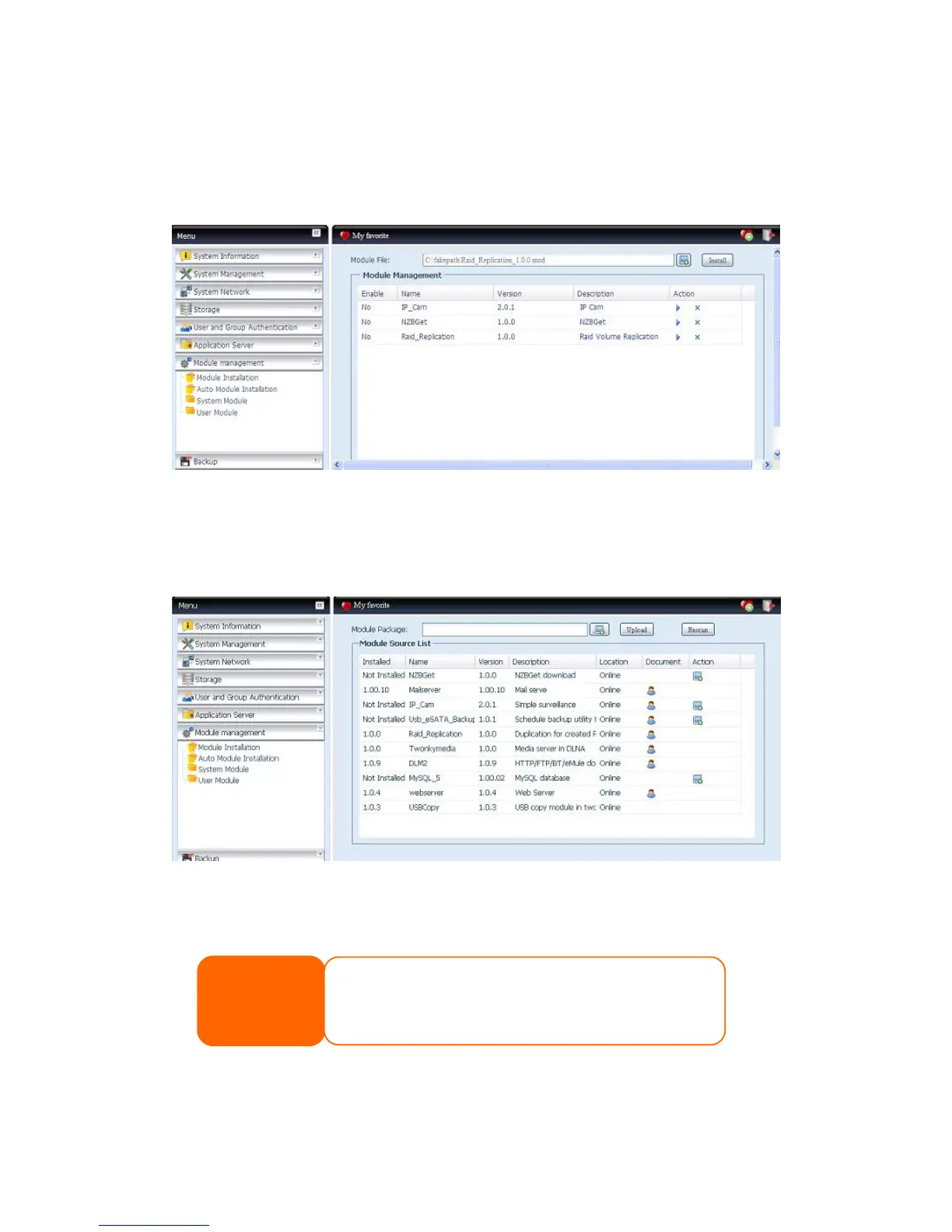

Module Management
Module Installation
From the Module Management menu, choose the Module Installation item and
the Module Management screen appears. From here, you can install separate
software modules to extend the functionality of your Thecus IP storage.
Auto Module Installation
Or choose the Auto Module Installation item and the available system Module
screen appears. The default to get module list is “On-line” so if Thecus IP storage is
capable to connect to Internet then it will automatically link to Thecus official
website then list available modules. Please refer the screen shot below.
The other way to have auto module installed is using universal CD shipped with
system. It has contained file “modules.zip” which included all modules while system
shipped. Please refer the screenshot below.
NOTE
The modules list getting on-line of Thecus website will newly
than “thecus.zip” from shipped CD. But the installation from
Thecus website could have unpredictable duration due to
bandwidth concern.

Thecus N4200 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive capacity	- GB
Supported file systems	Ext3, XFS, ZFS
Storage drive interface	Serial ATA
Total installed storage capacity	8 TB
Number of storage drives installed	-
Number of storage drives supported	4
Internal memory	1 GB
Internal memory type	DDR2
Bus type	DMI
Stepping	B0
Tjunction	100 °C
Processor code	SLBLA
Processor cache	1 MB
Processor cores	2
Processor model	D510
System bus rate	- GT/s
Processor family	Intel Atom®
Processor socket	BGA 559
Processor codename	Pineview
Processing Die size	87 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor package size	22 x 22 mm
Conflict-Free processor	No
Processor operating modes	64-bit
Thermal Design Power (TDP)	13 W
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Memory bandwidth supported by processor (max)	6.4 GB/s
Maximum internal memory supported by processor	4 GB
Link/Act LED	Yes
Expansion slots	PCI-e x1
Processor ARK ID	43098
Networking features	Gigabit Ethernet
Compatible operating systems	- Windows 2000/7/XP/2003/Vista; - UNIX/Linux; - Mac OS 9 / X
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP, Appletalk, SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Security algorithms	256-bit AES
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Display type	OLED
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Number of Processing Die Transistors	176 M
Memory channels supported by processor	Single
