Thecus N4200 User Manual

16

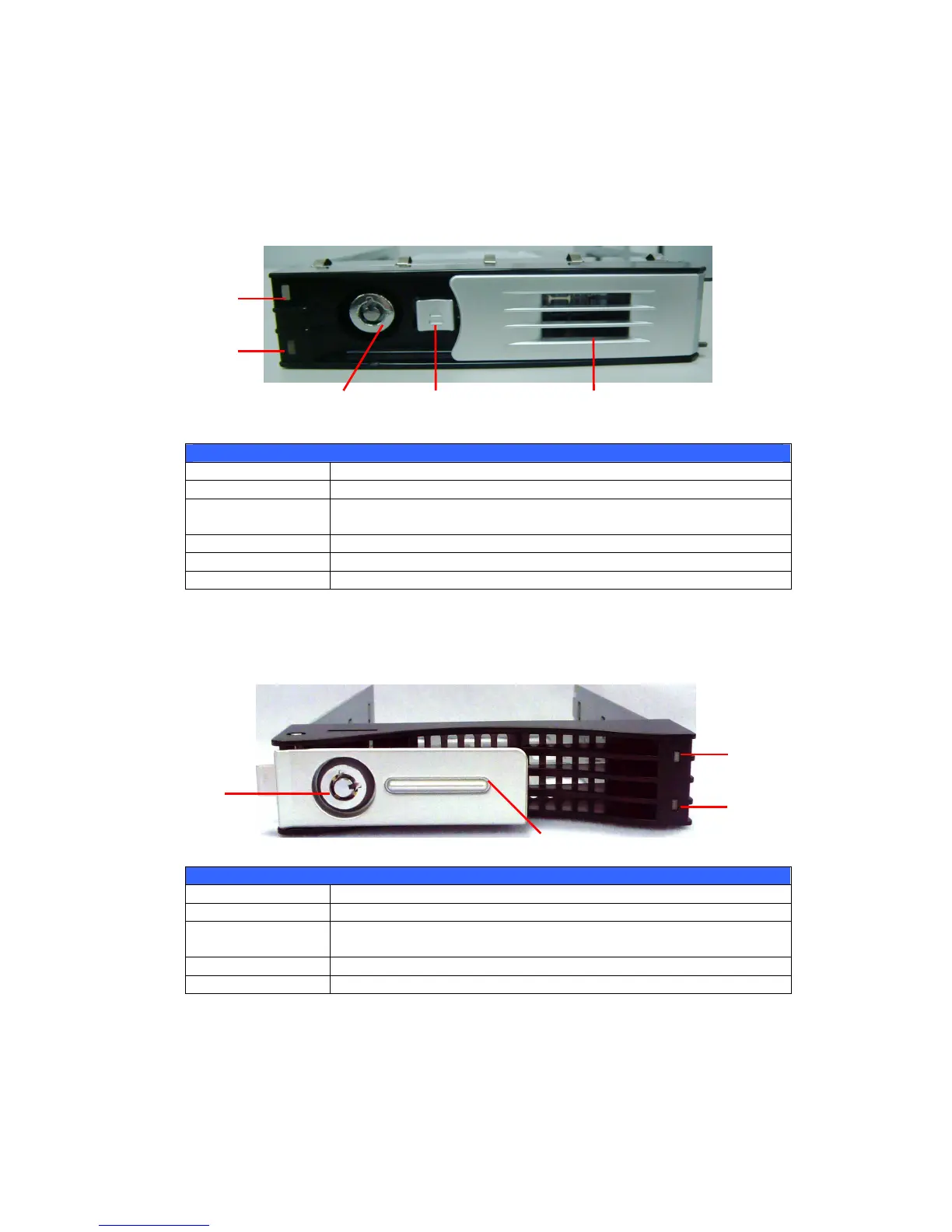

Hard Disk Trays
1U4600/N7700 series/N8800series:
Each of mentioned above models hard disk trays has a lock, a latch, and two LED
indicators:
Hard Disk Trays
Item Description
1.HDD Power LED  Solid blue: hard disk is powered on
2.HDD
Access/Error LED
 Blinking green: system is accessing data on the hard disk
3.Lock  Use the lock to physically secure the hard disk to the unit
4.Latch  Use to open and remove or close and secure the tray
5.Handle  Pull out HDD tray
N4200 series/N5500:
Each of the N5500’s hard disk trays has a lock, a latch, and two LED indicators:
Hard Disk Trays
Item Description
1.HDD Power LED  Solid blue: hard disk is powered on
2.HDD
Access/Error LED
 Blinking green: system is accessing data on the hard disk
3.Lock  Use the lock to physically secure the hard disk to the unit
4.Handle  Pull out HDD tray
1
2
3 4 5
5
1
2 3
4

Thecus N4200 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive capacity	- GB
Supported file systems	Ext3, XFS, ZFS
Storage drive interface	Serial ATA
Total installed storage capacity	8 TB
Number of storage drives installed	-
Number of storage drives supported	4
Internal memory	1 GB
Internal memory type	DDR2
Bus type	DMI
Stepping	B0
Tjunction	100 °C
Processor code	SLBLA
Processor cache	1 MB
Processor cores	2
Processor model	D510
System bus rate	- GT/s
Processor family	Intel Atom®
Processor socket	BGA 559
Processor codename	Pineview
Processing Die size	87 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor package size	22 x 22 mm
Conflict-Free processor	No
Processor operating modes	64-bit
Thermal Design Power (TDP)	13 W
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Memory bandwidth supported by processor (max)	6.4 GB/s
Maximum internal memory supported by processor	4 GB
Link/Act LED	Yes
Expansion slots	PCI-e x1
Processor ARK ID	43098
Networking features	Gigabit Ethernet
Compatible operating systems	- Windows 2000/7/XP/2003/Vista; - UNIX/Linux; - Mac OS 9 / X
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP, Appletalk, SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Security algorithms	256-bit AES
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Display type	OLED
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Number of Processing Die Transistors	176 M
Memory channels supported by processor	Single
