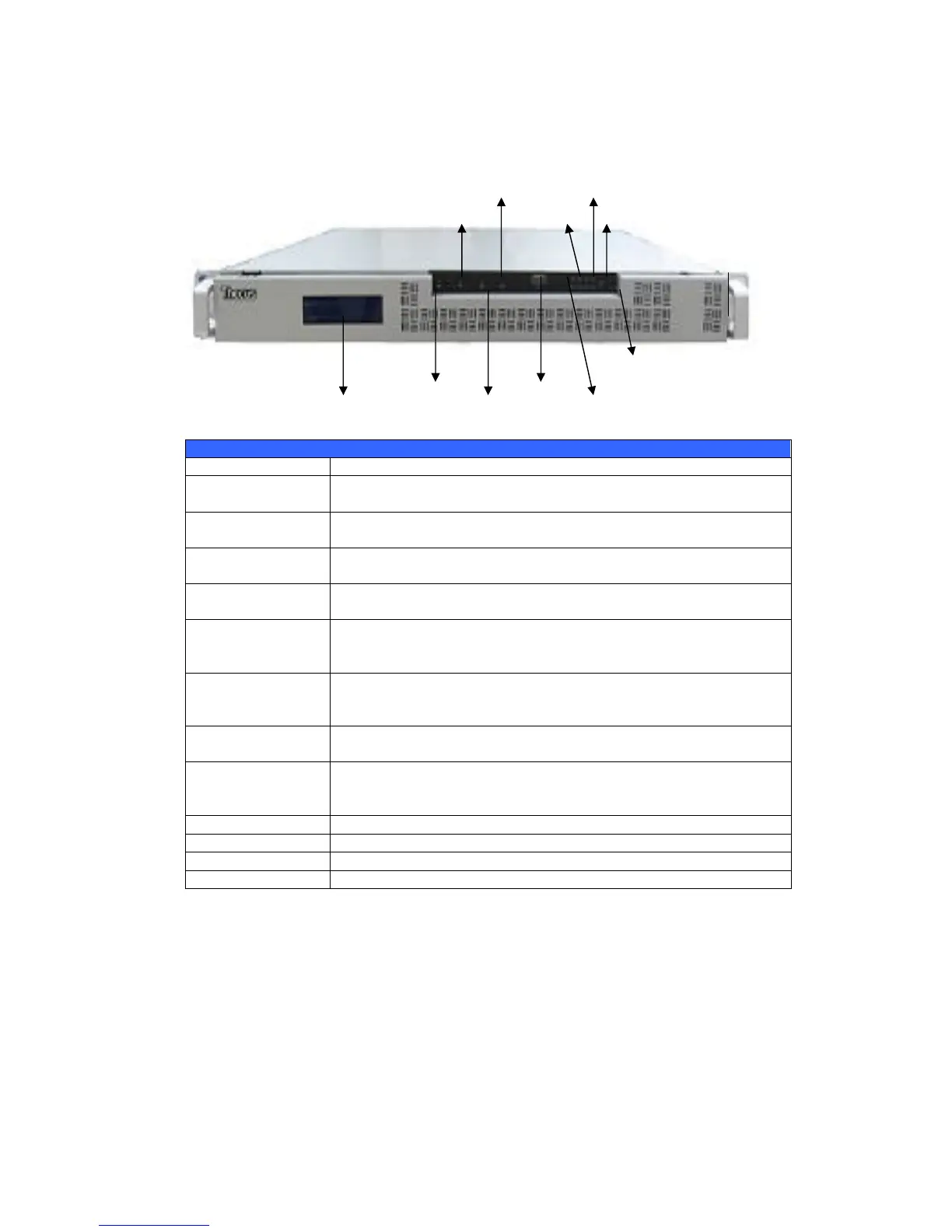

The Thecus 1U4600 front panel has the device’s controls, indicators, and hard disk
trays:
Escape Button PWR LED
Down Button LAN2 LED Power Button
Busy LED WAN/LAN1 LED Reset Button
Up Button USB Port
LCD Display Enter Button Busy LED
Front Panel
Item Description
WAN/LAN1 LED  Solid green: network link
 Blinking green: network activity
LAN2 LED  Solid green: network link
 Blinking green: network activity
Busy LED  Blinking orange: system startup or system maintenance; data
currently inaccessible
USB Port  USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers
Power Button  Power on/off 1U4600
 Solid blue: Device is powered on
 Blinking blue: eSATA hard disk is connected and active
Reset Button  Resets the 1U4600
 Press for five seconds during boot process to reset IP address and
admin password
HDD Trays  Four 3.5” SATA HDD trays
 Locks are provided for added security
LCD Display  Displays current system status and warning messages
 Displays hostname, WAN/LAN1/LAN2 IP address, RAID status, and
current time
Up Button ▲  Push to scroll up when using the LCD display
Down Button ▼  Push to scroll down when using the LCD display
Enter Button   Push to confirm information entered into the LCD display
Escape Button ESC
 Push to leave the current LCD menu

Thecus N4200 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive capacity	- GB
Supported file systems	Ext3, XFS, ZFS
Storage drive interface	Serial ATA
Total installed storage capacity	8 TB
Number of storage drives installed	-
Number of storage drives supported	4
Internal memory	1 GB
Internal memory type	DDR2
Bus type	DMI
Stepping	B0
Tjunction	100 °C
Processor code	SLBLA
Processor cache	1 MB
Processor cores	2
Processor model	D510
System bus rate	- GT/s
Processor family	Intel Atom®
Processor socket	BGA 559
Processor codename	Pineview
Processing Die size	87 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor package size	22 x 22 mm
Conflict-Free processor	No
Processor operating modes	64-bit
Thermal Design Power (TDP)	13 W
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Memory bandwidth supported by processor (max)	6.4 GB/s
Maximum internal memory supported by processor	4 GB
Link/Act LED	Yes
Expansion slots	PCI-e x1
Processor ARK ID	43098
Networking features	Gigabit Ethernet
Compatible operating systems	- Windows 2000/7/XP/2003/Vista; - UNIX/Linux; - Mac OS 9 / X
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP, Appletalk, SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Security algorithms	256-bit AES
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Display type	OLED
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Number of Processing Die Transistors	176 M
Memory channels supported by processor	Single
