Thecus N4200 User Manual

21
1U4600R:

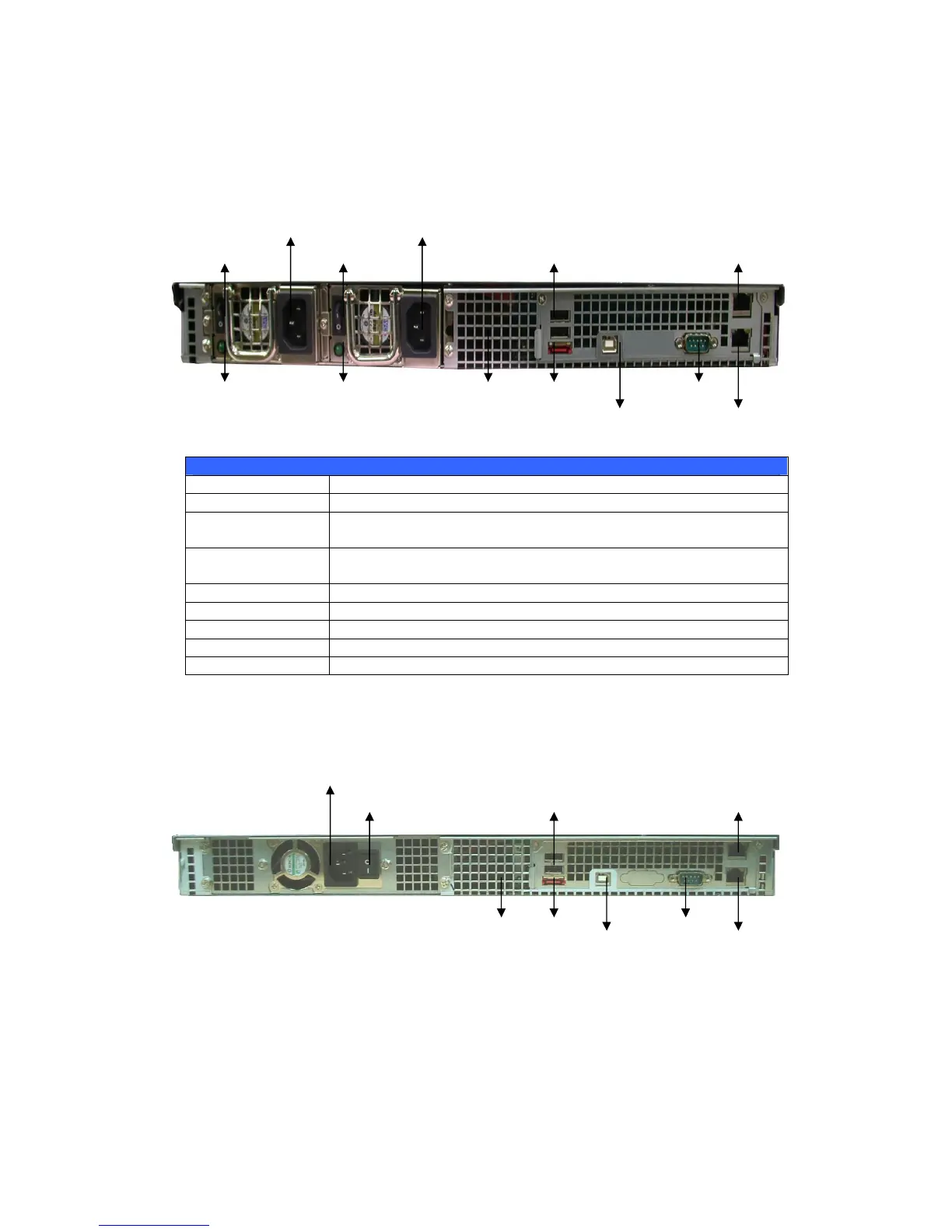

The rear panel of the 1U4600R houses most of the USB and Ethernet connections,
as well as the eSATA port, system fan, and power connector. See the table below for
descriptions of each:
Power Connector Power Connector
Power Switch Power Switch USB Ports (A Type) LAN2 Port
Power LED Power LED System Fan eSATA Port Serial Port
USB Ports (B Type) WAN/LAN1
Port
1U4600 Back Panel
Item Description
eSATA Port  eSATA port for high-speed storage expansion
USB Ports  USB 2.0 ports for compatible USB devices, such as digital
cameras, USB disks, and USB printers
WAN/LAN1 Port  WAN/LAN1 port for connecting to an Ethernet network through a
switch or router
LAN2 Port  LAN2 port that can be used for connection sharing
Power Switch  Switch for power supply
System Fan  System fan that exhausts heat from the unit
Serial Port  This port is for factory use only
Power Connector  Connect the included power cords to these connectors
1U4600S:
The rear panel of the 1U4600S is similar to the 1U4600R, but with a single power
connector:
Power Connector
Power Switch USB Ports (A Type) LAN2 Port
System Fan eSATA Port Serial Port
USB Ports (B Type) WAN/LAN1
Port

Thecus N4200 Specifications

General

RAID levels	0, 1, 5, 6, 10, JBOD
Storage drive capacity	- GB
Supported file systems	Ext3, XFS, ZFS
Storage drive interface	Serial ATA
Total installed storage capacity	8 TB
Number of storage drives installed	-
Number of storage drives supported	4
Internal memory	1 GB
Internal memory type	DDR2
Bus type	DMI
Stepping	B0
Tjunction	100 °C
Processor code	SLBLA
Processor cache	1 MB
Processor cores	2
Processor model	D510
System bus rate	- GT/s
Processor family	Intel Atom®
Processor socket	BGA 559
Processor codename	Pineview
Processing Die size	87 mm²
Processor frequency	1.66 GHz
Processor cache type	L2
Processor lithography	45 nm
Processor manufacturer	Intel
Processor package size	22 x 22 mm
Conflict-Free processor	No
Processor operating modes	64-bit
Thermal Design Power (TDP)	13 W
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Memory bandwidth supported by processor (max)	6.4 GB/s
Maximum internal memory supported by processor	4 GB
Link/Act LED	Yes
Expansion slots	PCI-e x1
Processor ARK ID	43098
Networking features	Gigabit Ethernet
Compatible operating systems	- Windows 2000/7/XP/2003/Vista; - UNIX/Linux; - Mac OS 9 / X
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	TCP/IP, Appletalk, SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP
Security algorithms	256-bit AES
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Display type	OLED
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Number of Processing Die Transistors	176 M
Memory channels supported by processor	Single
