Front Panel

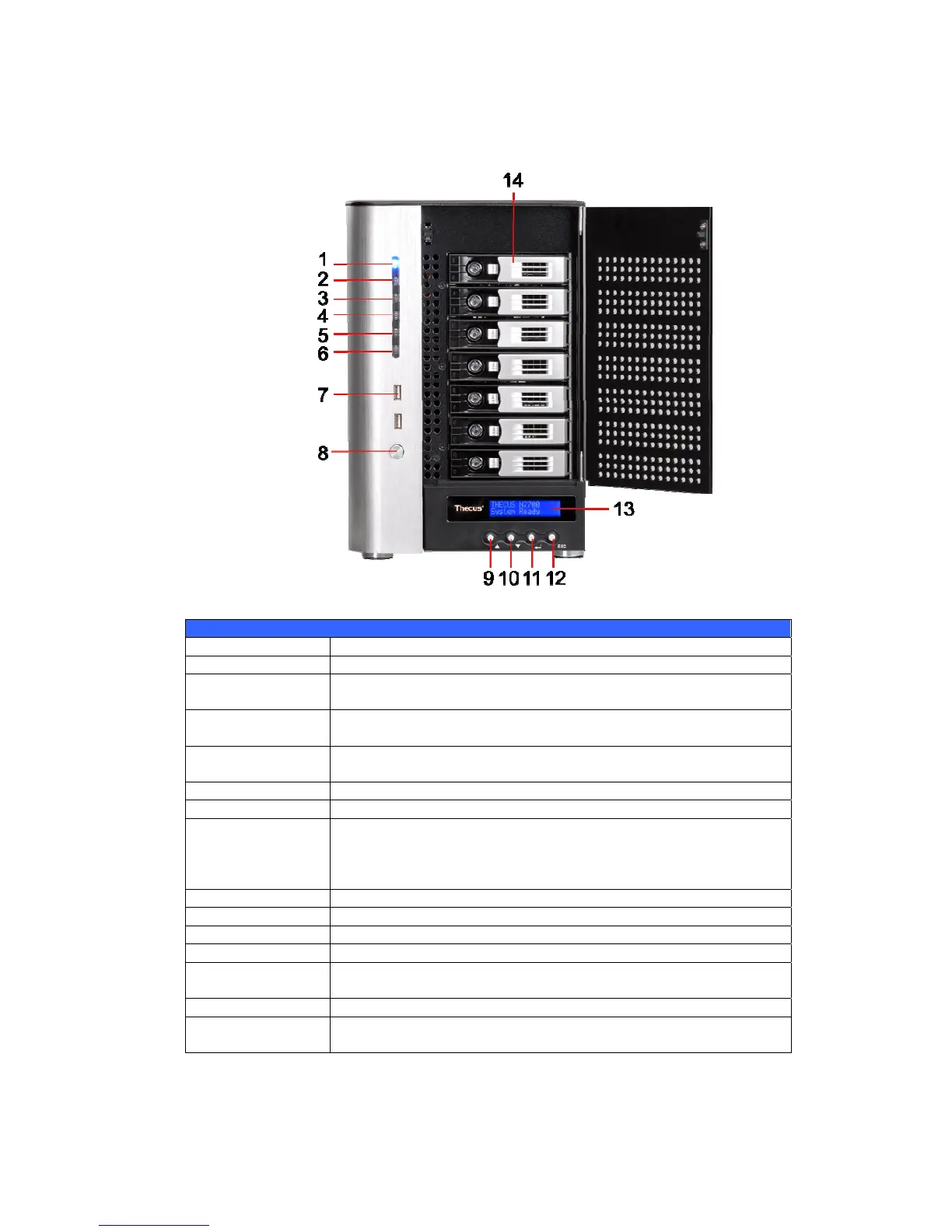

The Thecus N7700SAS’s front panel has the device’s controls, indicators, and hard
disk trays:
Front Panel
Item Description
1.Power LED • Solid blue: System is power on.
2.System LED • Solid orange: system is being upgraded or system startup; data
currently inaccessible
3.WAN LED
• Solid green: network link
• Blinking green: network activity
4.LAN LED
• Solid green: network link
• Blinking green: network activity
5.USB Copy LED • Solid blue: files are being copied from a USB storage device
6.eSATA link LED • Solid blue: external eSATA device has connected
7.USB Port
• USB 2.0 port for compatible USB devices, such as USB disks, USB
printers, and USB wireless dongles*
Note: For supported USB wireless dongles, please contact
http://esupport.thecus.com/support
8.Power Button • Power on/off N7700SAS
9.Up Button ▲ • Push to scroll up when using the LCD display
10.Down Button ▼ • Push to enter USB copy operation screen
11.Enter Button ↵ • Push to enter LCD operate password for basic system setting
12.Escape Button
ESC
• Push to leave the current LCD menu
13.LCD Display • Displays current system status and warning messages
14.HDD Trays • Seven 3.5” SATA/SAS HDD trays
• Locks are provided for added security
