Manual 0-4750 4-3 IOperation
DRAG-GUN PLUS 35C

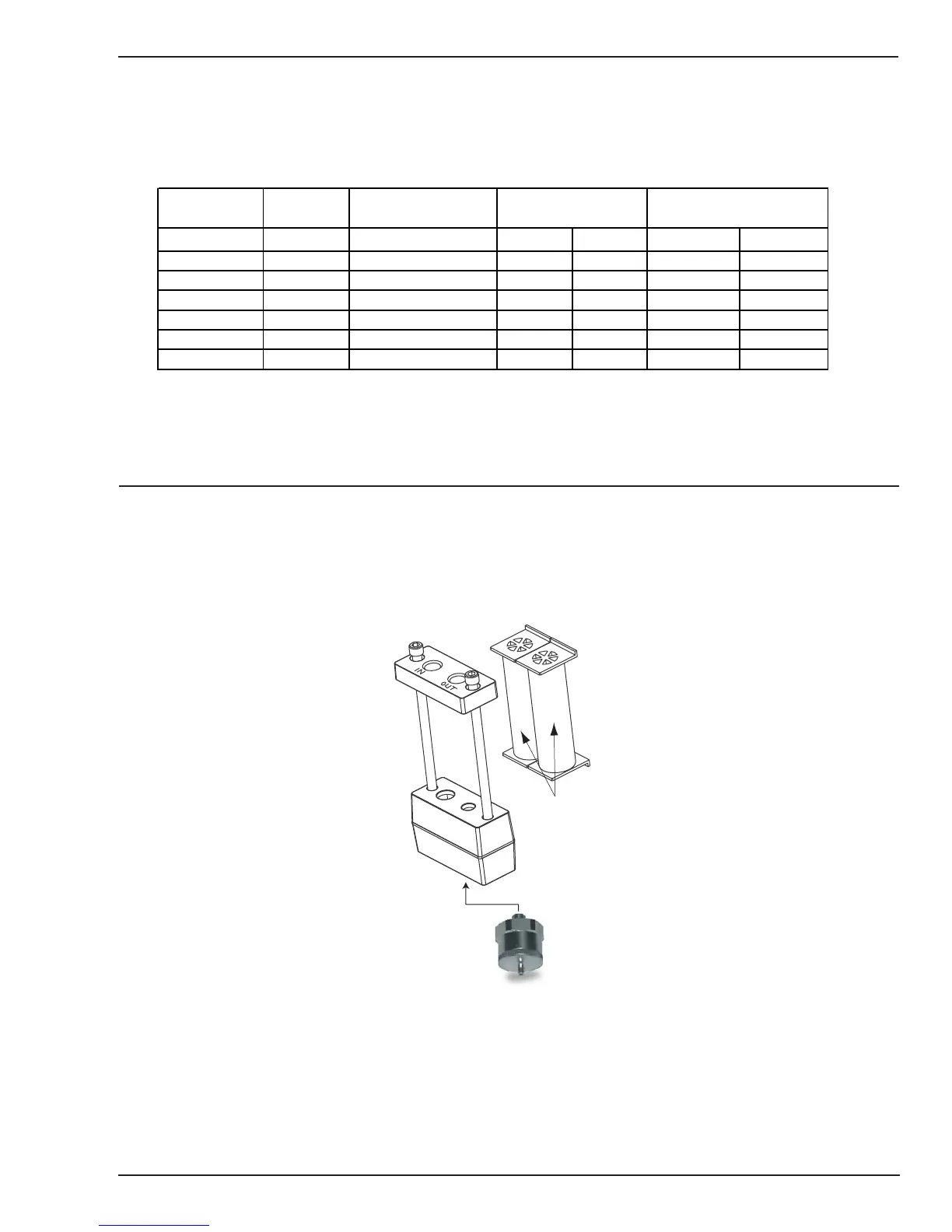

E. Typical Cutting Speeds
Cutting speeds vary according to torch output, the type of material being cut, and operator skill. Speeds shown are
typical for this cutting system using air plasma to cut mild steel, with output current at the highest setting and torch held
at the indicated standoff height.
Unit Standoff
Material
Thickness
ipm mm/m ipm mm/m
Drag-Gun Plus Drag (10 ga) 0.135" - (3mm) 95.0 2375 76.0 1900
Drag-Gun Plus Drag (7 ga) 0.179" - (4.5mm) 57.0 1425 46.0 1150
Drag-Gun Plus 1/8" - (3mm) 1/4" - (6mm) 36.0 900 29.0 725
Drag-Gun Plus 1/8" - (3mm) 3/8" - (9.5mm) 15.0 375 12.0 300
Drag-Gun Plus 1/8" - (3mm) 7/16" - (11mm) 10.0 250 8.0 200
Drag-Gun Plus 1/8" - (3mm) 1/2" - (12mm) 8 200 7 175
Recommended Travel SpeedMaximum Travel Speed
F. Filter replacement numbers
If air flow is diminished it may be due to the two stage filter being dirty. Replace elements as needed. See below.
Qty Description Catalog #
1 Two Stage Air Line Filter Kit (Includes Hose & Mounting Screws) 9-0397
1 Bracket, Filter Mounting (Not shown) 9-0396
1 Dual Stage Air Filter Assembly 9-0395
1 Replacement First Stage Cartridge 9-1021
1 Replacement Second Stage Cartridge 9-1022
1 90 degree 1/4 NPT to 6mm fitting (Not shown, requires two) 9-0398
First & Second
Stage
Cartridges
(as marked)
Art # A-08251
Cycle Drain
