Thermal Dynamics 35C DRAG-GUN PLUS User Manual

APPENDIX 6-2 Manual 0-4750
DRAG-GUN PLUS 35C

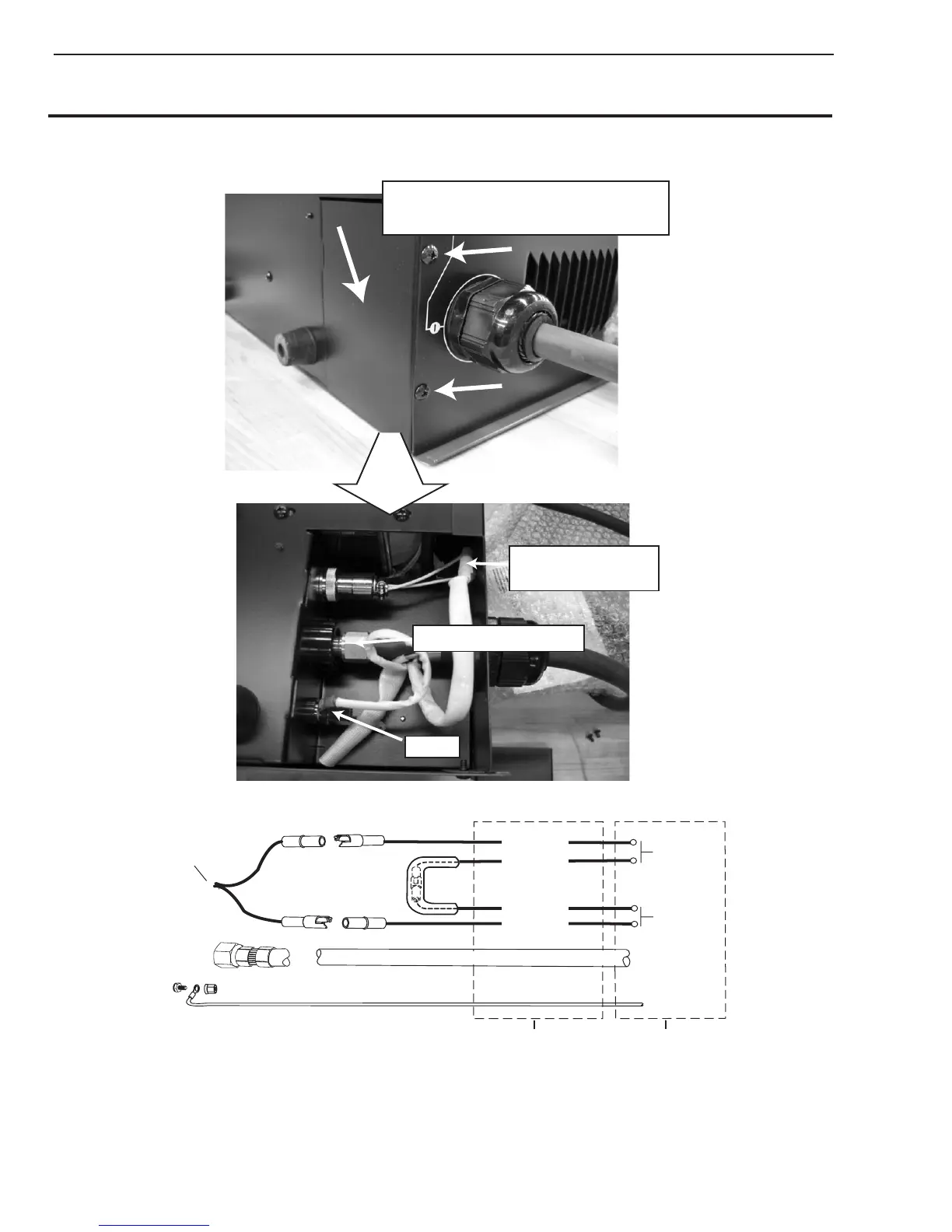

Appendix 2: Torch Connection
Disconnect power and air. Lay unit
on its side. Remove two screws and
access plate.
Pilot
Power Supply
Adapter Connections
Negative / Plasma Lead
Art # A-04695
DETAIL
To Power
Supply Adapter
Pilot
Negative / Plasma Lead
Black
Orange
Green
White
PIP
Switch
Torch
Switch
Pilot
Torch Leads
Torch Head
