Thermal Dynamics A80 CUTMASTER User Manual

CUTMASTER A80

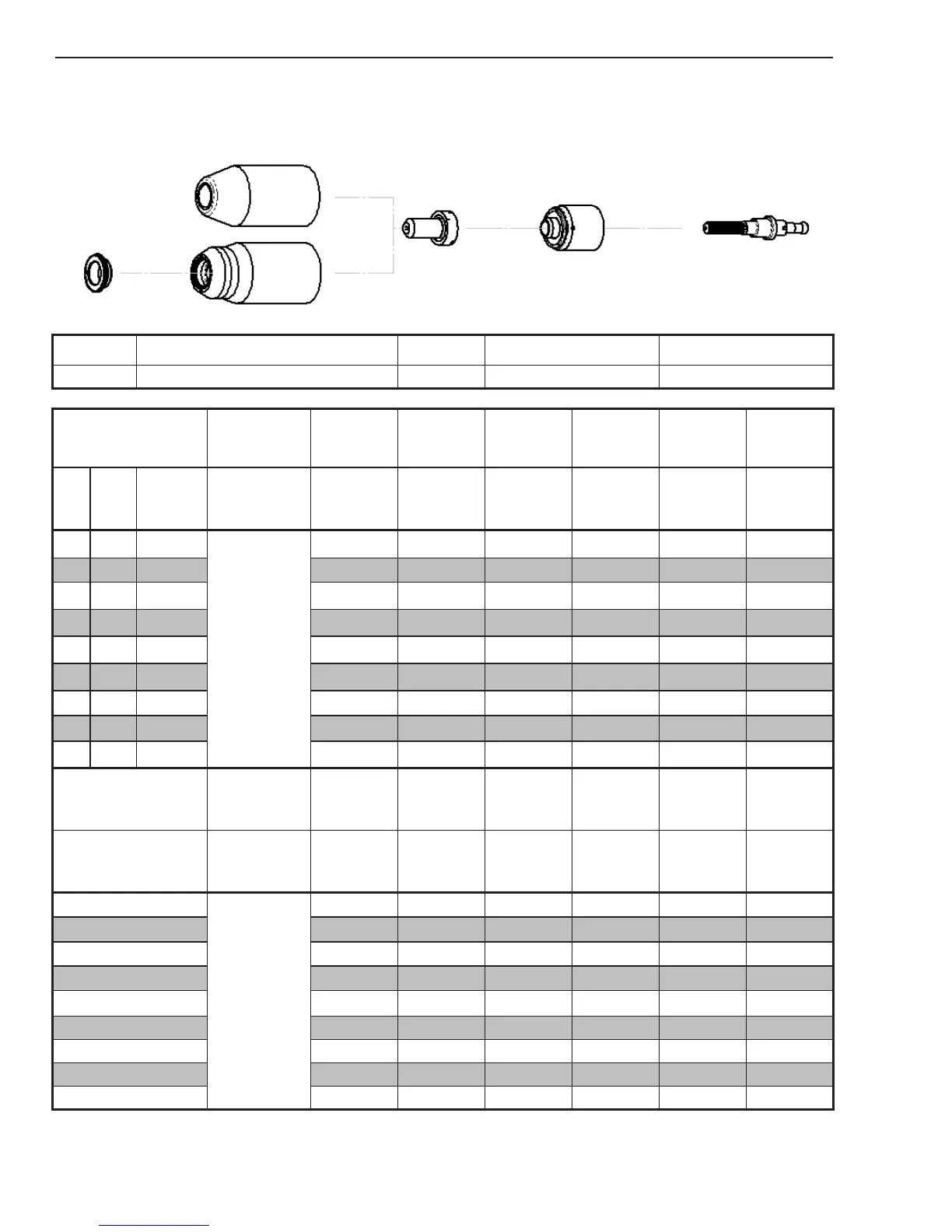

OPERATION 4T-34 Manual 0-4985
Stainless Steel
40A
Air Plasma / Air Shield
Shield Cap Maximum Life Shield Cup Tip Starter Cartridge Electrode
9-8245 9-8237 9-8208 9-8213 9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA)
(in) inch
PSI
(torch lead
length)
Volts
(in)
(ipm) (in) (sec) (in)
18
0.050
75 (25')
80 (50')
110 0.16 60 4.1 0.0 0.06
16
0.063 108 0.16 50 4.1 0.1 0.07
14
0.078 114 0.16 45 4.1 0.1 0.07
12
0.109 113 0.16 40 4.1 0.2 0.07
10
0.141 116 0.16 35 4.1 0.3 0.07
3/16 0.188 115 0.16 30 4.1 0.4 0.07
1/4 0.250 118 0.16 20 4.1 1.2 0.07
3/8 0.375 125 0.16 15 4.1 1.8 0.08
1/2 0.500 127 0.16 10 4.1 2.0 0.08
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(mm)
Bar
(torch lead
length)
Volts (mm) (mm/min) (mm) (sec) (mm)
1
5.2 (7.6)
5.5 (15.2)
109
4.1
1670 4.1 0.0 1.7
2
114 4.1 1140 4.1 0.1 1.8
3
114 4.1 980 4.1 0.2 1.8
4
116 4.1 845 4.1 0.3 1.8
5
115 4.1 725 4.1 0.4 1.8
6
117 4.1 565 4.1 0.5 2.0
8
122 4.1 440 4.1 1.5 2.0
10
125 4.1 360 4.1 1.8 2.0
12
127 4.1 280 4.1 2.0 2.2
BOLD TYPE indicates maximum piercing parameters.
