Thermal Dynamics A80 CUTMASTER User Manual

CUTMASTER A80

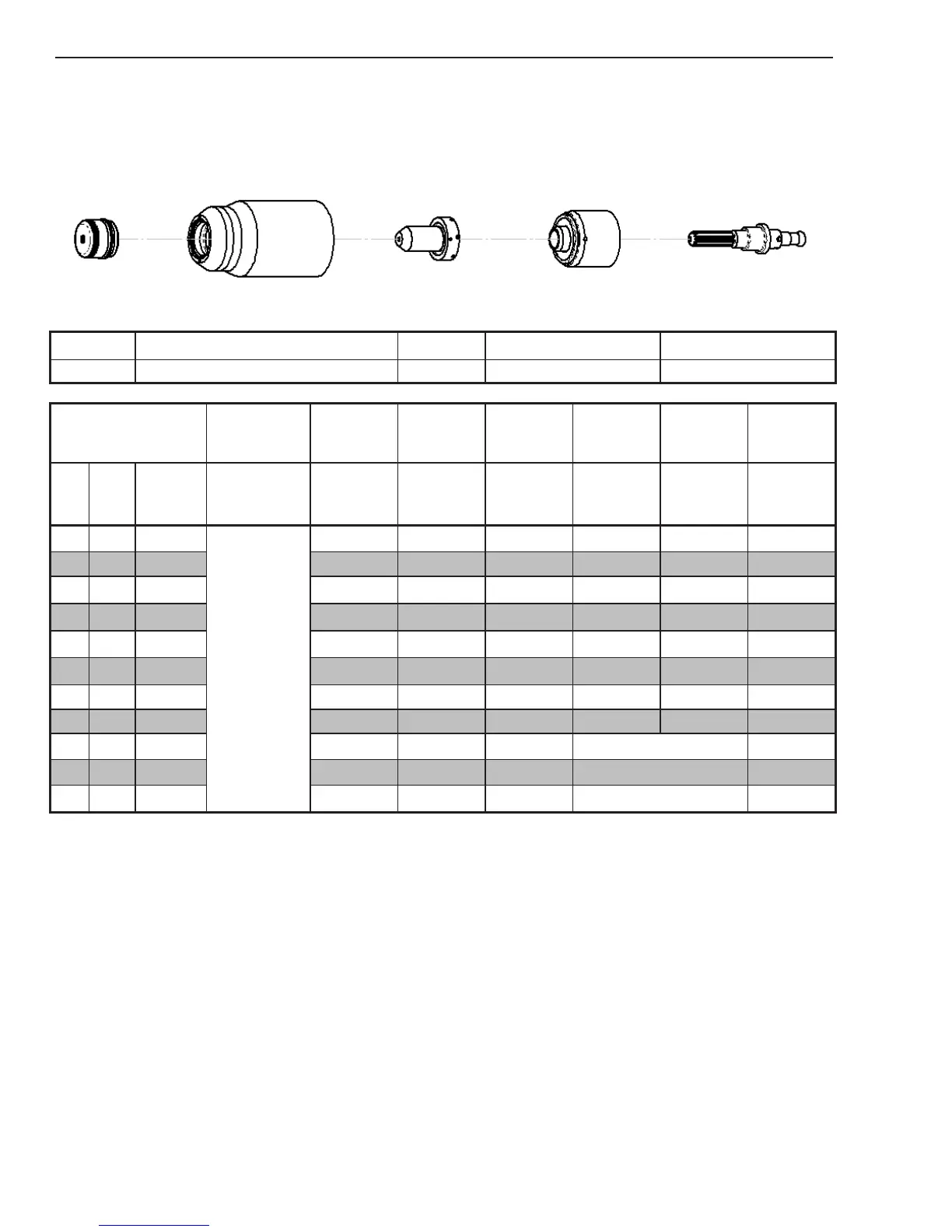

OPERATION 4T-36 Manual 0-4985
Mild Steel
60A
Air Plasma / Air Shield
Shield Cap Maximum Life Shield Cup Tip Starter Cartridge Electrode
9-8238 9-8237 9-8210 9-8213 9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA)
(in) inch
PSI
(torch lead
length)
Volts
(in)
(ipm) (in) (sec) (in)
16
0.060
85 (25')
90 (50')
128 0.19 250 0.20 0.00 0.09
14
0.075 129 0.19 237 0.20 0.10 0.09
11
0.120 126 0.19 200 0.20 0.10 0.08
10
0.135 128 0.19 142 0.20 0.10 0.09
3/16 0.188 132 0.19 115 0.20 0.20 0.09
1/4 0.250 134 0.19 80 0.20 0.30 0.08
3/8 0.375 132 0.19 34 0.20 0.70 0.10
1/2 0.500 144 0.19 23 0.20 0.75 0.10
5/8 0.625 150 0.19 14 Edge Start 0.10
3/4 0.750 145 0.19 14 Edge Start 0.10
1
1.000 160 0.19 4
Edge Start 0.12

Thermal Dynamics A80 CUTMASTER Specifications

General

Brand	Thermal Dynamics
Model	A80 CUTMASTER
Category	Welding System
Language	English
