Thermal Dynamics A80 CUTMASTER User Manual

CUTMASTER A80

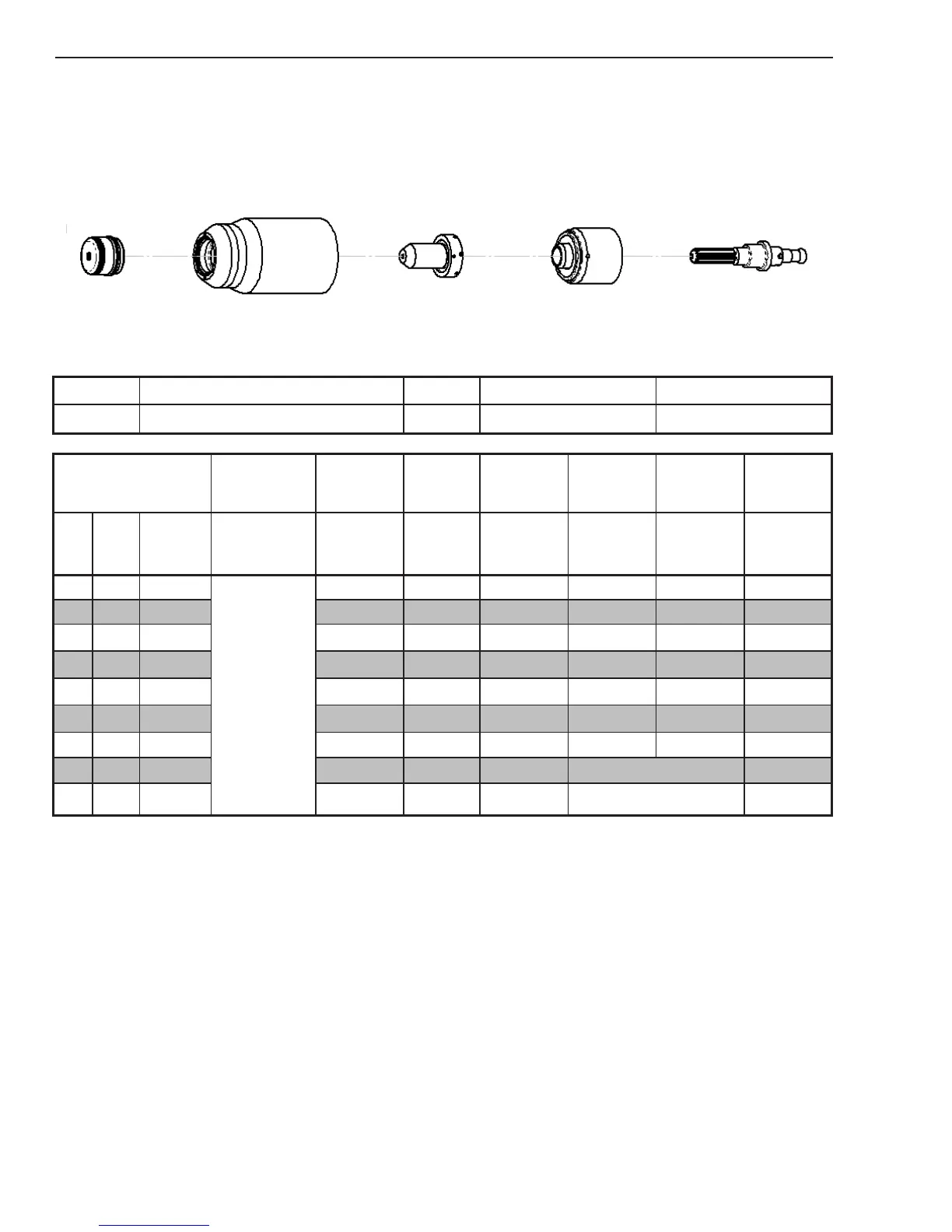

OPERATION 4T-44 Manual 0-4985
Stainless Steel
80A
Air Plasma / Air Shield
Shield Cap Maximum Life Shield Cup Tip Starter Cartridge Electrode
9-8239 9-8237 9-8211 9-8213 9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA)
(in) inch
PSI
(torch lead
length)
Volts
(in)
(ipm) (in) (sec) (in)
16
0.063
85 (25')
90 (50')
114 0.125 340 0.2 0.00
0.06
11
0.125
115 0.125 260 0.2 0.10
0.06
10
0.141
116 0.125 250 0.2 0.10
0.06
3/16 0.188
115 0.125 170 0.2 0.20
0.07
1/4 0.250
118 0.125 85 0.2 0.30
0.08
3/8 0.375
127 0.19 45 0.25 0.40
0.09
1/2 0.500
136 0.19 16 0.25 0.75 0.11
5/8 0.625
143 0.19 10 Edge Start 0.12
3/4
0.750
146 0.19 8 Edge Start 0.11
