CUTMASTER A120
PARTS LIST 6-2 Manual 0-4989
6.04 Replacement Power Supply Parts
Qty Description Catalog #
1 Regulator 9-0115
1 Filter Assembly Replacement Element 9-0116
1 Input Power Cord for 208 / 230 V Power Supply 9-0191
1 Input Power Cord for 400 V Power Supply 9-0216
6.05 Options and Accessories
Qty Description Catalog #
1 Single - Stage Filter Kit (includes Filter & Hose) 7-7507
1 Replacement Filter Body 9-7740
1 Replacement Filter Hose (not shown) 9-7742
2 Replacement Filter Element 9-7741
1 Two - Stage Filter Kit (includes Hose & Mounting Screws) 9-9387
1 Two - Stage Air Filter Assembly 9-7527
1 First Stage Cartridge 9-1021
1 Second Stage Cartridge 9-1022
1 ExtendedWorkCable(50/15.2m)withClamp 9-8529
1 Multi - Purpose Cart 7-8888
1 Automation Interface Kit
for Start/Stop, OK to move and Divided Arc Voltage) 9-8311
1 Automation Harness for Start/Stop and OK to move 9-9385
1 25'/7.6mCNCCableforAutomationInterfaceKit 9-1008
1 35'/10.7mCNCCableforAutomationInterfaceKit 9-1010
1 50'/15.2mCNCCableforAutomationInterfaceKit 9-1011
1 Nylon Dust Cover 9-7071
Art # A-02476

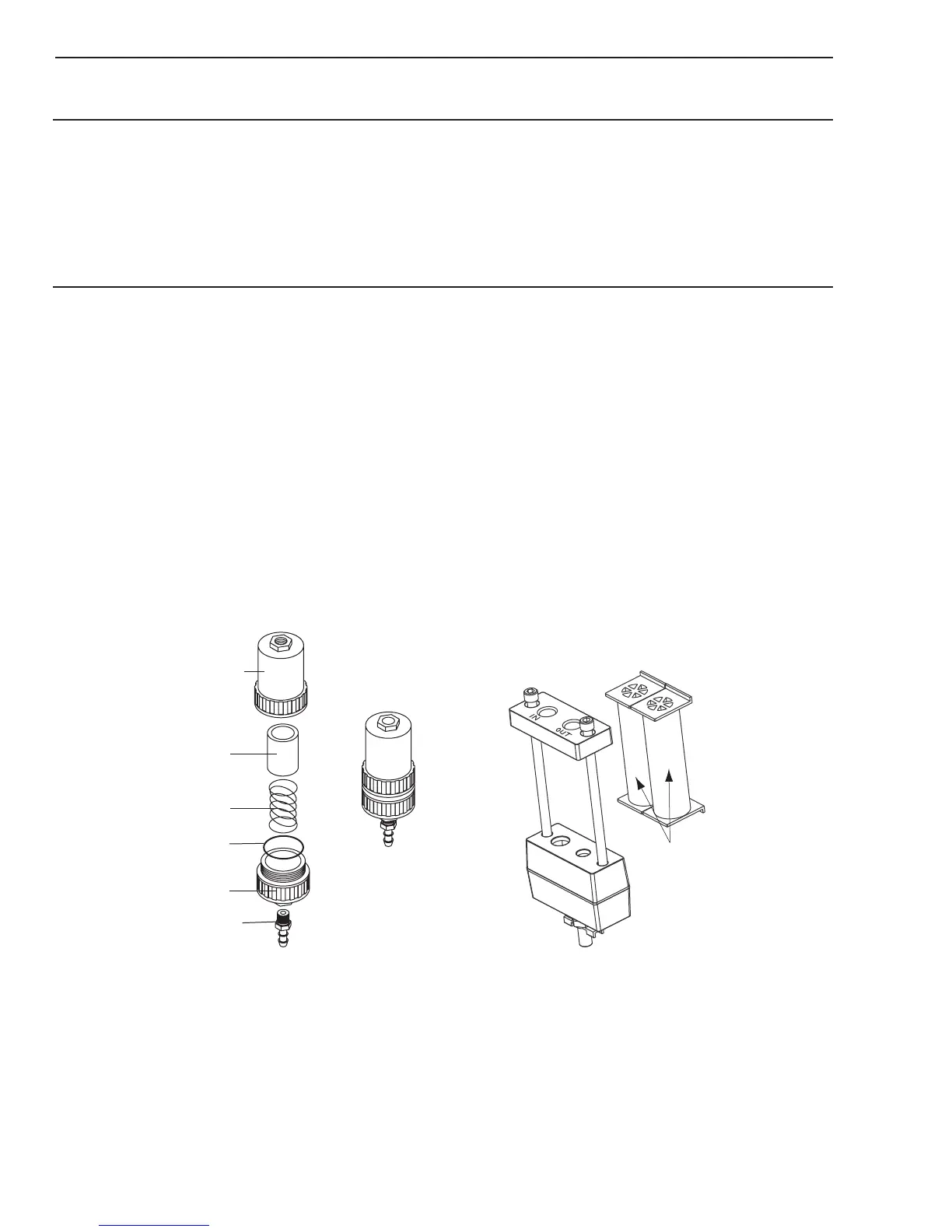

Filter
Element
(Cat. No. 9-7741)
Housing
Cover
Barbed
Fitting
Spring
Assembled Filter
O-ring
(Cat. No. 9-7743)
First & Second
Stage
Cartridges
(as marked)
Art # A-02942
Optional Single - Stage Filter Kit Optional Two - Stage Filter Kit
