Thermal Dynamics CUTMASTER A120 User Manual

CutMaster a120

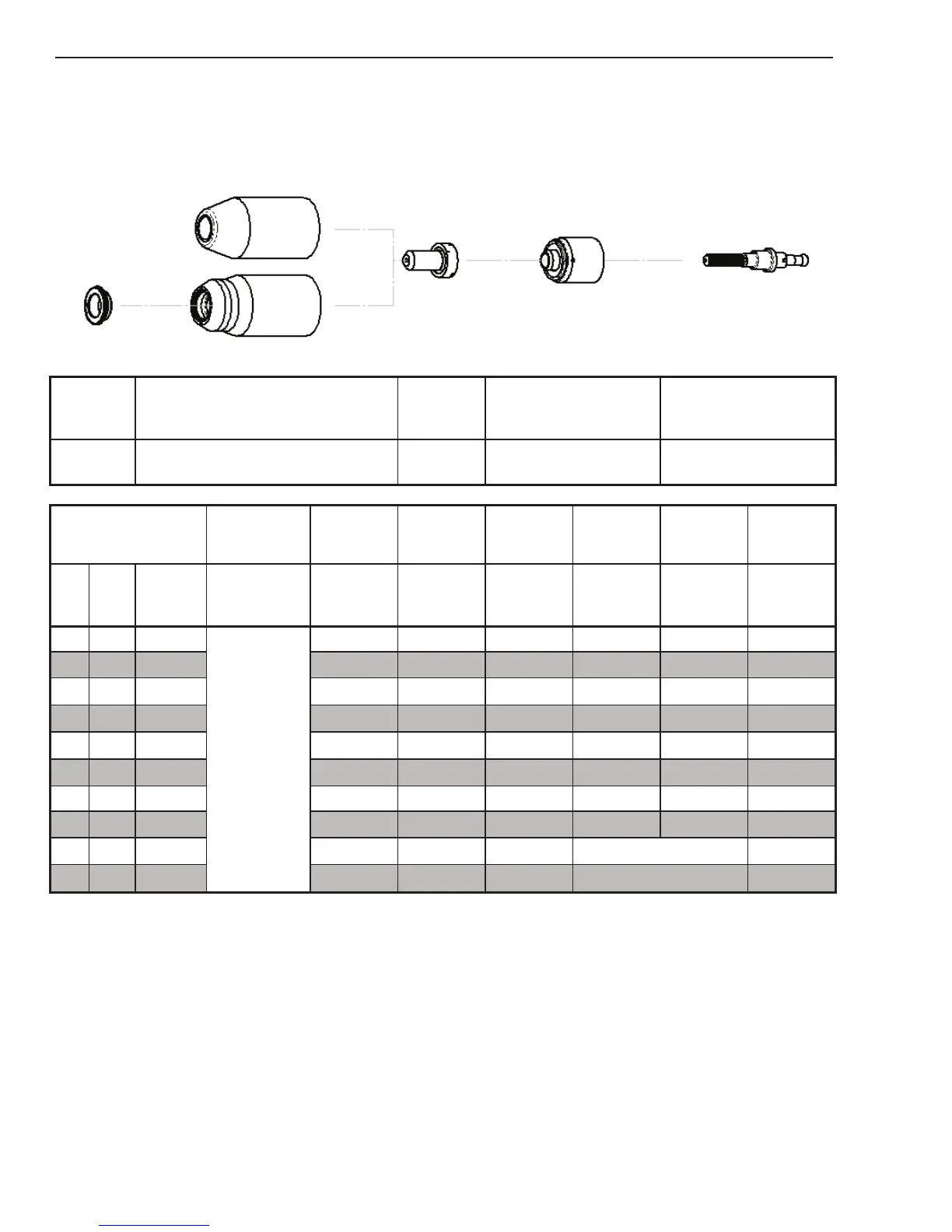

OPERATION 4T-18 Manual 0-4989
Stainless Steel
60A
Air Plasma / Air Shield
Deector
Standard Shield Cup
Maximum Life Shield Cup
Tip
Starter Cartridge
Heavy Duty Starter
Cartridge
Electrode
9-8243
9-8218
9-8237
9-8210
9-8213
9-8277
9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA)
(in) inch
PSI
(torch lead
length)
Volts
(in)
(ipm) (in) (sec) (in)
16
0.063
85 (25')
90 (50')
119 0.19 350 0.20 0.00 0.05
14
0.078 116 0.19 300 0.20 0.10 0.07
11
0.125 123 0.19 150 0.20 0.10 0.07
10
0.141 118 0.19 125 0.20 0.10 0.08
3/16 0.188 122 0.19 90 0.20 0.20 0.08
1/4 0.250 123 0.19 65 0.20 0.30 0.09
3/8 0.375 130 0.19 30 0.20 0.50 0.09
1/2 0.500 132 0.19 21 0.20 0.90 0.08
5/8 0.625 132 0.19 14 Edge Start 0.11
3/4 0.750 135 0.19 10 Edge Start 0.10
