Thermal Dynamics CUTMASTER A120 User Manual

CutMaster a120

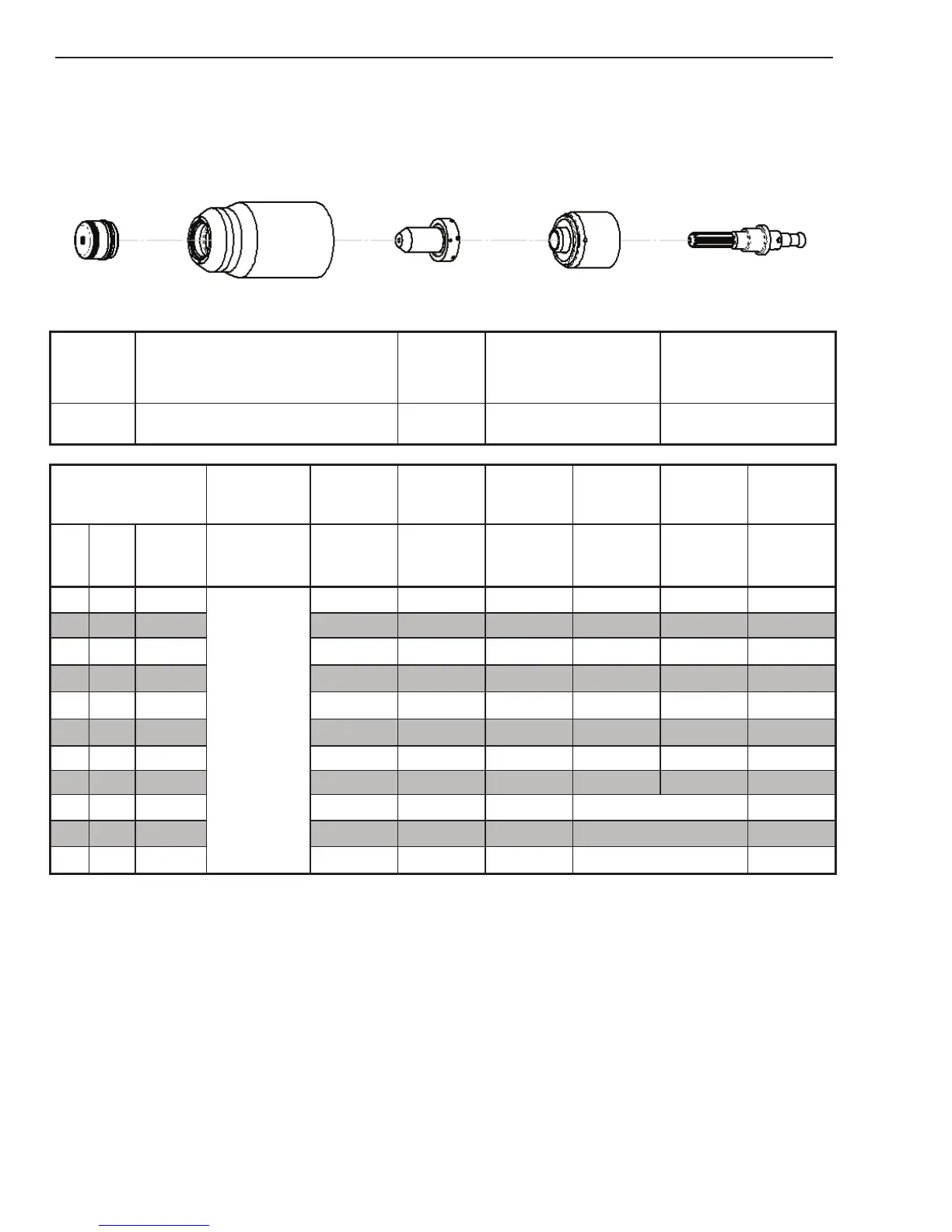

OPERATION 4T-40 Manual 0-4989
Mild Steel
60A
Air Plasma / Air Shield
Shield Cap Maximum Life Shield Cup Tip
Starter Cartridge
Heavy Duty Starter
Cartridge
Electrode
9-8238 9-8237 9-8210
9-8213
9-8277
9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA)
(in) inch
PSI
(torch lead
length)
Volts
(in)
(ipm) (in) (sec) (in)
16
0.060
85 (25')
90 (50')
128 0.19 250 0.20 0.00 0.09
14
0.075 129 0.19 237 0.20 0.10 0.09
11
0.120 126 0.19 200 0.20 0.10 0.08
10
0.135 128 0.19 142 0.20 0.10 0.09
3/16 0.188 132 0.19 115 0.20 0.20 0.09
1/4 0.250 134 0.19 80 0.20 0.30 0.08
3/8 0.375 132 0.19 34 0.20 0.70 0.10
1/2 0.500 144 0.19 23 0.20 0.75 0.10
5/8 0.625 150 0.19 14 Edge Start 0.10
3/4 0.750 145 0.19 14 Edge Start 0.10
1 1.000 160 0.19 4 Edge Start 0.12
