CUTMASTER A40
INTRODUCTION 2-2 Manual 0-4978

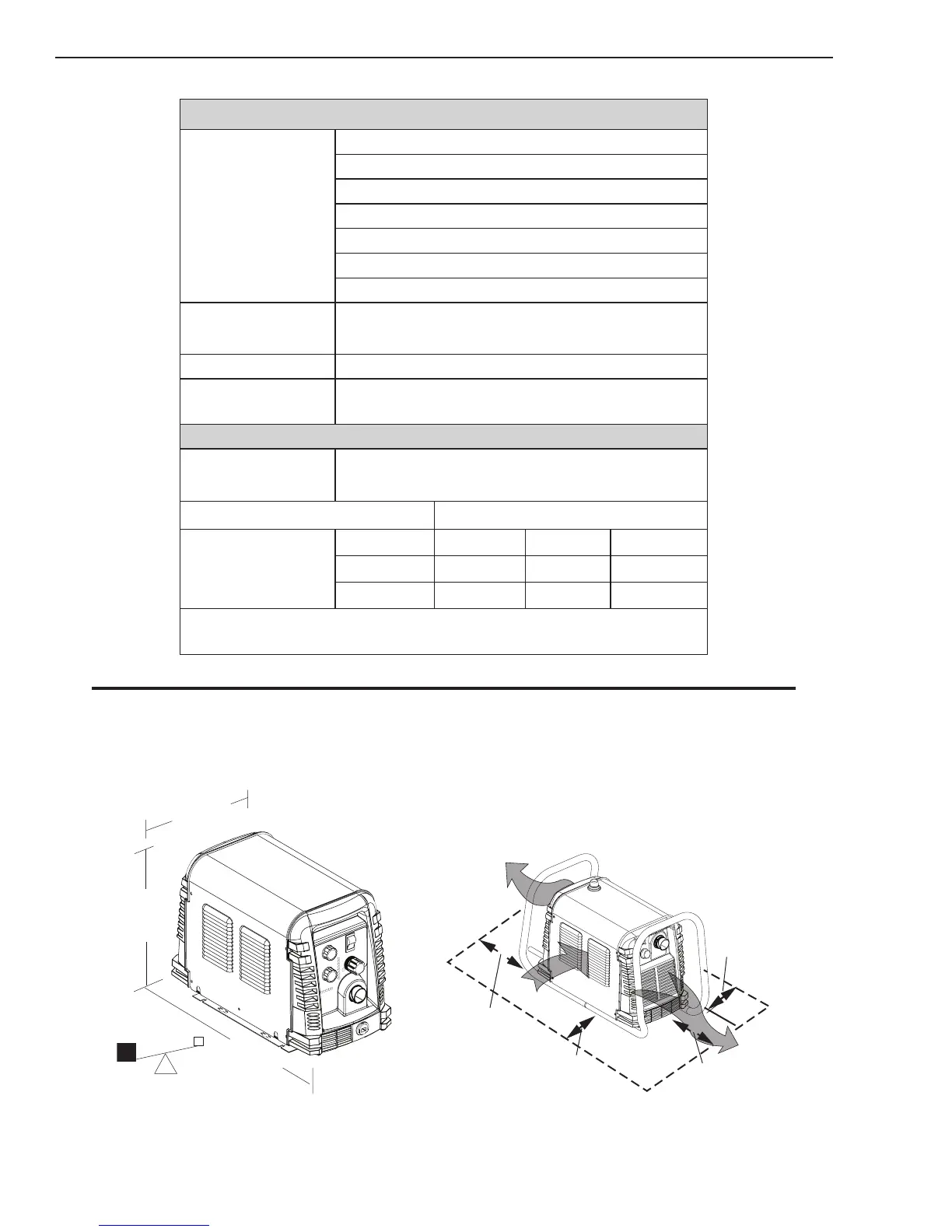

2.04 Power Supply Specifications
CutMaster A40 Power Supply Specifications
Input Power
208/230VAC(187-253VAC),SinglePhase,60Hz
230VAC(187-253VAC),ThreePhase,50/60Hz
380VAC(360-440VAC),ThreePhase,50/60Hz
400VAC(360-440VAC),ThreePhase,50/60Hz
460VAC(414-506VAC),SinglePhase,60Hz
460VAC(414-506VAC),ThreePhase,60Hz
600VAC(540-630VAC),ThreePhase,60Hz
Input Power Cable
Power Supply includes input cable.
Cable for 208/230V input power includes molded plug.
Output Current 20 - 60 Amps, Continuously Adjustable
Power Supply Gas
FilteringAbility
Particulatesto5Microns
CutMaster A40 Power Supply Duty Cycle *
Ambient Temperature
DutyCycleRatings@40°C(104°F)
OperatingRange0°-50°C
IEC Rating
AllUnits
Duty Cycle 40% 60% 100%
Current
60 Amps 50Amps 30 Amps
DC Voltage
104 100 92
*NOTE:Thedutycyclewillbereducediftheprimaryinputpower(AC)islow
ortheoutputvoltage(DC)ishigherthanshowninthischart.
NOTE
IEC Rating is determined as specified by the International Electro-Technical Commission. These specifica-
tions include calculating an output voltage based upon power supply rated current. To facilitate comparison
between power supplies, all manufacturers use this output voltage to determine duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
20.8"
0.528 m
43 lb / 19.5 kg
10"
254 mm
13.78"
350 mm
Art # A-08305
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
