Manual 0-4978 A-3 APPENDIX

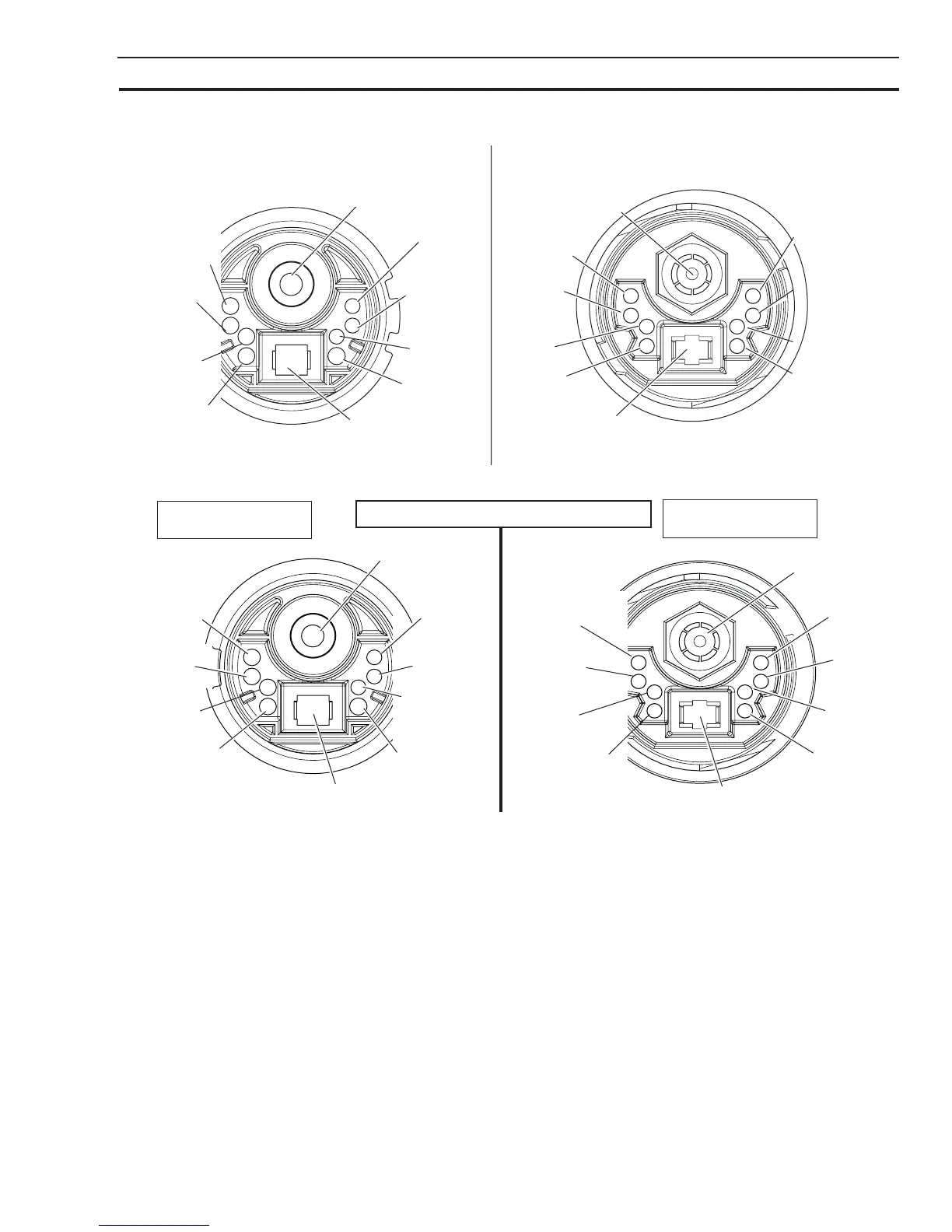

APPENDIX 3: TORCH PIN - OUT DIAGRAMS
A. Automation SL100SV Torch Pin - Out Diagram
ATC Female Receptacle -
Front View
ATC Male Connector -
Front View
Negative / Plasma
Pilot
Negative / Plasma
6 - Open
7 - Torch
Solenoid
5 - Torch
Solenoid
8 - Open
8 - Open
5 - White /
- Torch
Solenoid
7 - Green /
- Torch
Solenoid
5
6
7
8
1
2
3
4
Pilot
1
2
3
4
5
6
7
8
3 - Open
2 - Orange /
PIP
1 - Black /
PIP
4- Open
2 - PIP Circuit
1 - PIP Circuit
3 - Not Used
4 - Not Used
6 - Open
Art # A-07114
B. Machine SL100 Torch Pin - Out Diagram
ATC Female Receptacle
Front View
ATC Male Connector
Front View
Negative / Plasma
3 - White -
Pendant
Connector
4- Black -
Pendant
Connector
2 - Orange /
PIP
1 - Black /
PIP
Pilot
2 - PIP
1 - PIP
6 - Open
7 - Open
5 - Open
8 - Ground
8 - Green -
Pendant
Connector
Ground
5 - White /
Not Used
7 - Green /
Not Used
6 - Open
UNSHIELDED MACHINE TORCH
3 - Switch
4 - Switch
Art # A-03799
Negative / Plasma
Pilot
1
2
3
4
5
6
7
8
5
6
8
1
2
3
4
7
