Thermal Dynamics CutSkill PCH-42 Torch User Manual

Introduction 2-2 Manual 0-4688

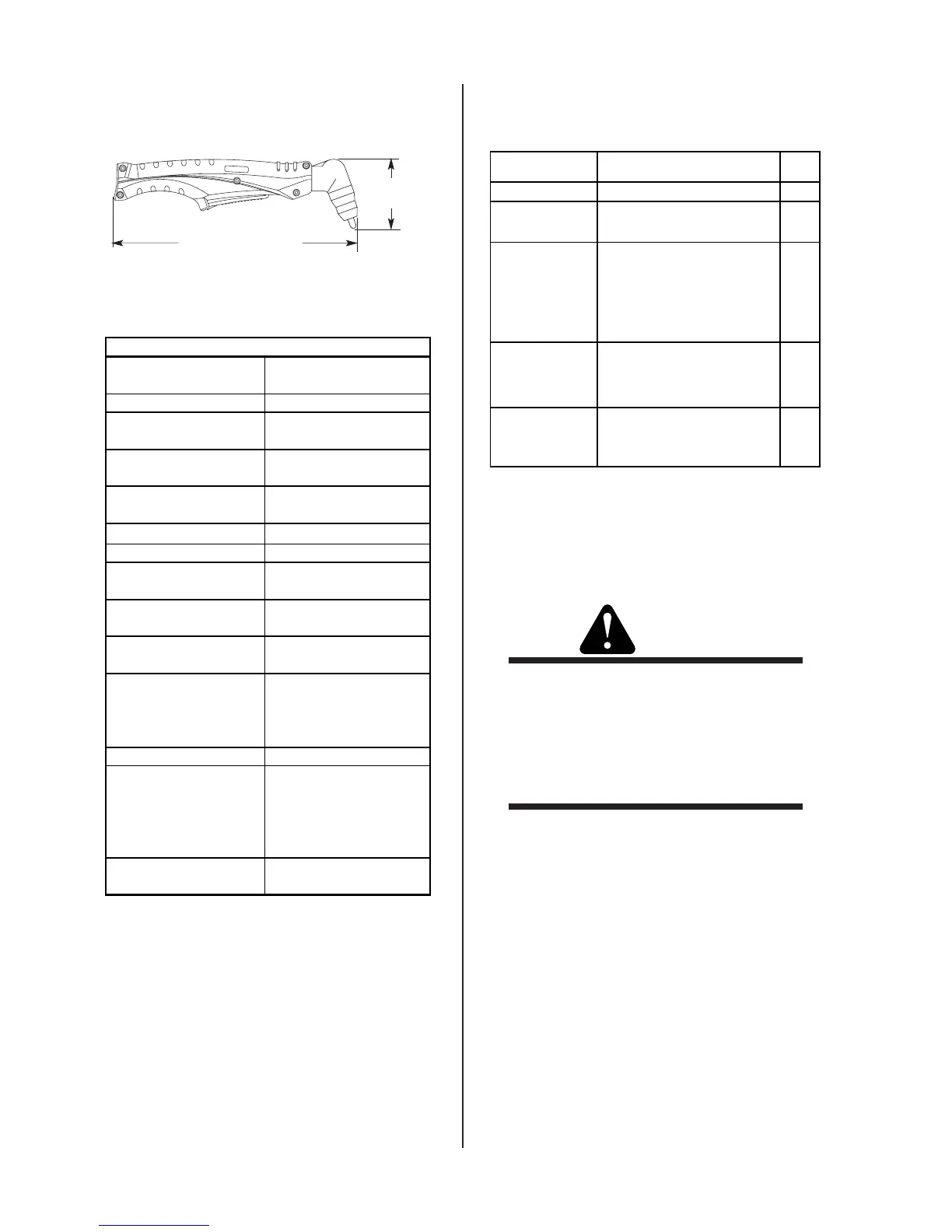

2.04 Torch Specifications
Art # A-0465
3
10.5 in (266.7 mm)
3 in
(76.2 mm)
Torch Configuration
Torch Head at 70° to
Torch Handle
Torch Leads Length
20 feet / 6.1 m
Duty Cycle
100% @ 40 Amps
@ 200 scfh
Ambient
Temperature
104° F
40° C
Maximum Current
40 Amps, DC,
Straight Polarity
Voltage (V
peak
)500V
Arc Striking Voltage 12kV
Type of Cooling
Ambient air and gas
stream through torch
Parts-in-Place
Built-in Switch
in Torch Head
Gas Requirement
Single Gas,
Compressed Air Only
Input
Gas Pressure
65 psi (4.5 bar)
(.45MPa)-
125 psi (8.6 bar)
(.86MPa)
Minimum Gas Flow
130 scfh (61 lpm)
Direct Contact Hazard
For operation with
exposed tip the
recommended standoff
height is
1/8 - 3/8" (3-9 mm).
Plasma Power
Supply Used With
35C
PCH-42 Torch Ratings
2.05 System Contents
Description
ITEMS
Q'ty
Power source Model 35C 1
Torch Set
PCH-42, with 20'
(6.1 m) leads 1
Accessories &
Consumables
Air Regulator
Work Cable
Manual
Torch Electrodes
Torch Tips
1
1
1
2
3
Input Power
Cable U.S. /
CAN.
3 Meter NEMA 10 AWG /
4.8 mm
2
with 6 - 50 P
molded plug
1
Input Power
Cable Outside
of U.S. / CAN.
3 Meter 3x2.5 sq mm
rubber wire
1
2.06 Transporting Methods
Lift unit with handle on top of case. Use handcart or
similar device of adequate capacity for transporting.
WARNINGS
ELECTRIC SHOCK can kill. DO NOT
TOUCH live electrical parts. Disconnect input
power from supply before moving the power
source.
FALLING EQUIPMENT can cause serious per-
sonal injury and equipment damage.
