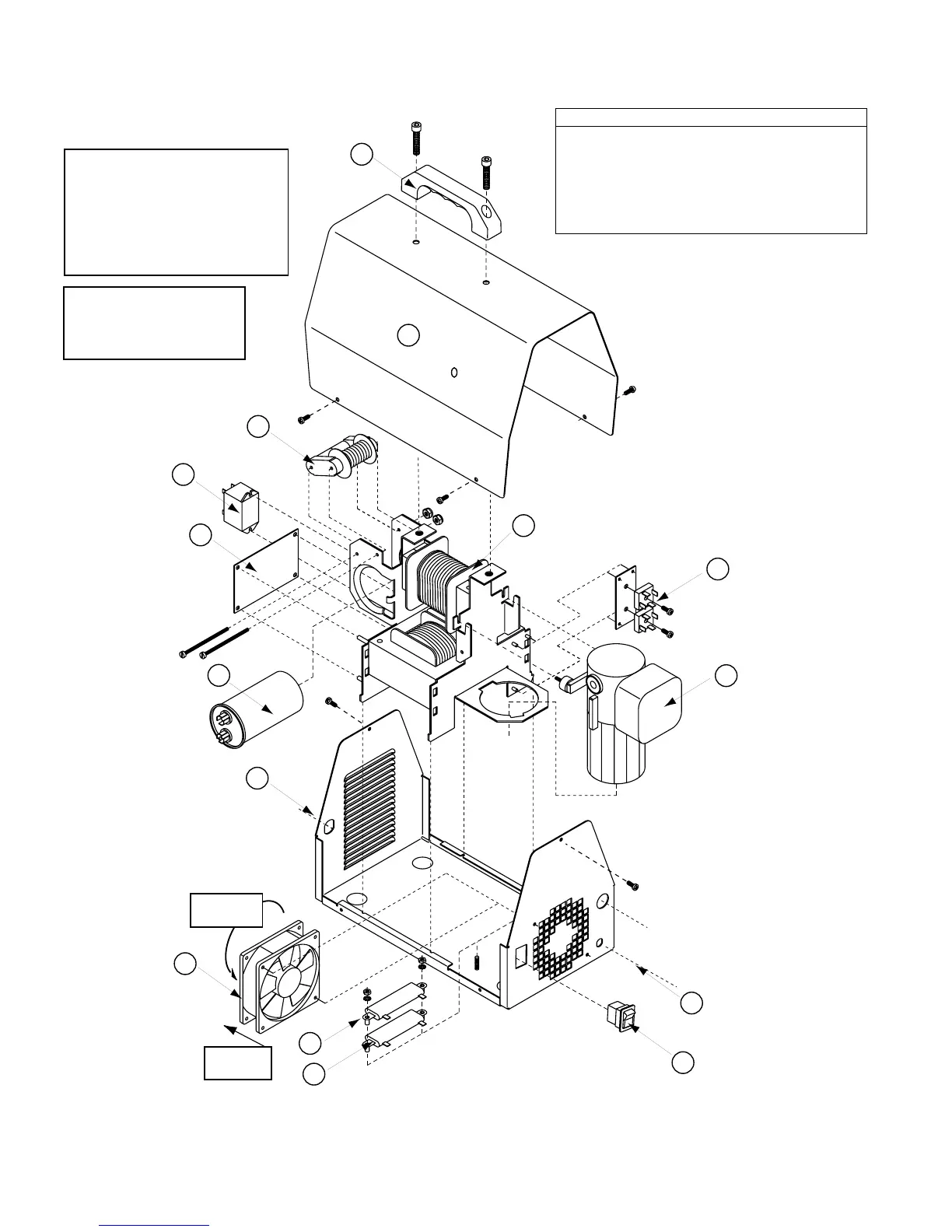

Operating Manual 0-2682 23 DRAG-GUN Plasma Cutter
(BR2)
(BR1)
* For illustration purposes, the
Transformer/Inductor Assembly
is shown separated from the
Chassis. The Transformer/Inductor
/Chassis is actually one assembly
and should not be disassembled
for any field repairs.
Rotation
Direction
Chassis
A-02337
Torch & Leads
A Screw, #6-32 x 3 3/4 Lg, Phil Pan Hd, Zinc
B #6-32 Regular Nylon Lock Nut, Zinc Plated
C 5/16-18 x 1 3/4 Unc Cap Socket Head Bolt
D 10-32 x .5 Pph Swageform Stl Zn. Parker Kalon
E Screw, Black, 6-32 x 1/2 Pph, Swageform, Steel
F 10-32 Kepnut w/Star Washer Mild Steel
Air Flow
Direction
HARDWARE QTY
2
2
2
4
2
2
NOTE: Replacement hardware can be purchased locally.
F
F
E
E
B
B
D
D
D
C
C
A
A
11
12
To remove cover, unfasten:
• 4 side panel screws
• 2 handle screws
• 2 end panel screws
2
15
1
14
6
3
4
8
13
9
10
7
16
