APPENDIX I: CABLING DETAILSAPPENDIX I: CABLING DETAILS
APPENDIX I: CABLING DETAILSAPPENDIX I: CABLING DETAILS
APPENDIX I: CABLING DETAILS

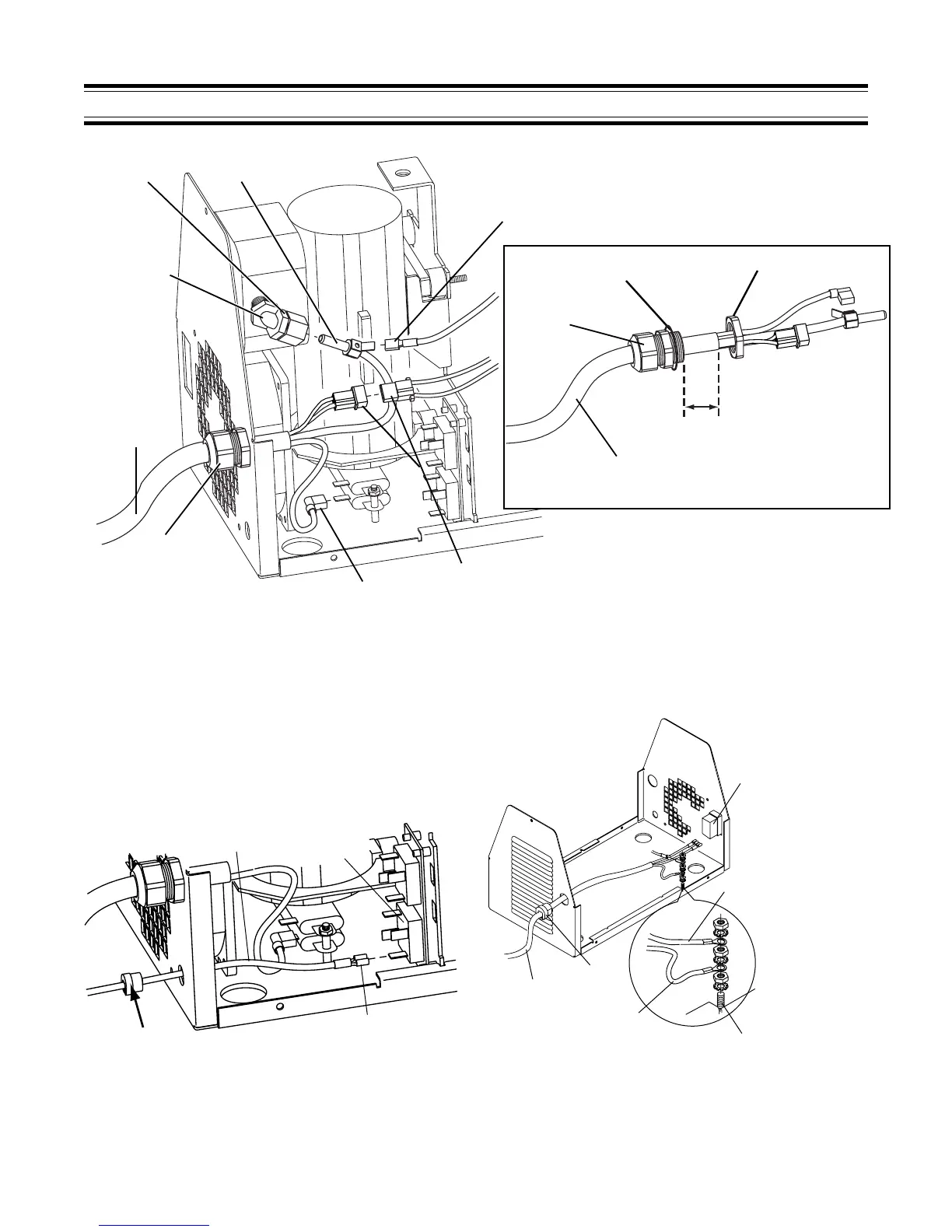

Torch and Leads Replacement
Work Cable Replacement Input Power Cable Replacement
Work Cable
Strain Relief
(Install 5 1/2" from Faston)
A-02011
Work Cable Faston
(Connect to mounting
tab at bottom of Rectifier
)
Bridge
Rectifier
Strain
Relief
Primary
Input Power
Cable
A-02653
Green Wire
(from Primary
Input Power Cable)
Green Wire with Tracer
(Connect to
Compressor Frame)
Ground Stud
ON/OFF Input
Power Switch
Torch Leads Assembly
Strain Relief Nut
Strain Relief
1" Clearance
Strain
Relief
Torch Lead Faston Connector (Red)
(Connect to Bottom Resistor)
2-Pin Connectors
Torch
Lead
Faston Connector
to CD Coil
90˚ White
Nylon Fitting
Brass Torch
Lead Fitting
A-02009
Nylon Nut
Front Panel
Hole Location
Note: Do not remove strain relief from torch lead.
