Manual 0-2888 2-3 SPECIFICATIONS
Torch Specifications
The Torch provides cutting capacity of up to 3/8 inch / 9.5 mm at 30 amperes.

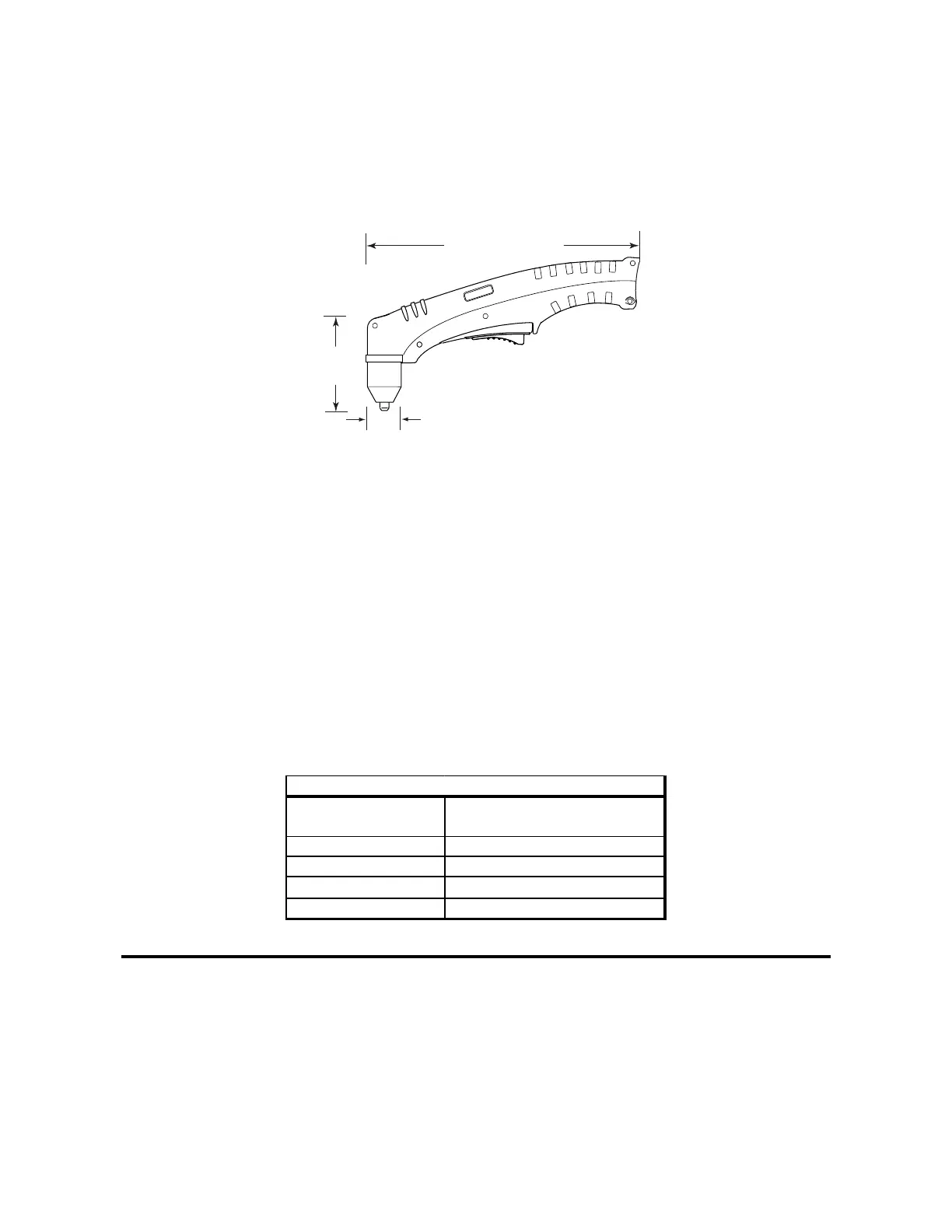

A. Torch Configuration and Dimensions
The torch head is at 75° to the torch handle. The torch includes a torch handle and torch trigger assembly.
9.5" (241 mm)
3.75"
(95 mm)
1.17" (29 mm)
A-03322
Torch Configuration and Dimensions
B. Torch Leads Lengths
Leads are available in 20 ft (6.1 m) lengths.
C. Parts-In-Place (PIP)
Torch has built-in switch.
12 vdc circuit rating
D. Type of Cooling
Combination of ambient air and gas stream through torch
E. SL60 Torch Ratings (Refer to Note)
Ambient
Tem
p
erature
104° F
(40° C)
Duty Cycle
100% @ 60 Amps @ 400 scfh
Maximum Current
60 Amps
Voltage (V
peak
)
500V
Arc Striking Voltage
7kV
SL60 Torch Ratin
g
s
NOTE
Ratings shown apply to the SL60 Torch only. Refer to the Specifications chart on page 2-1 for CutMaster 38 data.
F. Plasma Power Supply Used With
• Thermal Dynamics CutMaster 38
