INSTALLATION 3-4 Manual 0-2888
C. Installing Optional Single - Stage Air Filter
An optional filter kit is recommended for improved filtering with compressed air, to keep moisture and debris out of
the torch.
1. Attach the Single - Stage Filter Hose to the Inlet Port.
2. Attach the Filter Assembly to the filter hose.
3. Connect the gas line to the Filter. The illustration shows typical fittings as an example.
NOTE
For a secure seal, apply thread sealant to the fitting threads, according to the maker's instructions. Do Not use
Teflon tape as a thread sealer, as small particles of the tape may break off and block the small gas passages in the torch.
Connect as follows:

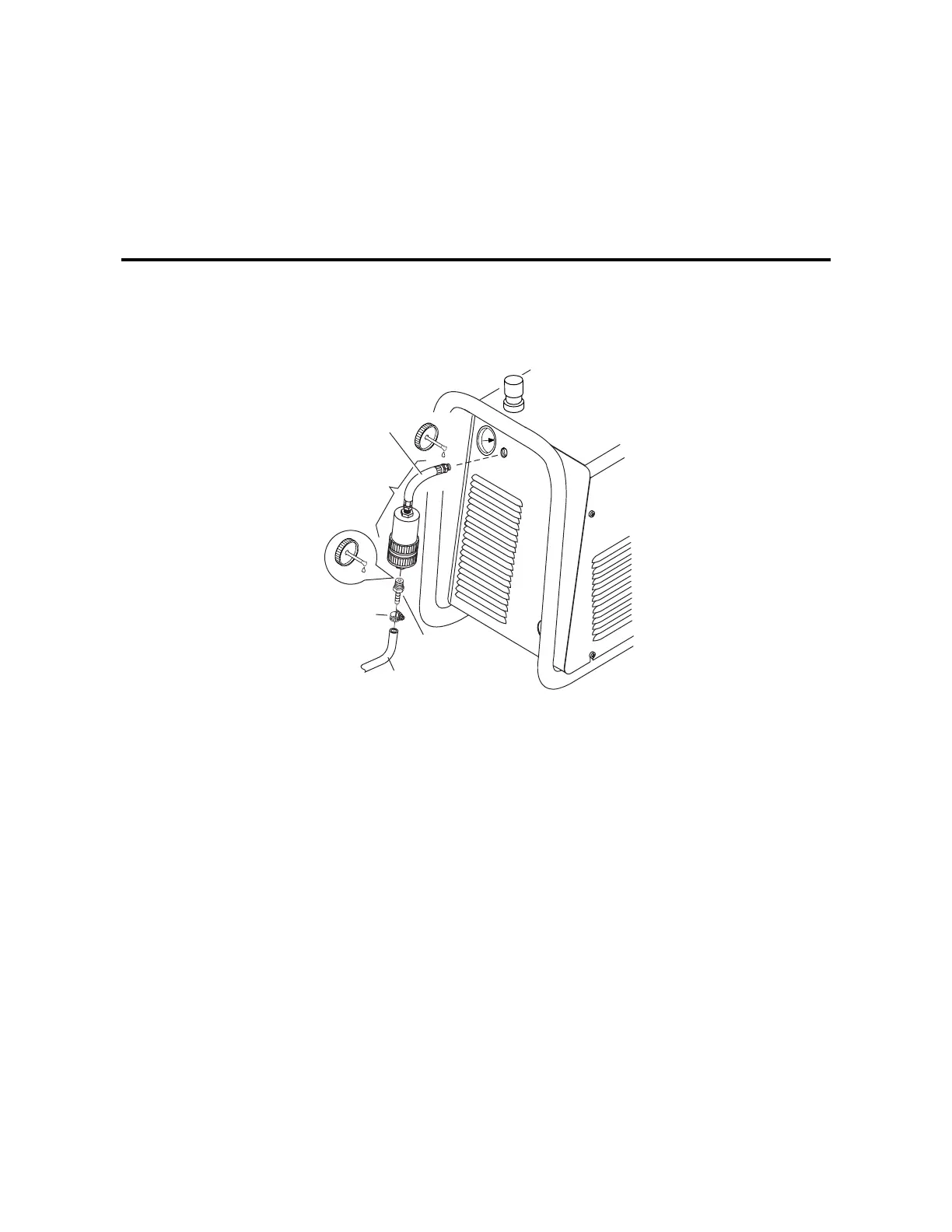

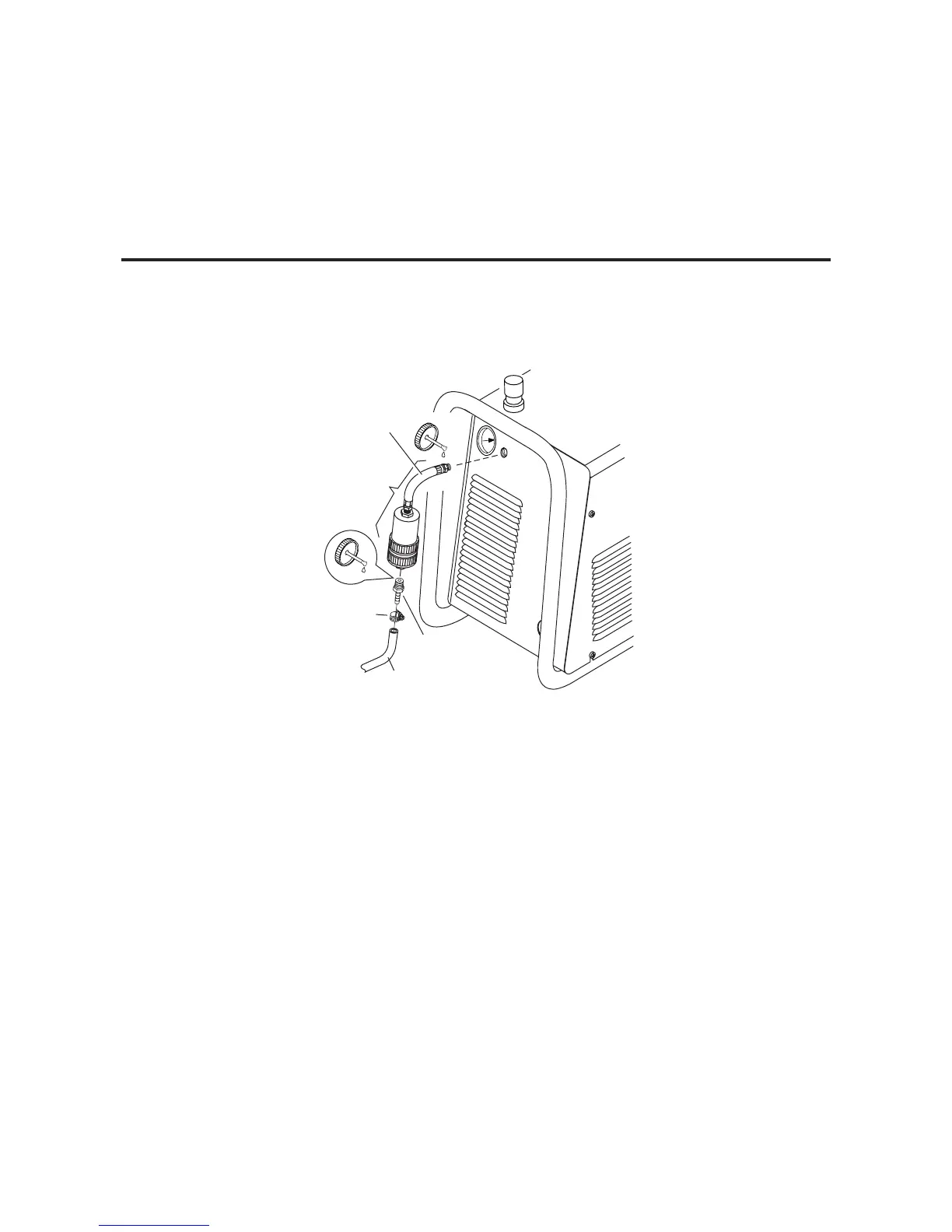

A-03281
1/4 NPT
Hose Fitting
Hose
Clamp
Gas Supply Hose
Filter Hose
Single-Stage
Filter Kit
No. 7-7507
Optional Single - Stage Filter Installation
