Servicing The Unit
204
Positioning the Evaporator Fan Blade
Place fan blade on motor shaft with hub located on the outside of the blade for proper airflow direction.
When mounting the fan blade and hub assembly on the fanshaft, center the assembly in the orifice.
Position the front (top) of the fan blade hub 13 mm (0.5 in.) in from the outer edge of the fan orifice.

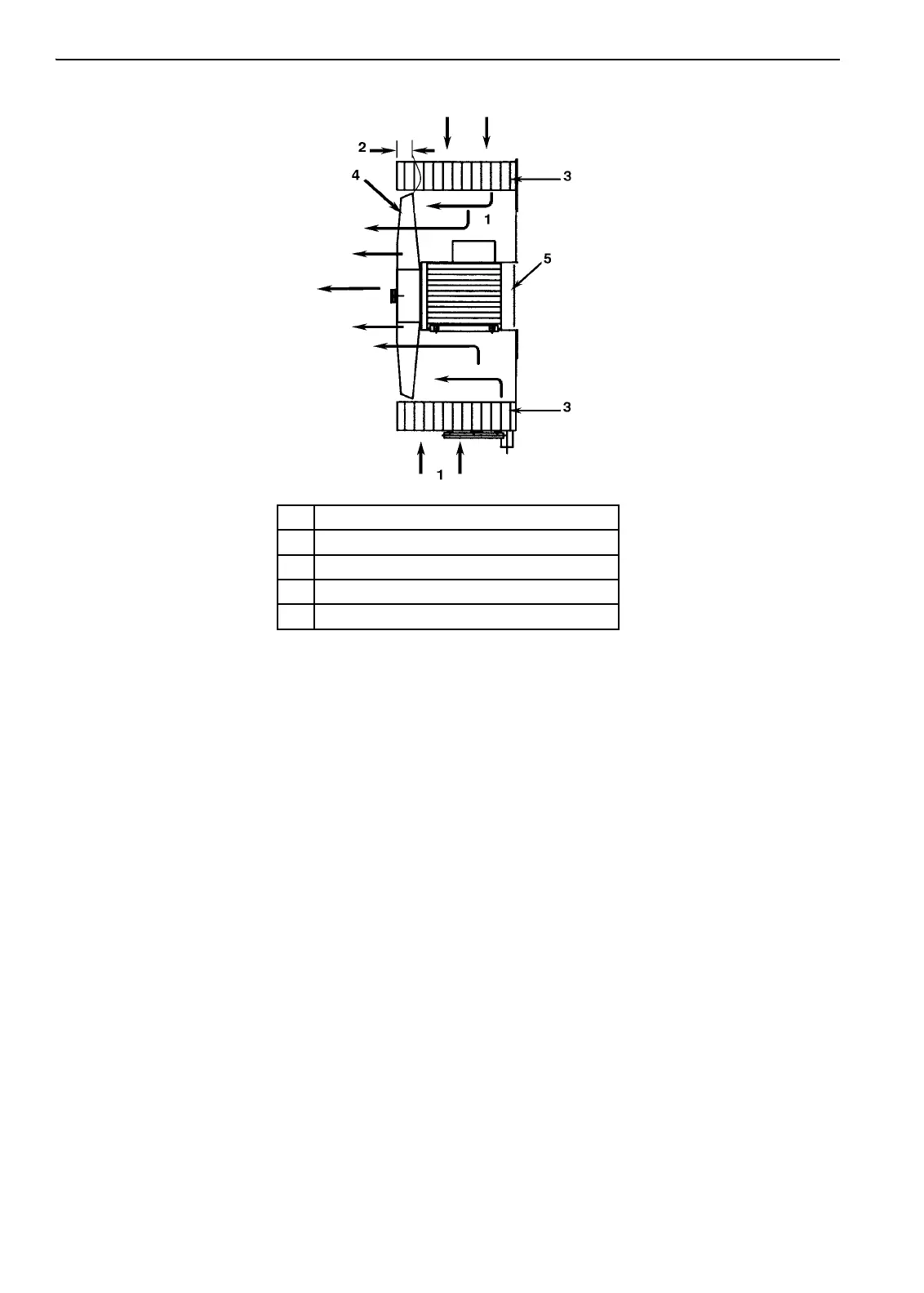

1. Airflow Direction
2. 10 mm (0.4 in.)
3. Condenser Coil
4. Condenser Fan Blade
5. Condenser Motor
Figure 174: Condenser Fan Blade Placement
