Navigating the Controller Operating Menu
67
• Setpoint/Control Menu – Menu screens in this group are used to enter allowable setpoints. Setpoint
menu include: set Cold treatment (CT), Multiple Temp Set (MTS), Optiset, Temperature Setpoint,
Controlling Mode, Watercool, Humidity Control, Humidity Setpoint, AVL Open Value, Defrost
Terminate Temp (USDA), Defrost Interval (USDA), Special 24-48H Defrost, USDA Trip, AFAM
Mode, AFAM Delay, AFAM Rate, CO2 Max, and O2 Min.
• Alarm List Menu - Display a list of alarm code(s) present.
• Warning List Menu - Display a list of warning code(s) present.
• Configuration Menu - Menu screens in this group are used to change the functionality of the unit
operation. Include: set Unit Setting, Unit Configuration, Sensor, Options, and Miscellaneous Settings.
• Datalogger/Log View Menu - Menu screens in this group display log information or log function.
Includes: Inspect Log, set Trip Start, and Set Log Interval.
• States/Info Menu - Menu screens in this group give information on the following, Cold treatment
(CT) state, Multiple Temperature Setpoint (MTS) state, PTI, Input – Output, RMM, RMM+, Defrost,
Water Cooled Condenser, Runtime Counter, Expansion Module 1, Expansion module 2,
Miscellaneous Feature, External Bus Devices.
A complete listing of the controller operating menu is located on an 11’ x 17’ fold out in the Wiring and
Diagram section in the back of the manual (see last page in book). It is designed to be folded out so you
can continuously view it as you are learning how to navigate the MP-4000 Controller Menu. It is
recommended to fold this menu out and leave it folded out until you become familiar with the controller
menu.
Changing Screen Contrast
Change the screen contrast temporarily as follows:
1. Press and hold the F1
INFO KEY until the Contrast Screen appears.
.

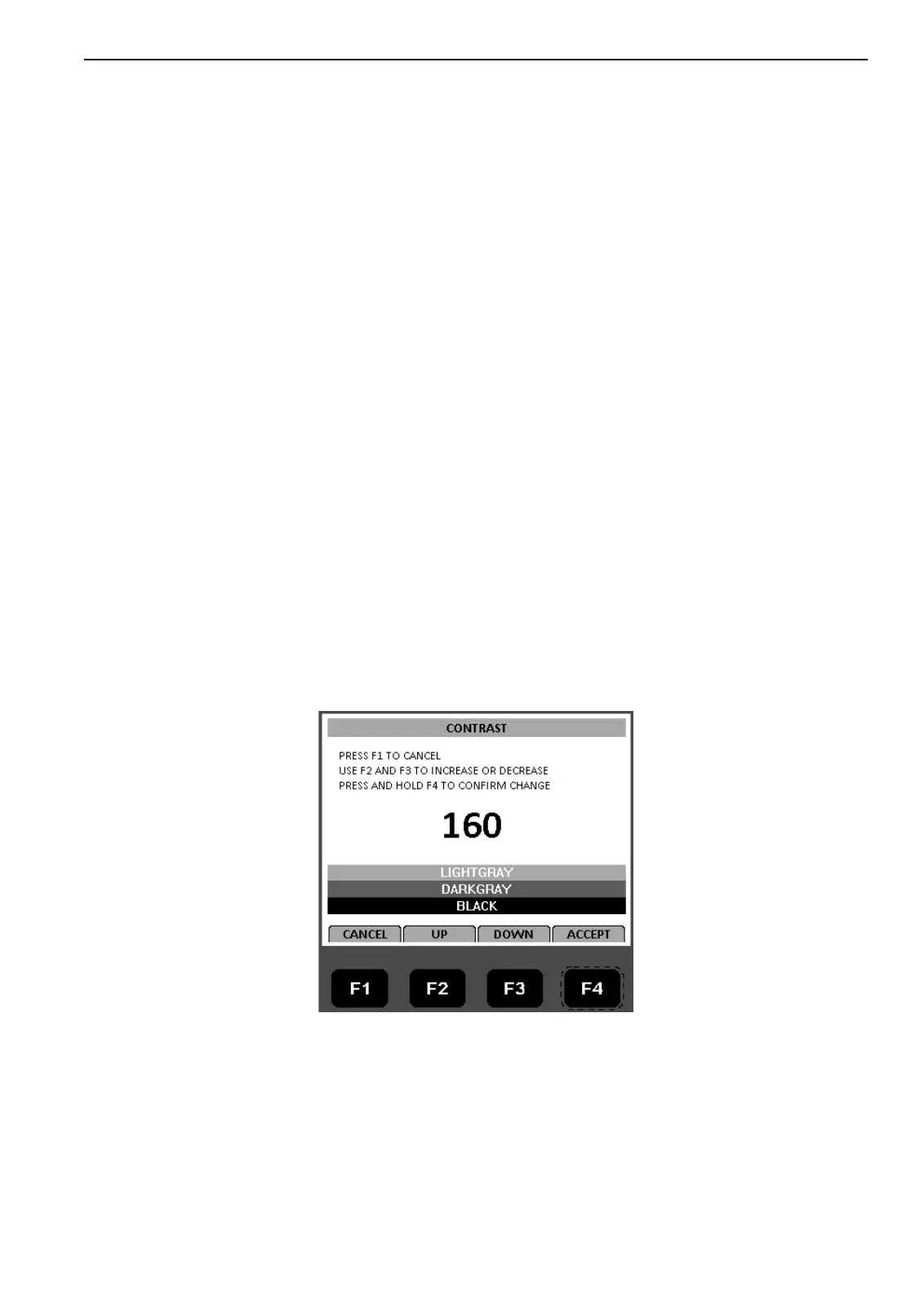

Figure 38: Contrast Screen
2. Press the F2 OR F3 UP/DOWN KEYS to scroll the Contrast up or down.
3. Press and hold the F4
ACCEPT KEY to confirm the new Contrast Setting.
