Evolution One Series Spectrophotometers
Spectrophotometer Basics
10 Evolution One Series Spectrophotometer User Guide Thermo Scientific

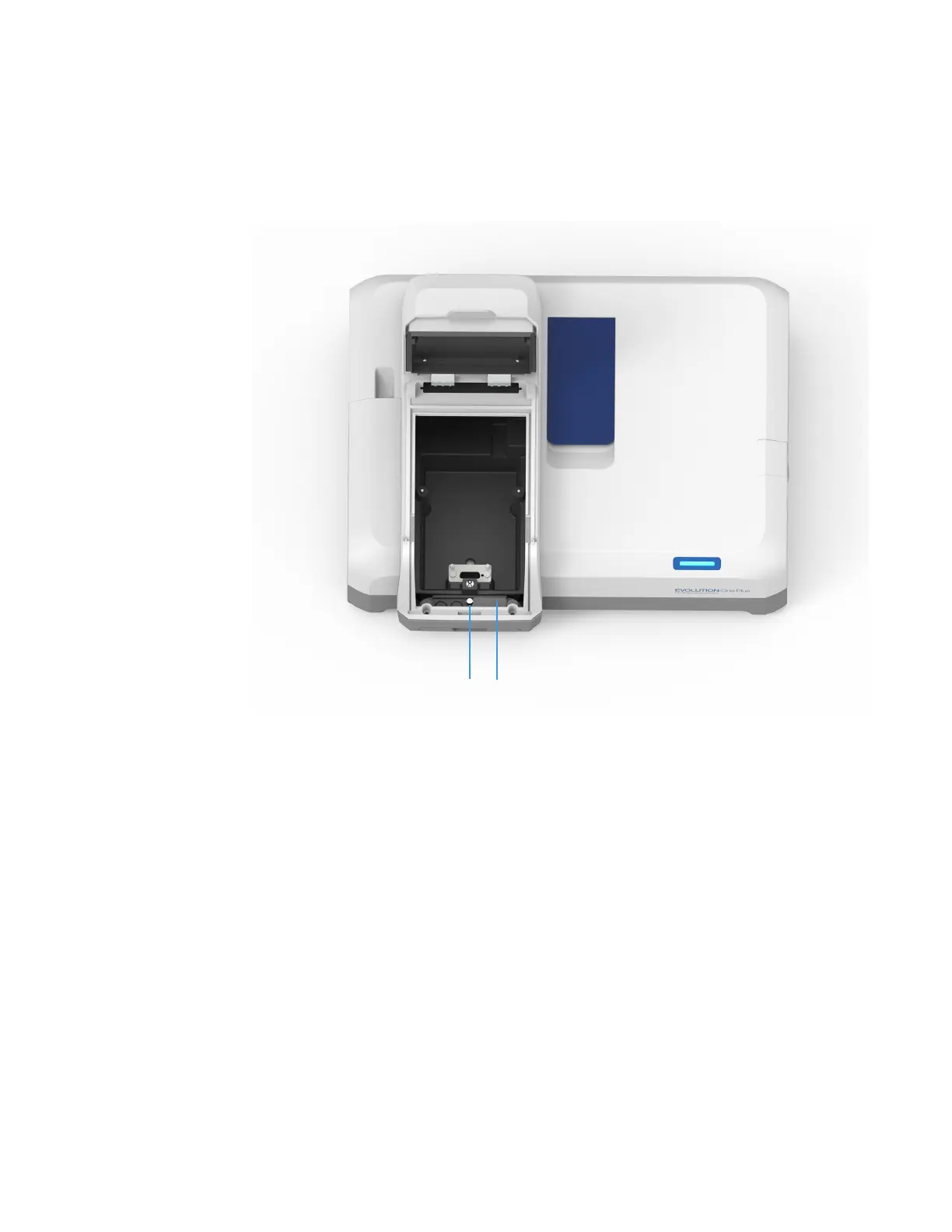

Tubing Access Panel
Open fluid chambers for routing fluid from the instrument to an installed accessory are
located inside the sample compartment.
The connectors fit 1/4-inch internal diameter tubing. An adapter may be required to connect
the tubing to the accessory or recirculator. Purchase adapters separately.
Cords and cables for installed accessories can also be routed behind this panel. Push the cord
through the foam and the opening below it. The panel itself can be removed temporarily to
accommodate a large connector. To remove the panel, loosen the screw.
Related Topics
Installing a Liquid Thermostatted Accessory
