Evolution One Series Spectrophotometers
Spectrophotometer Basics
Thermo Scientific Evolution One Series Spectrophotometer User Guide 5
Spectrophotometer Components

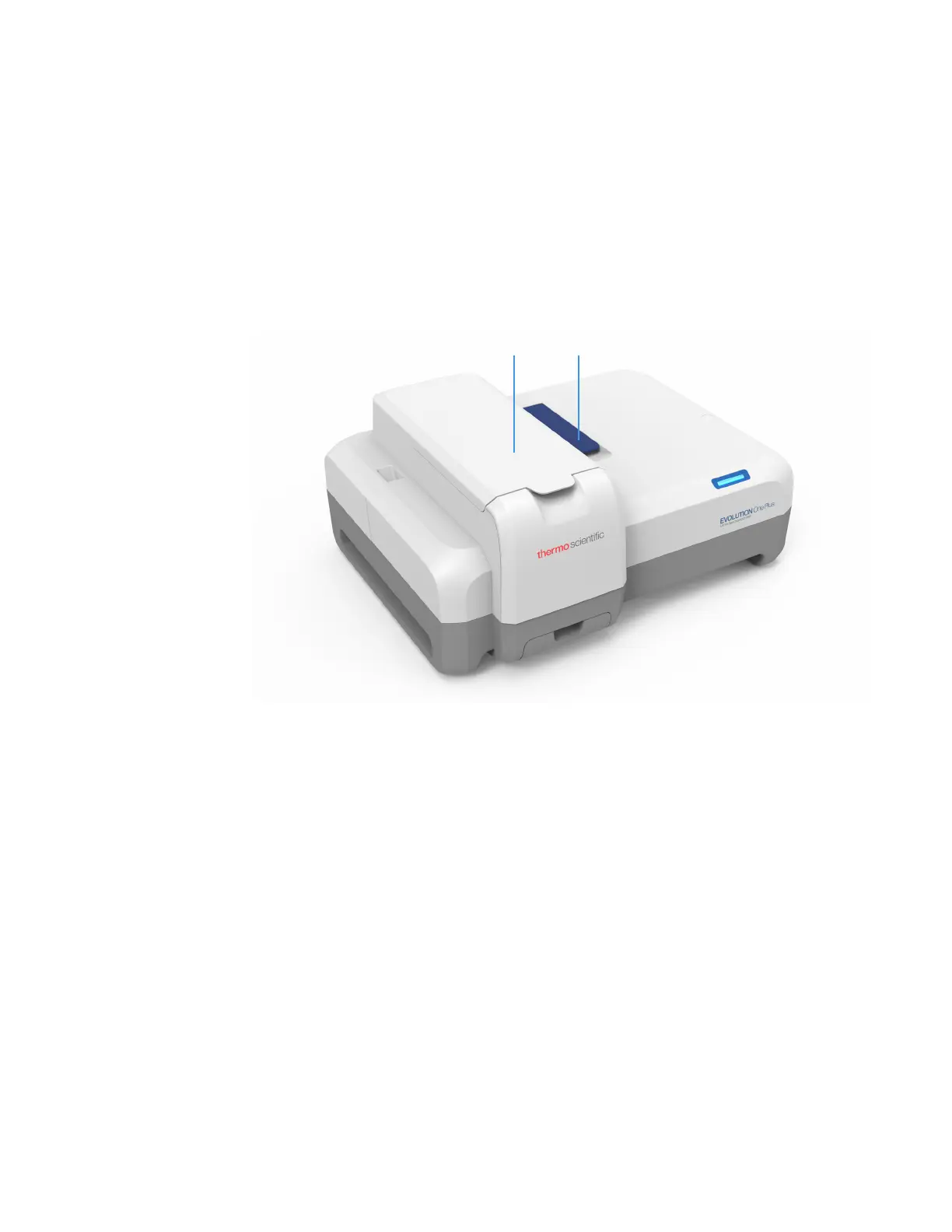

The following illustration identifies major components visible on the outside of a typical
spectrophotometer. (Some components may not be present on all instruments.)
Spectrophotometer Z-height
The z-height (distance from the bottom of the cell to the center of the light beam) for the
spectrophotometer is 8.5 mm.
Related Topics
Opening and Closing the Sample and Reference Compartment Doors
Computer Control
Insight Pro Software
Opening and Closing the Sample and Reference Compartment Doors
To open the sample compartment, press the button on its door. To close the compartment,
slide the door forward until it latches.
To access the reference compartment, lift or lower the door.
Related Topics
Sample Compartment Front Panel
Tubing Access Panel
Sample compartment Reference compartment
