Introduction
Controls and Indicators
Thermo Scientific TSQ Endura and TSQ Quantiva Hardware Manual 7
Power Entry Module
The mass spectrometer receives line power at 230 Vac ±10%, 5 A, 50/60 Hz through the
right-side power entry module (Figure 3).

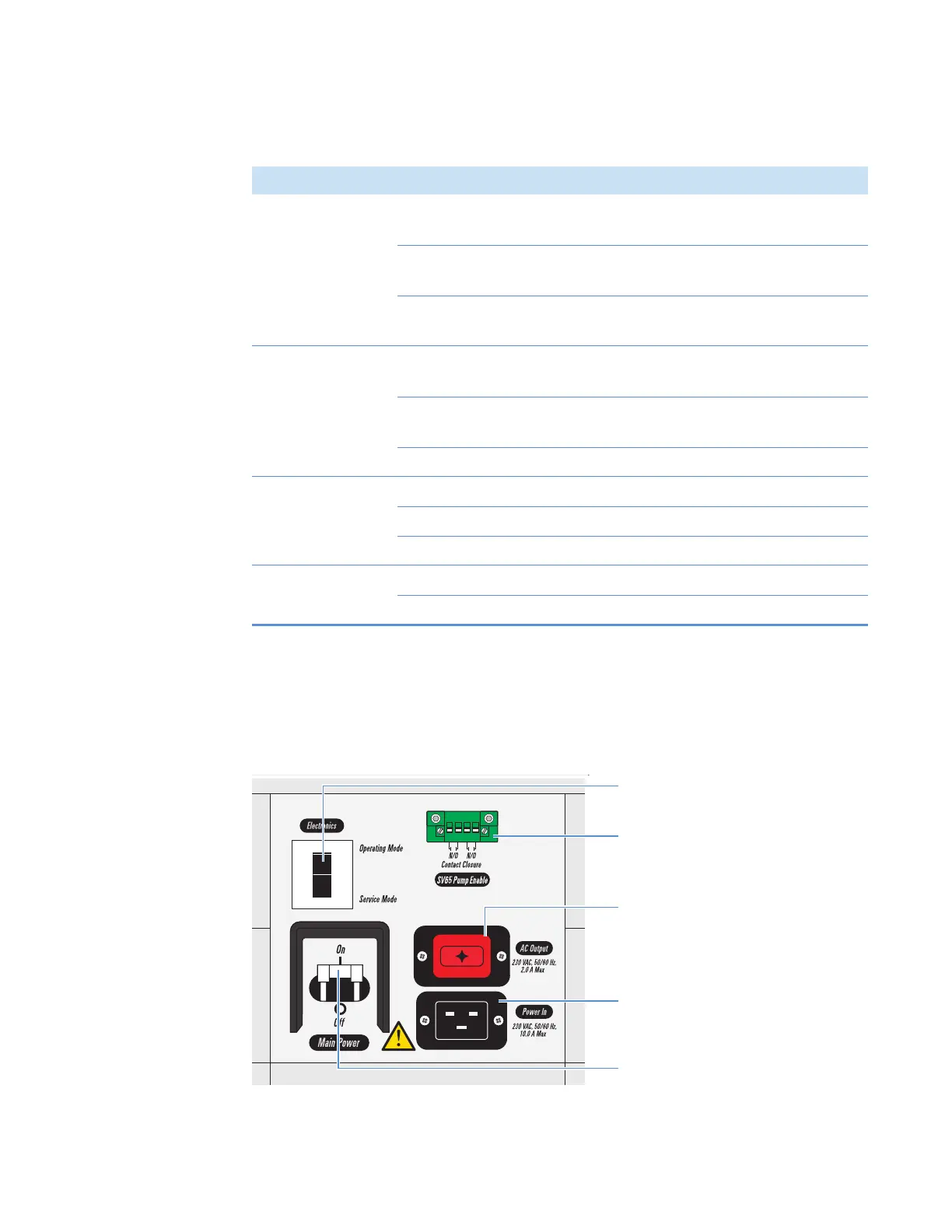

Figure 3. Power entry module
Vacuum Green The vacuum is within the allowable operating
range.
Yellow The system bakeout is in progress or the vacuum
is outside the allowable operating range.
Off The mass spectrometer is either off or in the
process of starting up.
Communication Green The mass spectrometer and data system are
communicating.
Yellow The mass spectrometer and data system are trying
to establish a communication link.
Off The mass spectrometer is off.
System Green The mass spectrometer is on.
Yellow The mass spectrometer is in standby mode.
Off The mass spectrometer is off.
Scan Flashing blue The mass spectrometer is on and scanning.
Off The mass spectrometer is not scanning.
Table 3. LEDs for the TSQ Endura and TSQ Quantiva MSs (Sheet 2 of 2)
LED State Description
Power In receptacle
(230 Vac)
Main Power switch
Electronics service switch
SV65 Pump Enable connector
(forepump on/off control)
AC Output receptacle
(reserved for future use)
