Thermo Scientific TSX Series Installation And Operation Manual

12 | Start Up Ultra Low Temperature Freezers
Start Up
Initial Start Up
To start up the freezer, complete the following steps:
1. Plug the freezer into the power outlet.
2. Turn ON the power switch, located behind the front grille
door, near the upper left corner.
3. Once the freezer is powered ON, the Thermo Scientific
logo is displayed on the front screen. If this is the first time
the unit is being turned ON, an initial setup must be
completed. Press the Start Setup button to initiate the
setup.

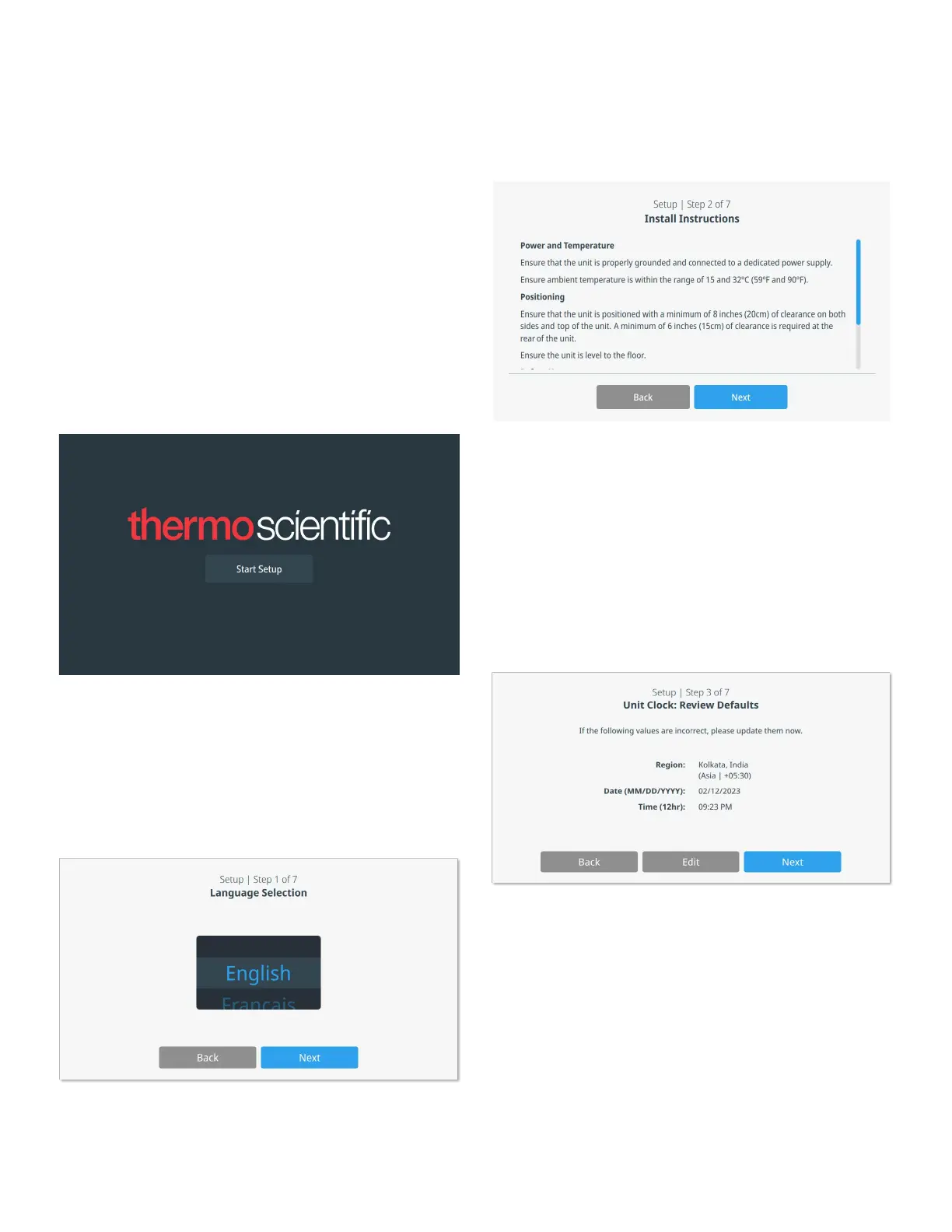

Figure 4. Main Screen
1. The first step of the setup is to select the language.
2. This screen allows you to specify the preferred display
language.
3. Once the language is selected, press the Next button.
Figure 5. Language Selection Screen
Figure 6. Install Instructions Screen
The Install Instructions Screen shows important information
regarding:
1. Power source and ambient temperature conditions.
2. Unit positioning, spacing, and leveling.
3. Initial freezer loading.
4. Press the Next button after reviewing.
Figure 7. Unit Clock Setup Screen
1. This screen highlights the default date and time for the
selected region.
2. Press the Edit button if change is needed. This opens the
Set Region Screen.
3. If not, press the Next button after reviewing.

Thermo Scientific TSX Series Specifications

General

Type	Laboratory Refrigerator
Cooling Type	Forced air cooling
Defrost Type	Automatic
Door Type	Solid or glass door options
Controller Type	Microprocessor
Certifications/Compliance	UL, CE
Energy Consumption	Varies by model; refer to product specification sheet
Voltage	115V
Exterior Dimensions (H x W x D)	Varies by model; refer to product specification sheet
Interior Dimensions (H x W x D)	Varies by model; refer to product specification sheet
Weight	Varies by model; refer to product specification sheet
Shelves	Adjustable shelves
Energy Efficiency	Energy Star certified models available
