Mounting Instructions - ProReact EN Analogue Sensor Cable
For area protection applications, the ProReact EN Analogue Sensor Cable
should be mounted securely to the ceiling, or equivalent, above the area
requiring detection. A suitable xing method is shown in the Figure 7.
When protecting critical pieces of equipment the ProReact EN Analogue
Sensor Cable should be mounted in such a way as to minimise vibration,
accidental damage caused by impact or shock and to minimise heat
transfer from metal parts (for example).
Always ensure a silicone sleeve is placed between the
sensor cable and the mounting bracket or xing.
The recommended spacing between clips is 0.5m.
It may be necessary to place more supports around bends
or corners and other transition areas.
Avoid excessive tension in the sensor cable.
No greater than 50N.
Always use a reel stand or equivalent when unspooling
the sensor cable from the reel.

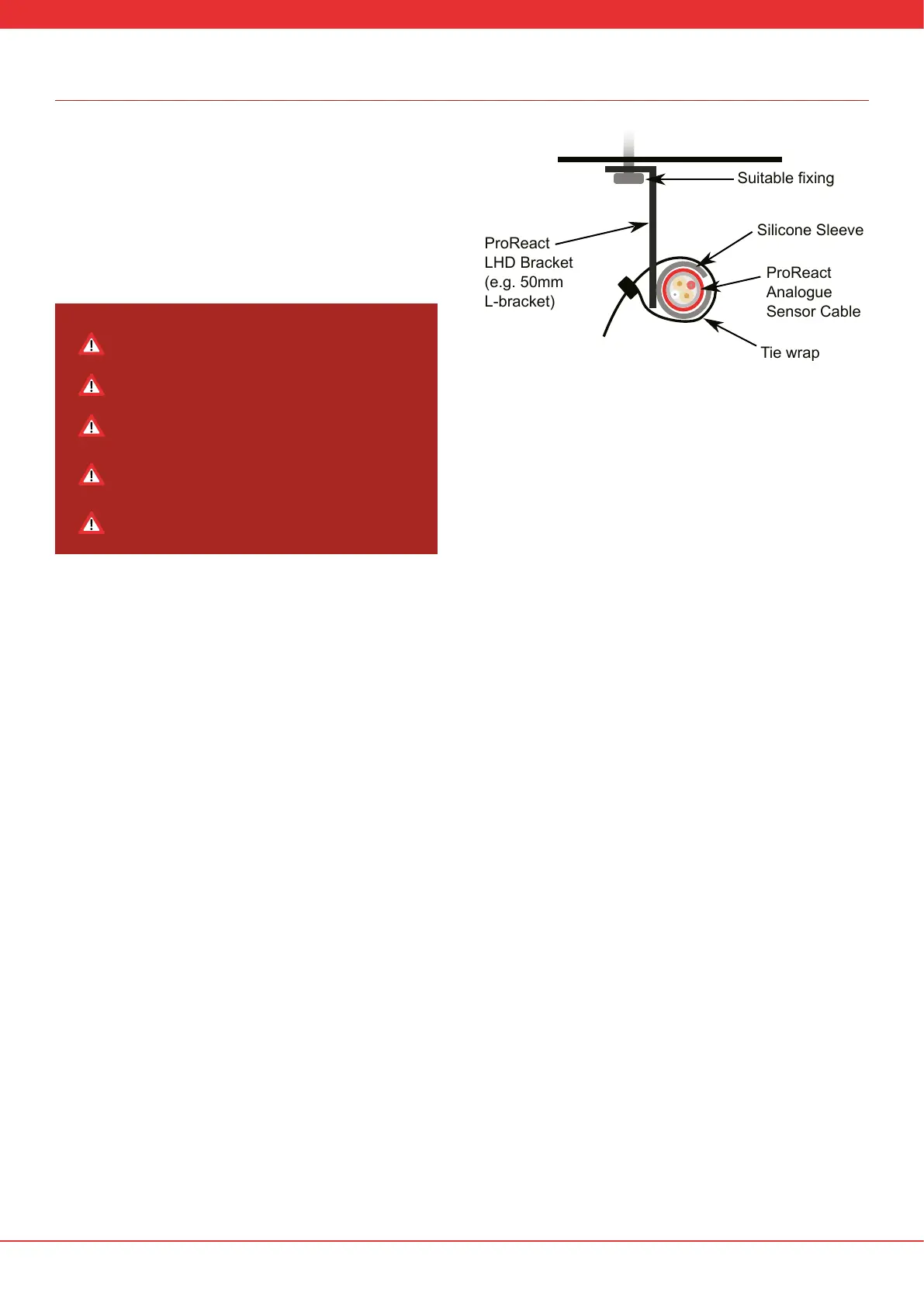

Figure 7: Recommended mounting of the ProReact EN Analogue Sensor cable
on a ceiling or at surface
