Thermocable ProReact EN Analogue - System Introduction and Overview; ProReact EN Analogue LHD System Components

Page 6 of 29 Revision 3.3 Feb 2021
ProReact EN Analogue Installation Manual
Document Ref. PACC-MAN
General Overview
Introduction
Thermocable’s ProReact EN Analogue Linear Heat Detection (LHD)
system comprises of ProReact EN Analogue Linear Heat Detection (LHD)
sensor cable, a ProReact EN Analogue Composite Control Unit and a
ProReact EN Analogue end of line unit. The system oers alternative
overheat protection in a vast range of applications and industries, from
power generation to oil and gas industries.
The ProReact EN Analogue technology oers separate Pre-Alarm and
Alarm outputs in order to maximise functionality, coupled with open
and short circuit detection and discrimination.
Ambient temperature compensation maintains alarm temperature
accuracy. The system is also resettable following an overheat or re
condition if the components are not exposed to temperatures above
the maximum recoverable temperature.
Using a zone or switch monitor, or input/output module, the
ProReact EN Analogue LHD system can easily be interfaced to
an addressable loop. Alternatively it can be directly connected
to the initiating zone of any conventional re alarm control panel
(as shown below).

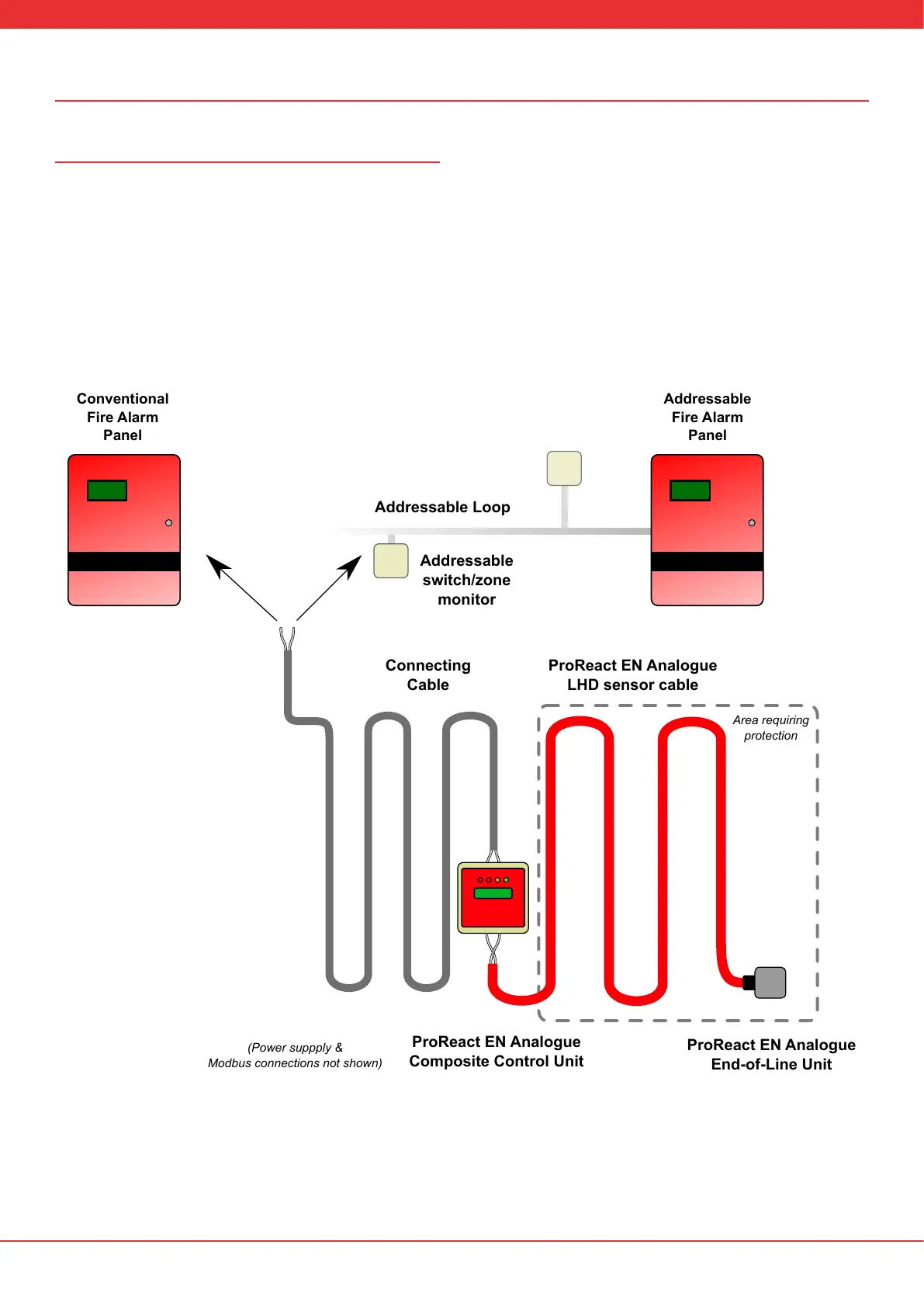

Figure 1. Typical Installation of the ProReact EN Analogue LHD System
Addressable
Fire Alarm
Panel
ProReact EN Analogue
LHD sensor cable
ProReact EN Analogue
End-of-Line Unit
Connecting
Cable
ProReact EN Analogue
Composite Control Unit
Addressable Loop
Addressable
switch/zone
monitor
Conventional
Fire Alarm
Panel
(Power suppply &
Modbus connections not shown)
Area requiring
protection
