Mounting Instructions - ProReact EN Analogue Composite Control Unit
Mounting Instructions - ProReact EN Analogue End-of-Line Unit
The ProReact EN Analogue Composite Control Unit should be wall
mounted (or equivalent) using four screws in each corner of the base of
the enclosure. The xing dimensions are 167mm x 165 mm and shown in
Figure 5.
The ProReact EN Analogue End-of-Line Unit is intended to be mounted
on a at surface using a single screw in the centre of the bracket attached
to the lid of the end-of-line unit enclosure (see Figure 6).
Recommended Screw Size
Minimum screw length 20mm
Maximum thread diameter 4.5mm
Maximum head diameter 7mm
Do not mount the end-of-the-line directly onto a
metal surface.
Recommended Screw Size
Minimum screw length 25mm
Maximum thread diameter 5mm
Maximum head diameter 15mm

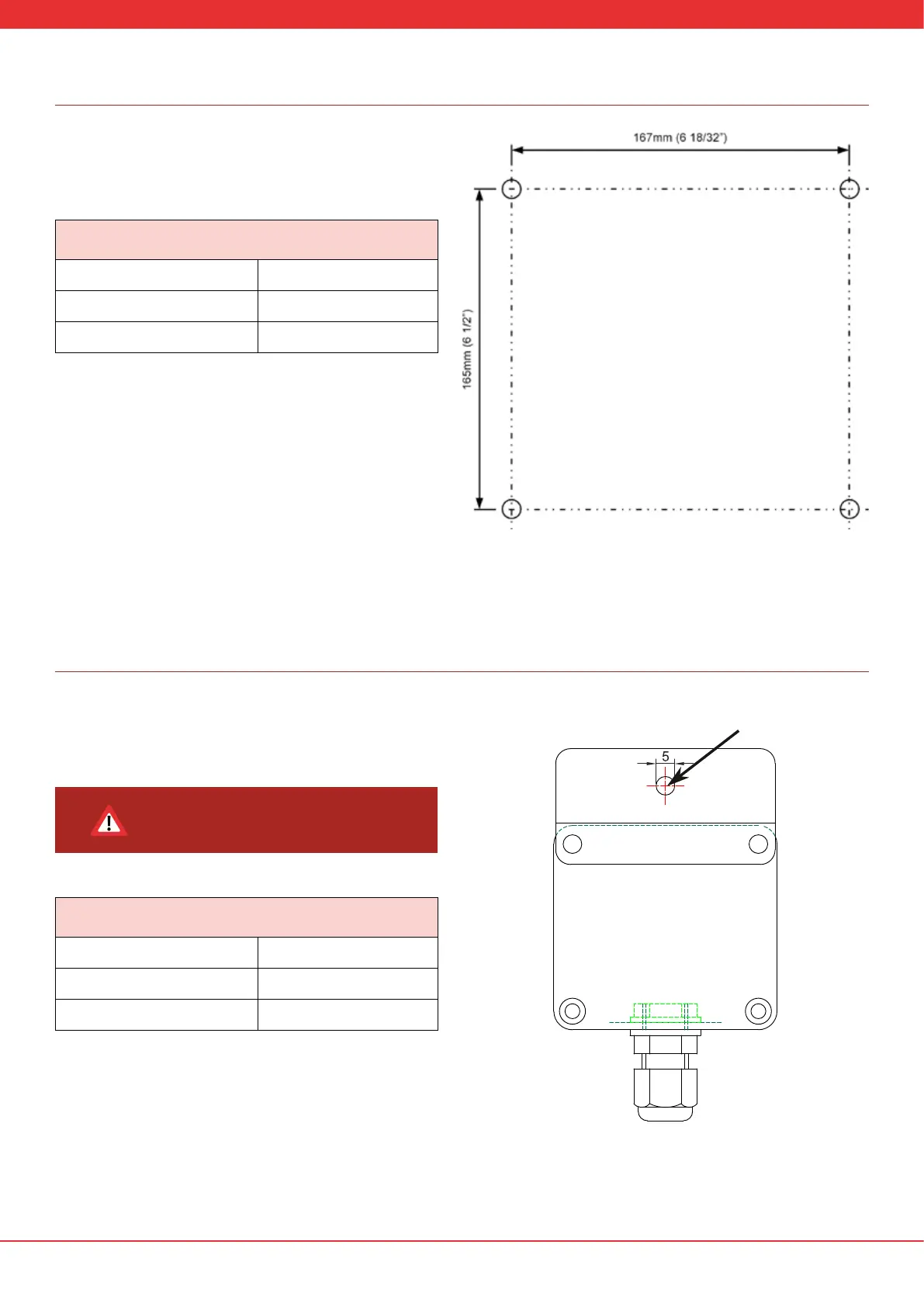

Figure 5: Fixing dimensions for mounting the ProReact EN Analogue
Composite Control Unit
Figure 6: Fixing dimensions for mounting the ProReact EN Analogue
End-of-line Unit
Mounting hole for
end-of-line unit
