Thermocable ProReact EN Analogue - Page 8

Page 8 of 29 Revision 3.3 Feb 2021
ProReact EN Analogue Installation Manual
Document Ref. PACC-MAN
Alarm Temperatures (cont.)
Illustrative examples for the other ProReact EN Analogue Composite Control Unit settings can be found in Appendix A.

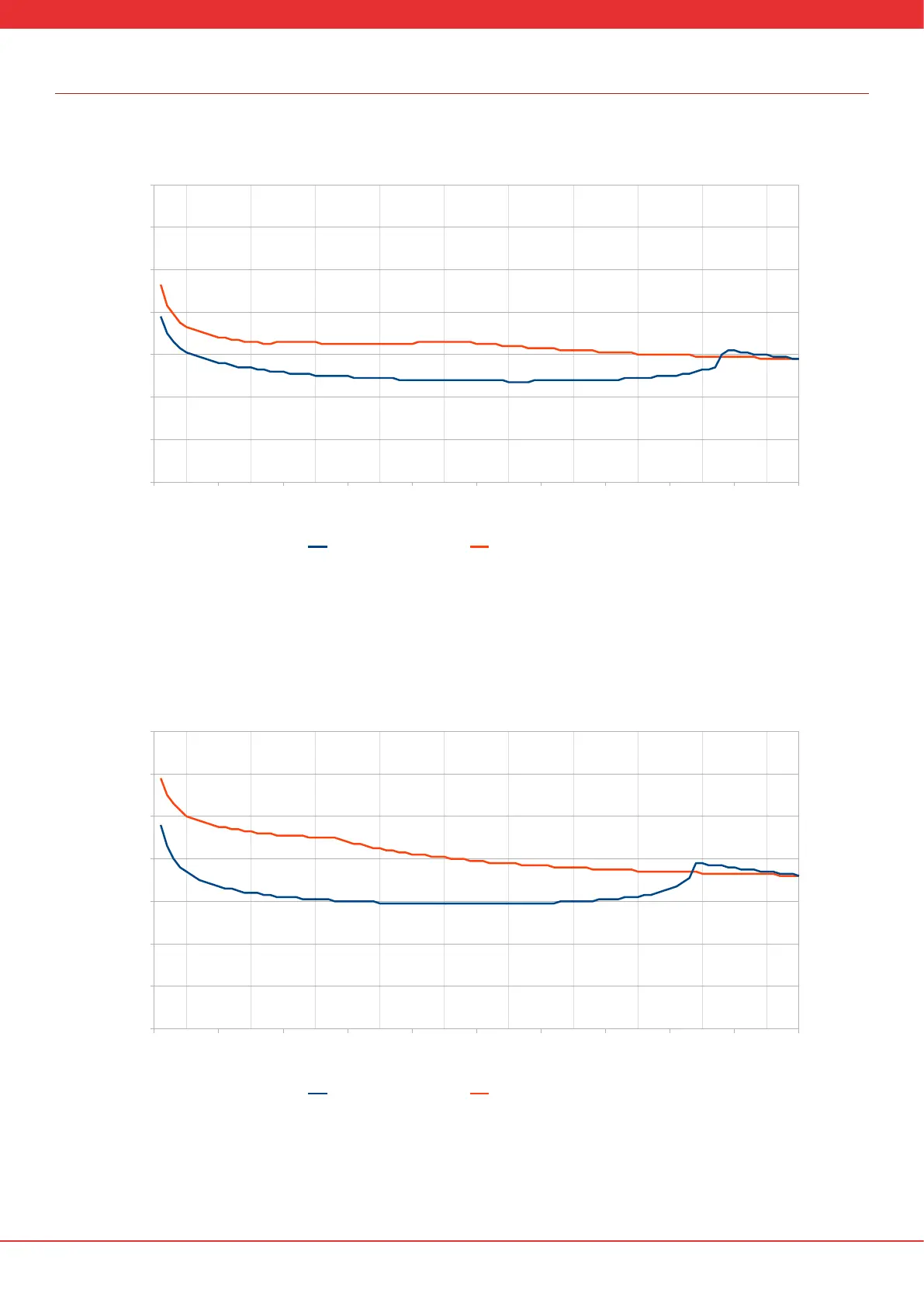

Chart 1 - Expected temperature required for an alarm in relation to percentage of ProReact EN Analogue LHD Cable in Class A1I/A2I Setting
Chart 2 - Expected temperature required for an alarm in relation to percentage of ProReact EN Analogue LHD Cable in Class BI Setting
0 10 20 30 40 50 60 70 80 90 100
0
20
40
60
80
100
120
140
C la ss A 1 I/A 2 I
(Typical Application Tem perature of 25 deg C)
Typical Application Temp (25 Deg C) Max Application Temp (50 Deg C)
T e m p e ra tu re re q u ire d fo r a la rm (d e g C )
0 10 20 30 40 50 60 70 80 90 100
0
20
40
60
80
100
120
140
C la s s B I
(Typical Application Tem perature of 40 deg C)
Typical Application Temp (40 Deg C) Max Application Temp (65 Deg C)
T e m p e ra tu re re q u ire d fo r a la rm (d e g C )
% of ProReact EN Analogue cable exposed
% of ProReact EN Analogue cable exposed
