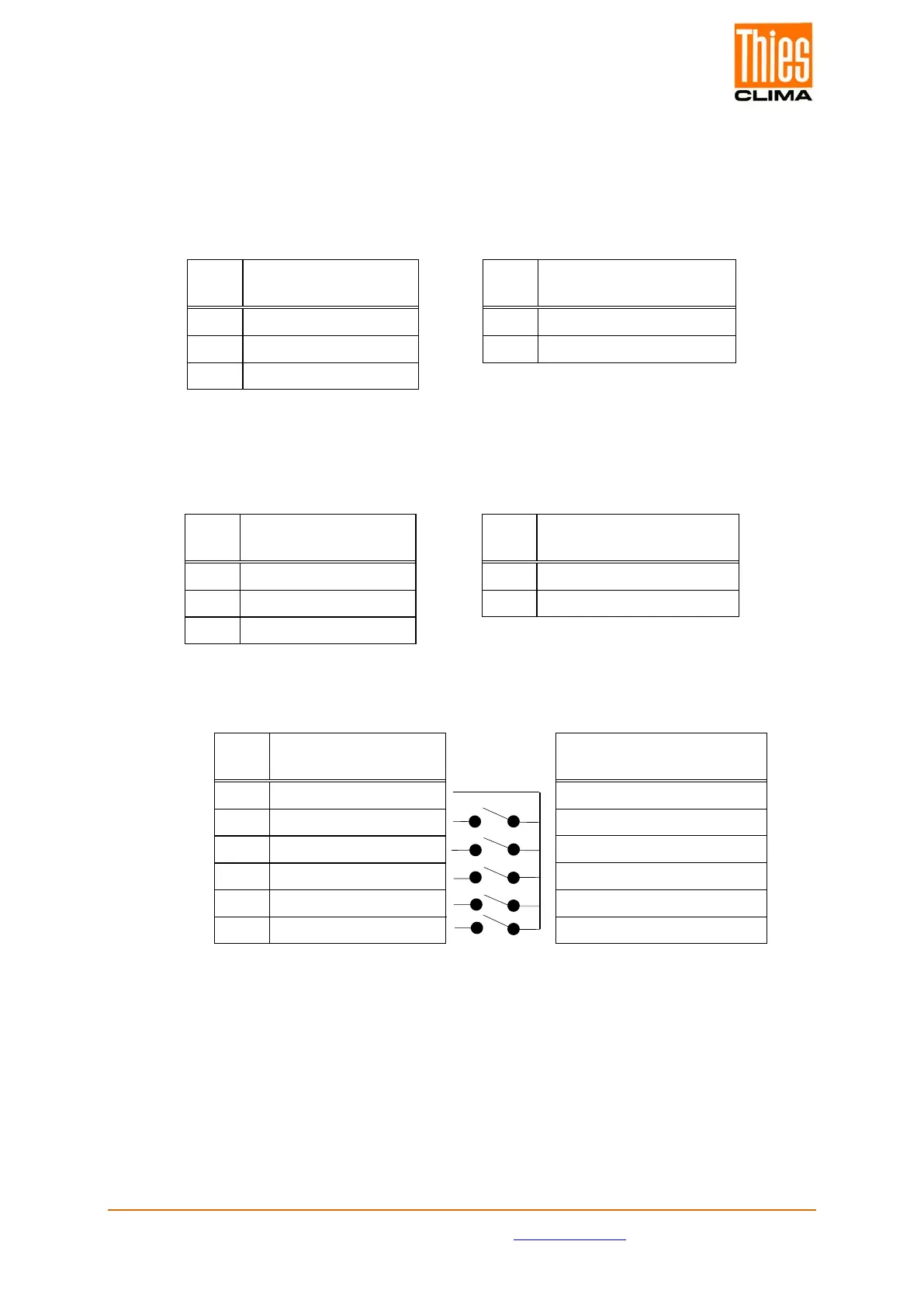

6.2.4 Connection Power Supply
• For Winddisplay 4.3251.00. x0x
Des.
Clamp connector:
AC - Power
Des.
Clamp connector:
low voltage Power
PE
Protective conductor
or
1
24V AC/DC
N 230V AC 2 24V AC/DC
L 230V AC
• For Winddisplay 4.3251.01.x0x
Des.
Clamp connector:
AC - Power
Des.
Clamp connector:
low voltage Power
PE
Protective conductor
or
1
24V AC/DC
N 115V AC 2 24V AC/DC
L
115V AC
6.2.5 Connection Remote Control
Des.
Clamp connector:
Remote
Remote control
--
GND
GND
-- Down Down
-- Up Up
--
Enter
Enter
-- Mode Mode
-- Res. Reset / course *
*Double pin assignment of the clamp connector „Res.“.
Mode 7-0 (see chapter 9) reset function
Mode 7-1 (see chapter 9) course
Enter current course of the ship:
Switch OFF = course forward
switch ON = course backward
