3.1 „Rel.“ Wind (Relative Wind)
• Definition refer to chapter 4
Wind velocity (WV):
The wind velocity is shown as an instantaneous value on the three-digit red LED display.
Units of measurement are m/s, km/h, kn and Beaufort. A red illuminated status status LED
shows the selected unit of measurement.
The values measured by the wind velocity transmitter are directly consulted without
conversion to display the wind velocity.
Wind direction (WD):
A circular arrangement of 72 rectangular LED’s indicates the wind direction and its variation.
Display of the wind direction relates to the ship’s longitudinal axis, whereas 0° is assigned
to the ship’s bow. The values measured by the wind direction transmitter are used directly
without conversion.
• The wind direction is indicated by means of a green LED on the starboard side.
• The wind direction is indicated by means of a red LED on the port side.
• With 0 and 180°, indication takes place via a yellow LED.
• The variation is shown by means of an LED band, in “green” on the starboard side
and in “red” on the port side, in which case the LED that marks the wind direction, in
the LED band, lights up yellow.
• Operating mode „Rel. Wind“ is indicated by a status LED (Rel.).
Scale is 0...180° for starboard and 0...180° for port side.

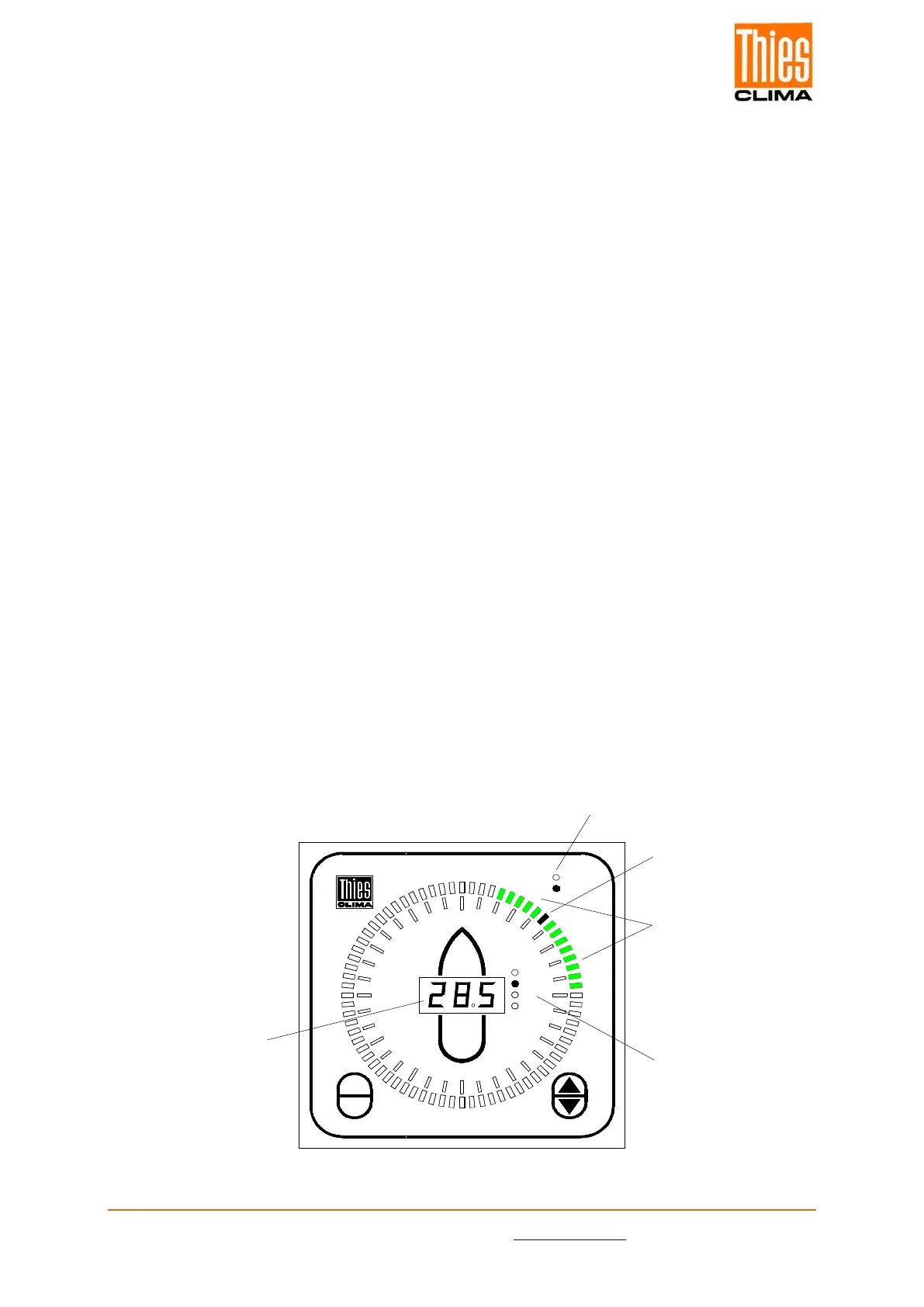

Figure 1: Display
MODE
ENTER
0
90
120
150
180
150
120
90
60
30
kn
Bft
True
Rel.
m /s
km /h
30
60
Status LED's
Wind " True / Rel. "
GREEN
WD variation
YELLOW
Status LED's
Dimension
RED
( port side )
WG - Display
YELLOW
( Starboard side )
WD instantaneous / delayed
WD variation
WD instantaneous / delayed
