ThinkPad E550 - Replacing the dc-in;USB-Connector Board

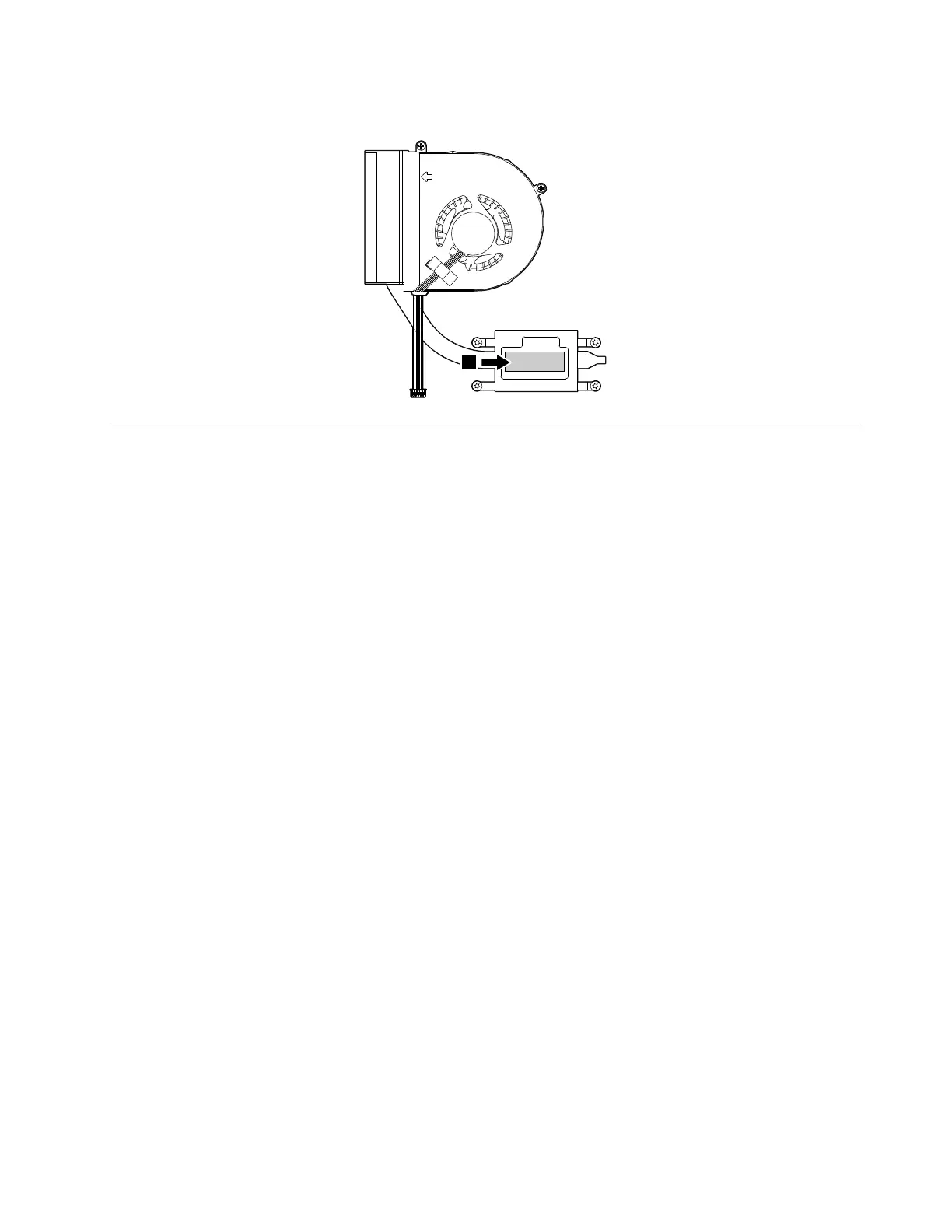

Formodelswithanintegratedthermalpipe
b
1140dc-in/USB-connectorboardwithcable
Foraccess,removetheseFRUsinorder:
•“1020Batterypack”onpage66
•“1030Largebottomcover”onpage67
•“1050Opticaldriveoroptical-drivebaybezel”onpage69
•“1070Harddiskdriveassemblyorsolid-statedriveassembly”onpage70
•“1110Keyboard”onpage73
•“1120Keyboardbezelassembly”onpage75
Removalstepsofthedc-in/USB-connectorboardwithcable
Note:Thesystemboardofthecomputerthatyouareservicingmightbedifferentfromtheoneinthe
followingillustrations.
