2.10 QUICK - TACH
The quick - tach, which is standard equipment, allows
changing from one attachment to another quickly without
having to remove bolt or pins.

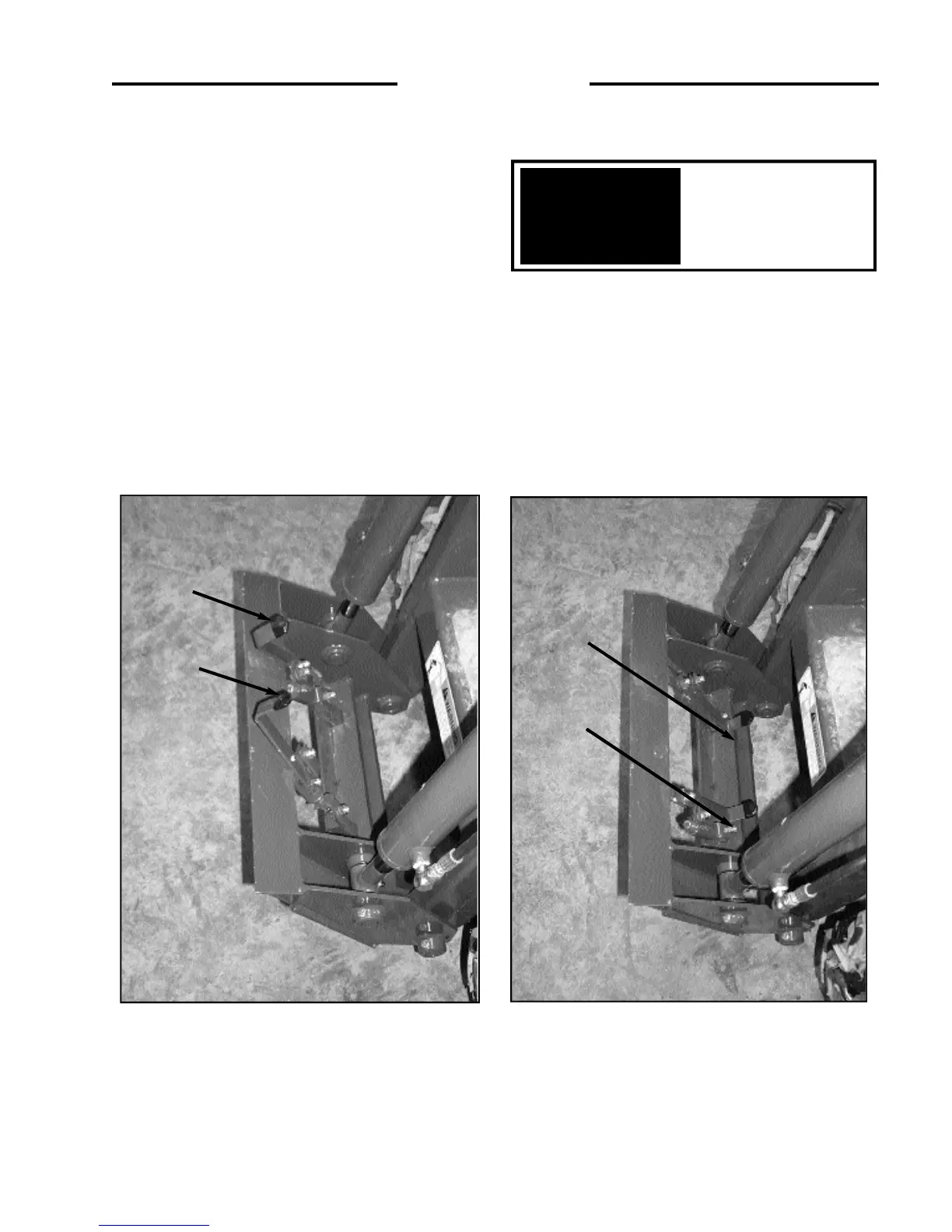

To operate, (Fig. 2.11A), lift the locking lever (1) up to
completely retract the locking pins. Tilt the quick - tach
frame forward with the bucket tilt cylinders and drive into
the attachment. Retract the bucket tilt cylinders which will
line up the bottom of the attachment with the quick - tach
lock pins. Shut off the engine.
Push the locking lever fully down (Fig. 2.11B item 1)
extending the lock pins through the attachment and securing
the attachment.
Before operating the attachment check that the locking pins
are correctly engaged.
2 CONTROLS
After hook up to the
attachment check to be
sure the pins and locking
levers are fully engaged.
IMPORTANT
C3245
C3246
Fig. 2.11B
Fig. 2. 11A
1
1
1
1
